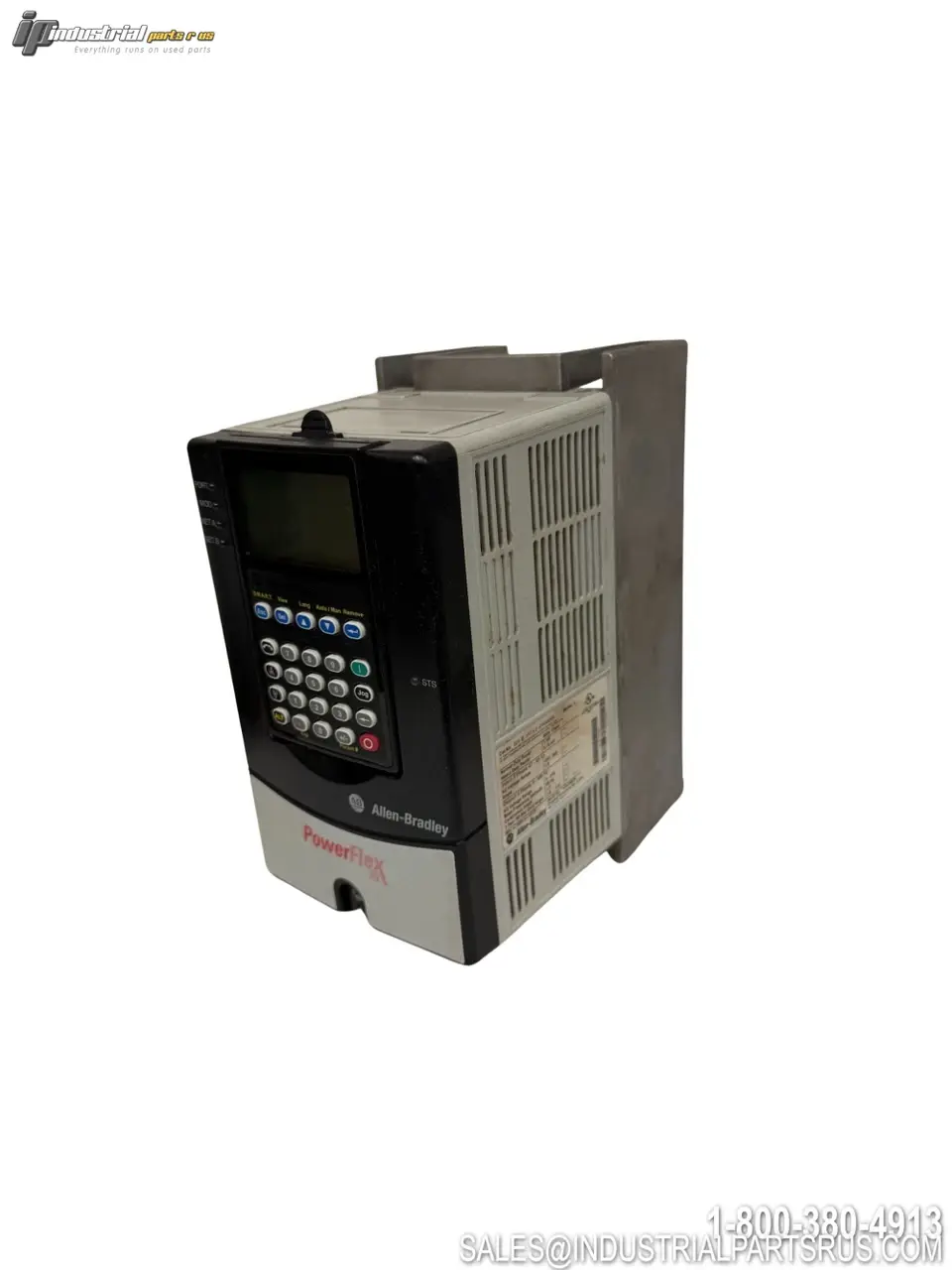

USED ALLEN-BRADLEY 20A E 1P7A 0 AYNNNNN

The Allen-Bradley 20AE1P7A0AYNNNNN is a PowerFlex 70 series adjustable frequency AC drive (VFD) rated for 600V AC three-phase input with a 1 HP (0.75 kW) normal-duty output at 1.7 amps continuous. It features a panel-mount IP20/NEMA Type 1 enclosure (Frame A), an integral brake IGBT, a blank cover (no HIM), standard control, no internal EMC filter, and no communication module. The PowerFlex 70 supports V/Hz, sensorless vector, and Vector control with FORCE Technology for demanding industrial motor speed and torque control applications. No bypass is included.
Specification
Value
Brand
Allen-Bradley
Model / Part Number
20A E 1P7A 0 AYNNNNN
Platform / Product Family
PowerFlex 70
Product Type
Variable Frequency Drive (VFD) / AC Drive
Input Voltage
432–660V AC (Nominal 600V AC)
Output Voltage
0–575V AC
Phase
3-Phase
Input Amperage
1.9 A
Output Current (Continuous / ND)
1.7 A
Output Current (1 min overload)
1.9 A
Output Current (3 sec overload)
2.6 A
Normal Duty (ND) Power Rating
1 HP / 0.75 kW
Heavy Duty (HD) Power Rating
0.75 HP / 0.55 kW
Frame Size
A
Enclosure Type
IP20 / NEMA UL Type 1 (Panel Mount)
Mounting Type
Panel Mount
Output Frequency Range
0–400 Hz
HIM / Operator Interface
Blank Cover (No HIM)
Brake IGBT
Yes (Integral)
Internal Brake Resistor
No
EMC / RFI Filter
None (Not Filtered)
Communication Module
None
Control Type
Standard Control (V/Hz, Sensorless Vector)
Feedback
No Feedback
Documentation Included
English User Manual & Multi-Language Quick Start
ND Overload Capability
110% for 60 sec; 150% for 3 sec
HD Overload Capability
150% for 60 sec; 200% for 3 sec
Operating Temperature
0 to 50°C
Analog Inputs
2
Analog Outputs
1
Digital Inputs
6
Relay Outputs
2
PTC Input
1
Manufacturer
Rockwell Automation / Allen-Bradley
We warranty all items for 30 days from date of purchase.
