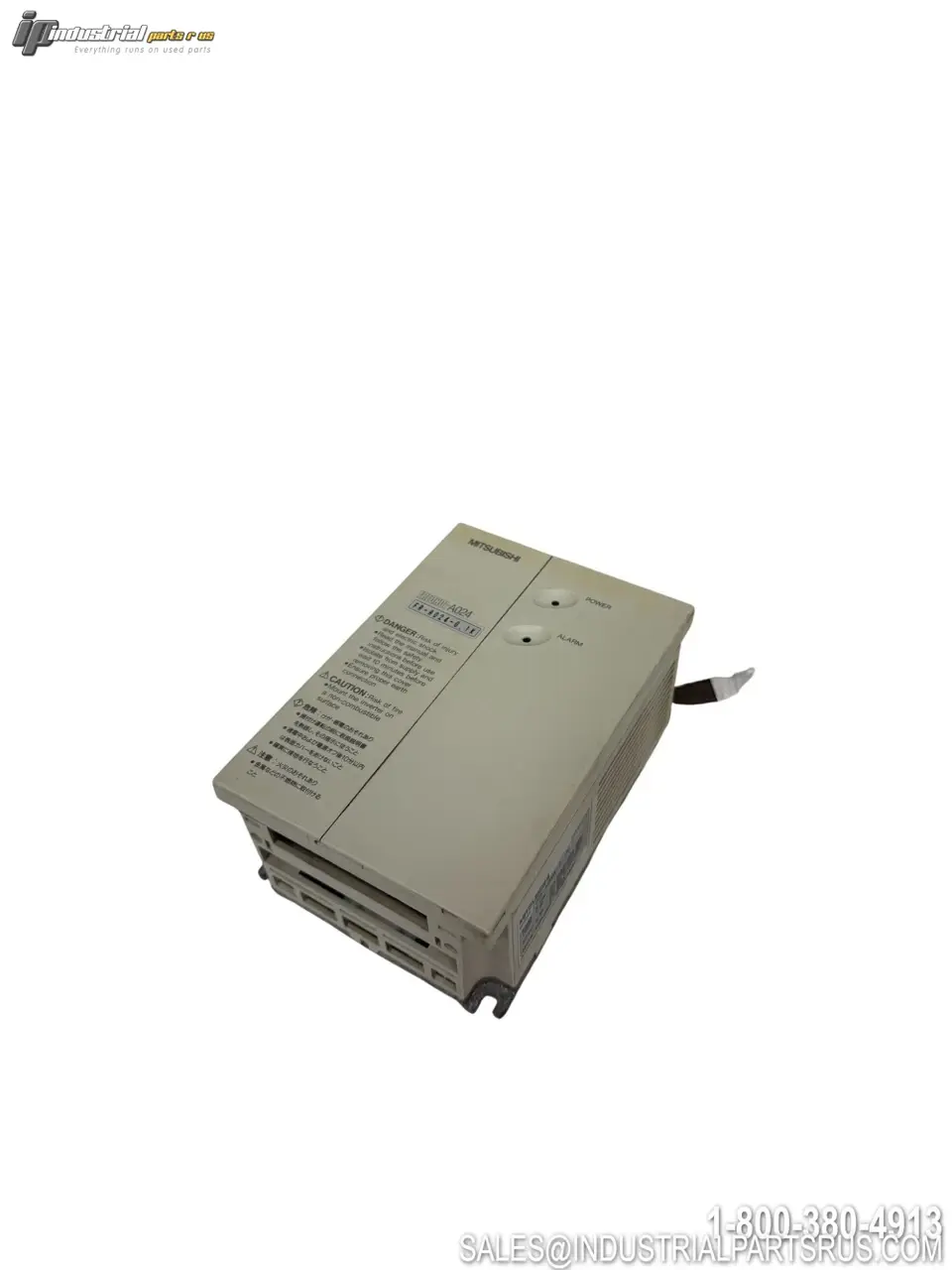

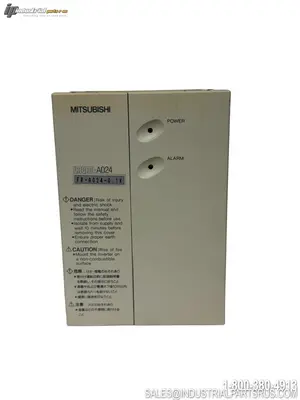

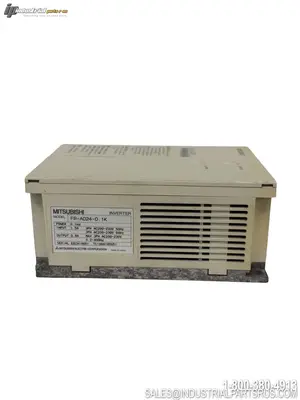

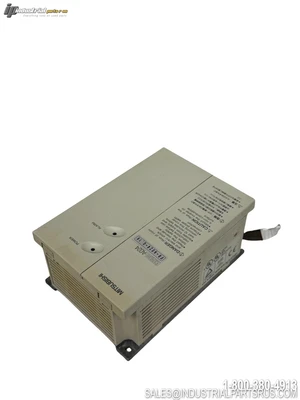

USED MITSUBISHI FR-A024-0.1K

The Mitsubishi FREQROL FR-A024-0.1K is a compact general-purpose Variable Frequency Drive (VFD/inverter) from Mitsubishi Electric's A024 series, designed to provide precise speed and torque control for three-phase AC motors. Rated at 0.1 kW (approximately 1/8 HP), this unit accepts 200–230V three-phase input and delivers a rated output current of 0.8A with an IP20 enclosure for industrial use. The FR-A024 series features magnetic flux vector control, IGBT-based Intelligent Power Module (IPM) technology for low acoustic noise, and a selectable stall prevention (tripless) function for reliable operation in demanding applications.
Specification
Value
Brand
Mitsubishi Electric
Model / Part Number
FR-A024-0.1K
Series
FREQROL A024
Product Type
VFD / Inverter
Rated Power Output
0.1 kW (0.125 HP / 1/8 HP)
Input Voltage
200–230 VAC, 3-Phase
Output Voltage
200–230 VAC, 3-Phase
Input Current (Rated)
1.5 A
Output Current (Rated)
0.8 A
Number of Phases
3-Phase
Input Frequency
50 Hz / 60 Hz
Input Voltage Tolerance
180V – 253V (±10% nominal)
Input Frequency Tolerance
±5%
Overload Rating
150% for 60 seconds; 200% for 0.5 seconds
Control Method
Magnetic Flux Vector Control (V/F + Vector)
Starting Torque
200–300% (at low speed, vector mode)
Switching Device
IGBT (Intelligent Power Module - IPM)
Enclosure Type
IP20
Cooling Method
Self-Cooling (Natural Convection)
Terminal Screw Size
M3.5
Voltage Class
200V Class
Suitable Applications
Conveyors, Pumps, Fans, Machine Tools
Product Status
Discontinued (2008) — Legacy Product
Suggested Replacement
Mitsubishi FR-E800 Series
We warranty all items for 30 days from date of purchase.
