USED MULLER OCTOPUS 1825B

Manufacturer Information
Muller / Octopus
Muller is known for automated stretch-wrapping and load-containment equipment used in warehousing, distribution, manufacturing, food and beverage, consumer goods, and other high-volume packaging operations. The Octopus rotary ring stretch wrapper design rotates the film carriage around a stationary pallet load, making it well suited for automatic end-of-line packaging systems.
The Octopus 1825B is designed for high-throughput automatic pallet wrapping and load stabilization prior to storage, handling, or shipment.
Description

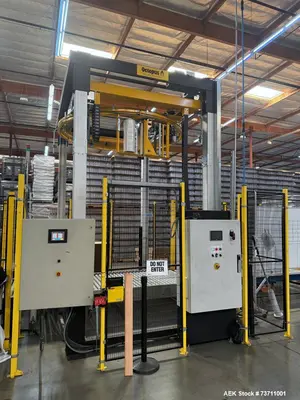

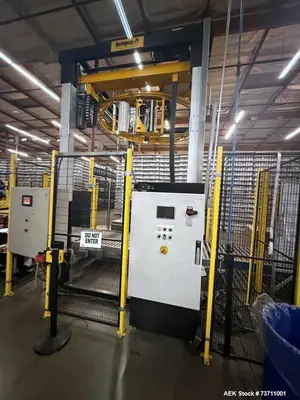

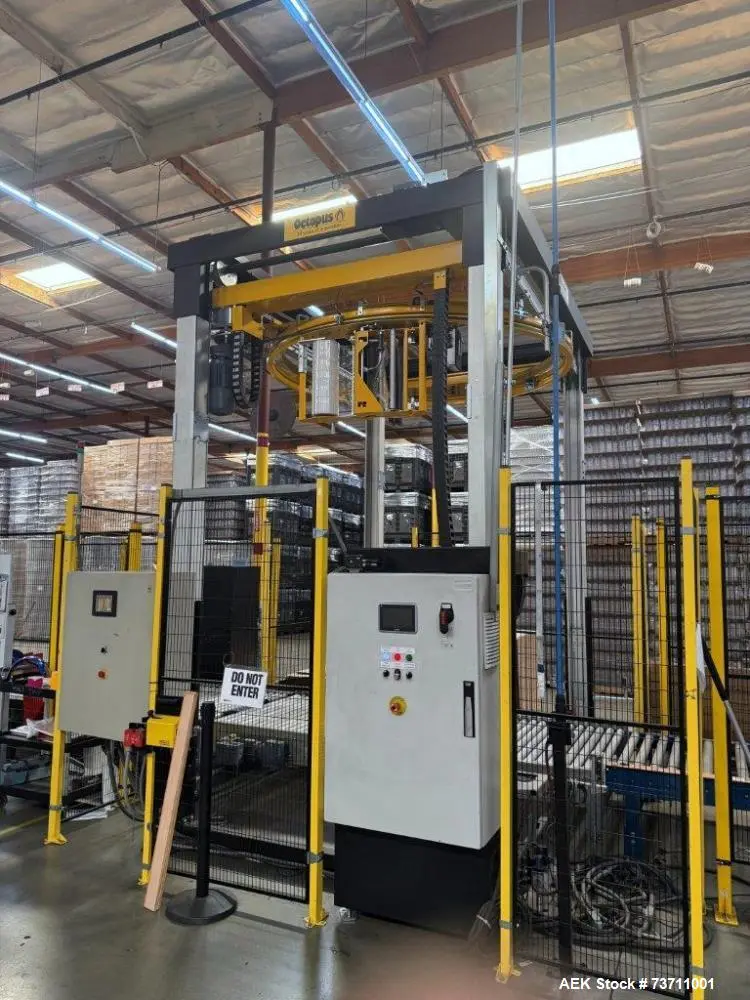

Available for sale is a used Muller Model Octopus 1825B automatic rotary ring stretch wrapper capable of production speeds up to approximately 100 loads per hour, depending on load dimensions, film pattern, operating configuration, and line conditions.
The system accommodates pallet loads ranging from approximately 36" to 48" wide x 36" to 80" long x 28" to 80" high, allowing it to handle a broad range of palletized products.
The rotary ring operates at approximately 25 to 40 RPM, wrapping stretch film around the stationary palletized load. This design is particularly useful for high-speed operations and loads where rotating the pallet itself may be undesirable.
Film capacity is approximately 20" wide x 10" diameter.
Designed for integration into automatic packaging and material-handling lines, the Muller Octopus 1825B can provide consistent stretch-film application for load containment, stabilization, warehouse handling, and transportation preparation.

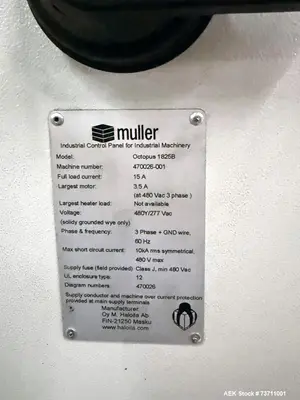

Electrical requirements are 480V, 3-phase, 60 Hz.
Serial Number: 470026-001
Specifications

Specification
Details

Manufacturer
Muller

Model
Octopus 1825B

Equipment Type
Automatic Rotary Ring Stretch Wrapper

Maximum Speed
Up to 100 Loads/Hour

Load Width Range
36"–48"

Load Length Range
36"–80"

Load Height Range
28"–80"

Film Width
20"

Maximum Film Diameter
10"

Rotary Ring Speed
25–40 RPM

Electrical
3/60/480V

Serial Number
470026-001

Condition
Used

Typical Applications

Automatic pallet stretch wrapping
End-of-line packaging
Pallet load stabilization
Shipping preparation
Warehouse load containment
High-volume pallet wrapping
Distribution-center packaging
Automated packaging lines
Unit-load securing
Manufacturing line integration
Finished-goods packaging
Transportation preparation

Products This Stretch Wrapper Could Be Used For

Corrugated cases
Cartoned food products
Beverage cases
Bagged products
Bottled and canned products
Consumer packaged goods
Pet food cases and bags
Household products
Industrial components
Building materials
Bulk packaged products
Other compatible palletized loads

Actual production speed and load compatibility depend on pallet dimensions, load stability, weight, film characteristics, wrap pattern, conveyor configuration, controls, and upstream/downstream equipment.
Frequently Asked Questions

How fast can the Muller Octopus 1825B operate? The system is rated for speeds up to approximately 100 pallet loads per hour, depending on the load, wrap pattern, film, and line configuration.

What pallet-load sizes can it accommodate? Stated load dimensions range from approximately 36"–48" wide x 36"–80" long x 28"–80" high.

How does a rotary ring stretch wrapper work? The palletized load remains stationary while the rotary ring carries stretch film around the load, providing automatic film application without rotating the pallet itself.

What size stretch film does it use? The machine is configured for film approximately 20" wide with rolls up to 10" in diameter.

Can the Octopus 1825B be integrated into an automatic packaging line? Yes. Rotary ring stretch wrappers are commonly incorporated into conveyorized end-of-line systems after case packing and palletizing. Compatibility with existing conveyors and controls should be verified.

Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with rigging and loading coordination, domestic and international freight, and logistics planning for stretch wrappers and other end-of-line packaging machinery.
