USED TETRASOLV 5212-S-1

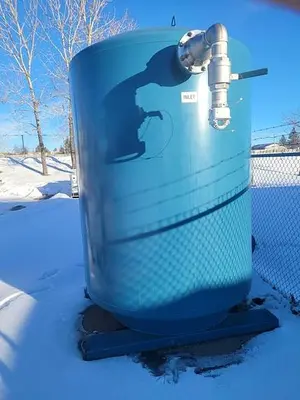

Tetrasolv Model HPAF-5000 aqueous phase filter system with a total media volume of 196 cubic feet (≈1,465 gallons). Constructed of carbon steel and internally lined with Sherplate 600 (NSF Approved) for chemical resistance. Features 304 stainless steel bottom underdrain and upper distributor header, 14" x 18" top manway, neoprene gaskets, and 4" service inlet/outlet laterals. Designed for use with up to 5,000 pounds of activated carbon and capable of flow rates up to 165 GPM. Rated for operation up to 75 PSI and 150°F. Operating weight approx. 17,900 lbs.

Stock Number: 5991354
Manufacturer: Tetrasolv
Model: 5212-S-1
Serial Number: 5212-S-1
Capacity: 196 Cubic Feet
Media Capacity: 5,000 lbs. Activated Carbon
Lining: Sherplate 600 (NSF Approved)
Flowrate: 165 GPM
Maximum Pressure: 75 PSI
Previous Use: Water Treatment
Basis: FOB
