Filter, Receiving Hopper, Shick, 304 Stainless Steel, Airlock Valve, #5991160

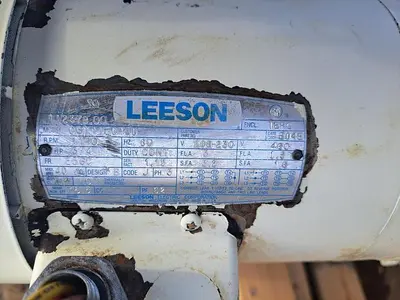

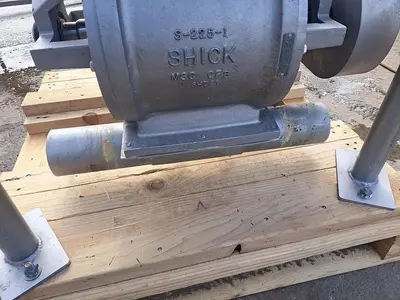

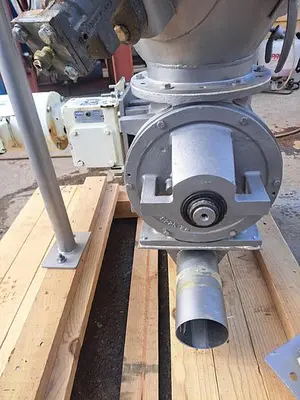

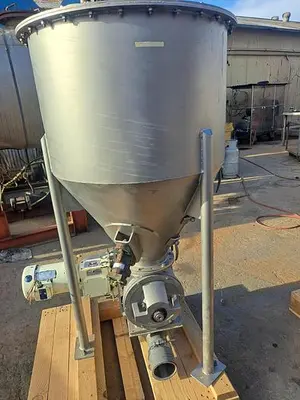

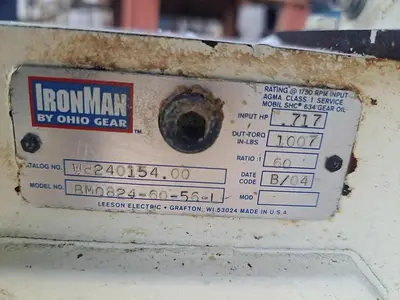

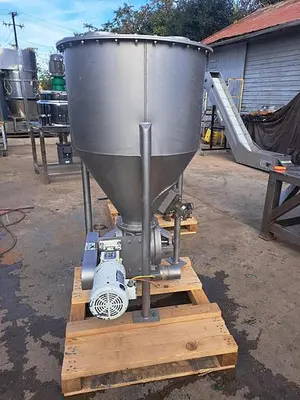

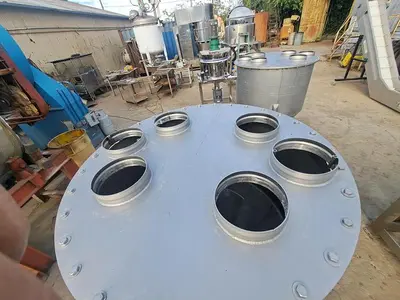

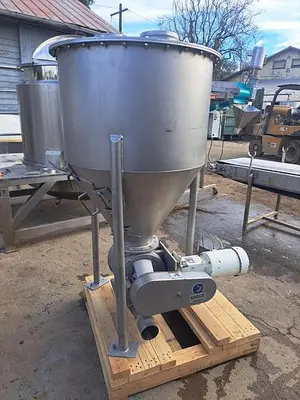

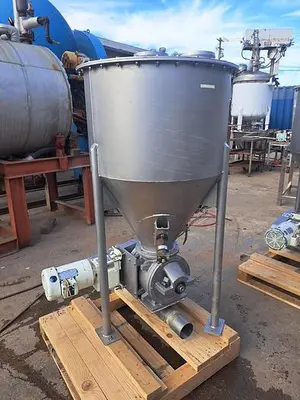

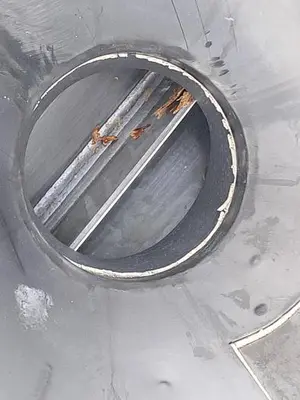

Powder receiving hopper, features stainless steel cone bottom hopper and rotary airlock valve, 8” Shick Steve 304 Stainless Steel rotary blow-through style valve. Equipped with a 4” pneumatic conveying adapter through its end plates. Powered by a 0.75 HP motor with 208/230V, 3-phase, 60 Hz configuration, the unit operates at 1140 RPM, utilizing a gear reducer with a 60:1 ratio to achieve a final speed of 20 RPM. Hopper measures 30"diameter x 20" straight side, with cone bottom measuring 30" x 20" high, tapering to bottom diameter 8". Volume of hopper is approximately 12 cubic feet / 89 gallons.

Stock Number: 5991160
Manufacturer: Shick
Year: 2004
Serial Number: W8240154.00
Materials of Construction: 304 Stainless Steel
Basis: FOB
