USED 2004 IRON MAN BMQ824-60-56-L
Overview
Description

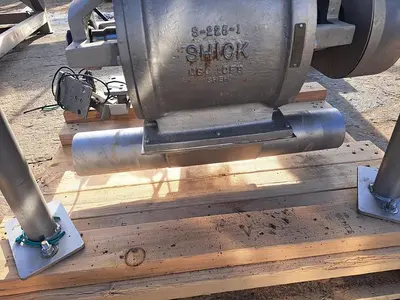

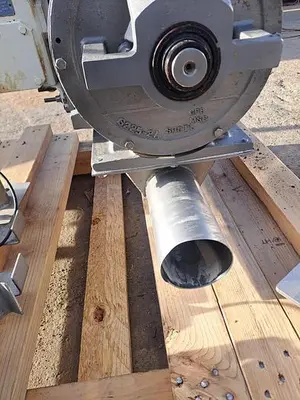

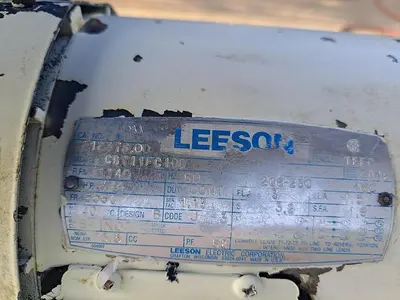

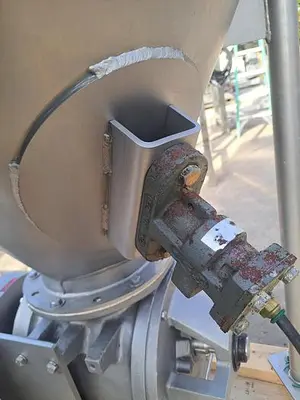

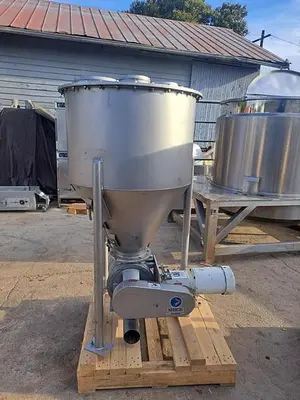

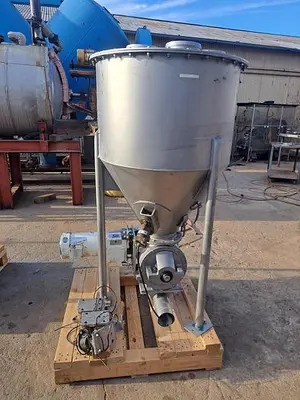

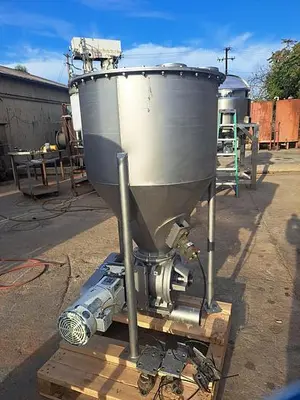

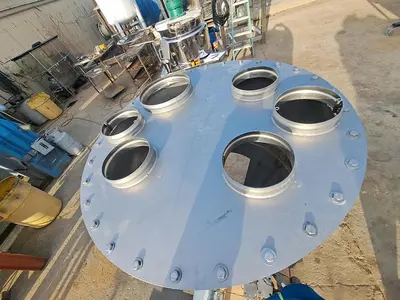

Powder receiving hopper to include stainless steel hopper and rotary airlock valve, 8” Shick Steve 304 Stainless Steel Rotary Valve blow-through style valve. Equipped with a 4” pneumatic conveying adapter through its end plates. It includes a stainless steel 30” diameter X 20" straight side, plus 22" cone bottom hopper, providing approximately 12 cubic feet of capacity. The hopper features six 6” top ports, allowing for installation of cloth dust collection bags, along with a bolted top lid and a side access door (measuring 12.75" high x 11.50" x 6"). Powered by a 0.75 HP motor with 208/230V, 3-phase, 60 Hz configuration, the unit operates at 1140 RPM, utilizing a gear reducer with a 60:1 ratio to achieve a final speed of 20 RPM.
Specifications
Stock Number: 5991156
Manufacturer: Iron Man

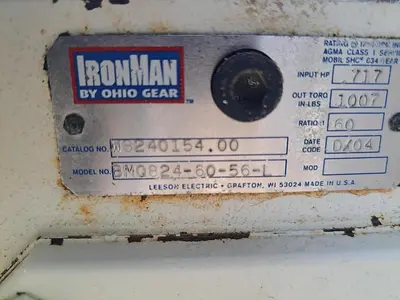

Model: BMQ824-60-56-L
Year: 2004
Materials of Construction: 304 Stainless Steel
Hopper Dimensions: 30" Diameter X 20"Straight Side, Plus 22" Cone
Basis: FOB
