NEW BODOR K2

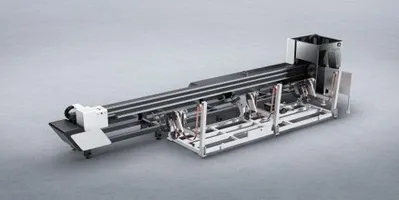

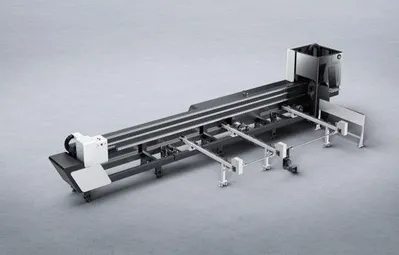

Bodor K2 Tube Laser Cutting Machine Specifications
The Bodor K2 is an entry-level fiber laser tube cutting machine designed for efficient, easy-to-operate metal tube cutting with multiple power options and high precision.

Key Specifications
kempler.com
kempler.com

Tube Diameter Range: 8–230 mm (round, square, rectangular, oval)

Square Tube Side Length: 8–230 mm

Maximum Tube Length: 6477 mm / 9195 mm (6500 mm / 9200 mm in some listings)

Maximum Tube Weight: 300 kg

Laser Power Options: 1500 W, 3000 W, 6000 W

X-Axis Max Speed: 90 m/min

Y-Axis Max Speed: 60 m/min

X/Y Axis Positioning Accuracy: 0.05 mm/m

X/Y Axis Repositioning Accuracy: 0.03 mm

Max Chuck Rotation Speed: 90 rpm

Max Acceleration: 1 G

Effective Cutting Diameter: φ8–φ230 mm (square/rectangular equivalent)

Performance & Features
kempler.com
kempler.com

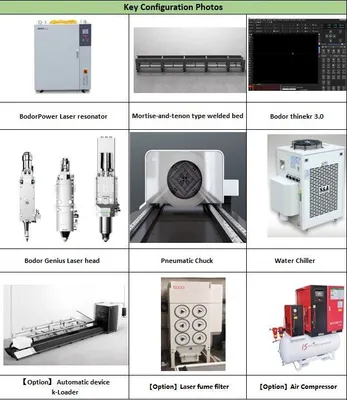

Fast Clamping: Pneumatic chucks with 2‑second clamping response for quick setup.

High-Speed Cutting: Enhanced by high-performance busbar servo motors and optimized edge searching for precision.

Material Utilization: Shortest possible tailstock (≈45 mm) to minimize waste.

Special Jaws: For specific clamping positions to improve safety and accuracy.

Automatic Loading/Unloading: K-Trans and K-Loader options for cyclic loading of round, square, rectangular, oval tubes, channel steel, and I-beams.

Bodor Lightning: Lightning-quick piercing process integrated with BodorGenius for faster cutting.

Expert High Speed Cutting Database: Improves air cutting efficiency by up to 37% for carbon steel.

BodorThinker Software: For machine control and monitoring.

Warranty: 5 years on new units.
