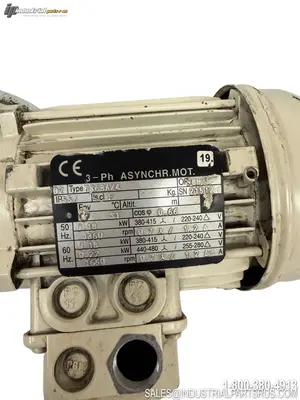

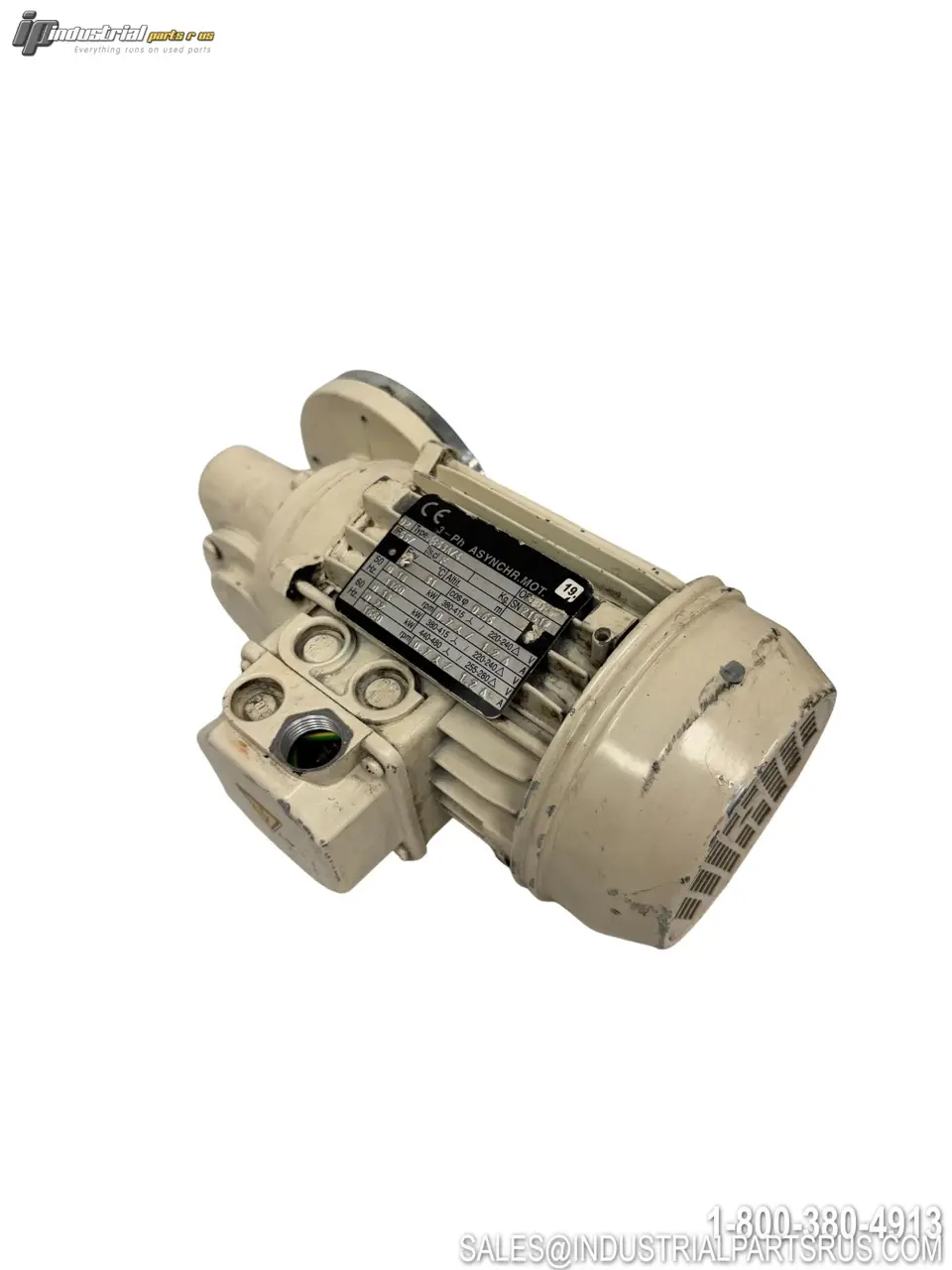

USED ASYNCHR.MOT. MB63A/4

The MB63A/4 is an IEC Frame 63, 4-pole three-phase asynchronous (squirrel cage induction) electric motor designed for continuous industrial duty. The model designation follows standard European IEC nomenclature: Frame 63 (63mm shaft centre height), size A (smallest in the 63 frame family), and /4 indicating 4-pole configuration for approximately 1400 RPM at 50Hz. This compact motor features an aluminium frame construction, foot mount base, keyed shaft, and IP55-rated TEFC enclosure suitable for light industrial drive applications including conveyors, fans, pumps, and small machinery where reliable low-power AC drive is required.
Specification
Value
Brand / Label
Asynchr.Mot.
Model / Part Number
MB63A/4
Motor Type
Three-Phase Asynchronous Squirrel Cage Induction Motor
IEC Frame Size
63 (63mm shaft centre height)
Number of Poles
4
Rated Power Output
0.13 kW (0.18 HP)
Rated Speed
~1400 RPM
Voltage
230/400V (Delta/Star)
Phase
3-Phase
Frequency
50 Hz
Synchronous Speed
1500 RPM (4-pole, 50Hz)
Shaft Diameter
14mm (IEC Frame 63 standard)
Shaft Length
23 mm (IEC Frame 63 standard)
Enclosure / Protection
IP55 (Totally Enclosed Fan Cooled – TEFC)
Insulation Class
Class F
Service Duty
S1 (Continuous)
Ambient Temperature
Max 40°C
Cooling Method
IC411 – Self-Ventilated (External Fan)
Power Factor (cos φ)
~0.57
Nominal Efficiency
~58%
Nominal Torque
~0.89 Nm
Moment of Inertia (J)
0.000285 kg·m²
Standard
IEC 60034 / IEC 60072-1
