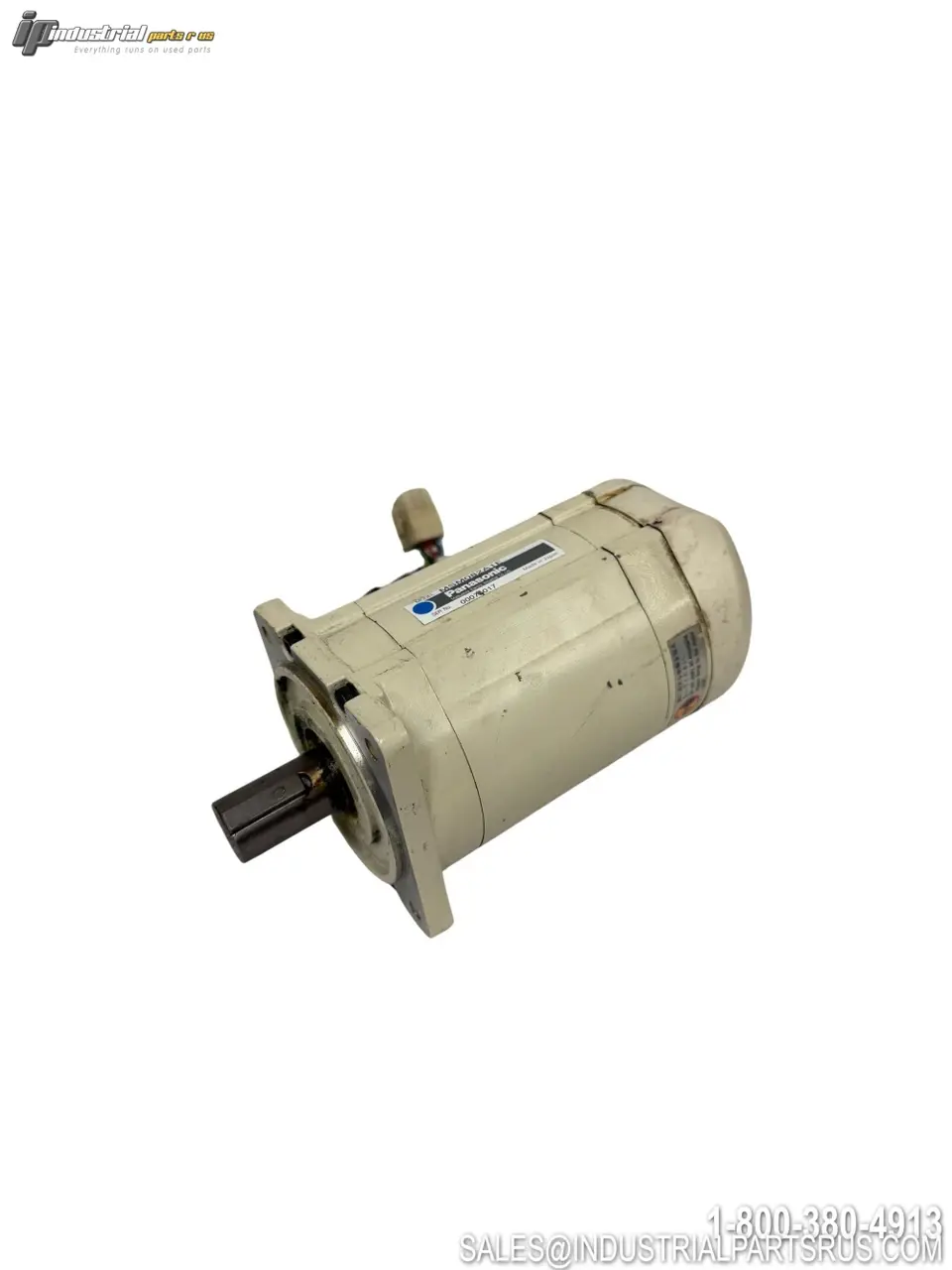

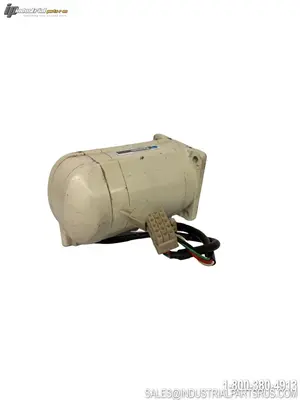

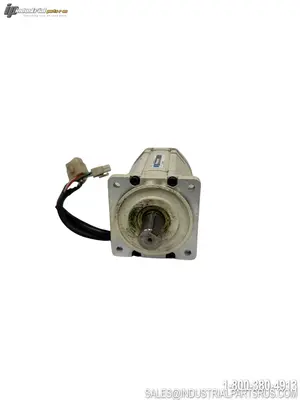

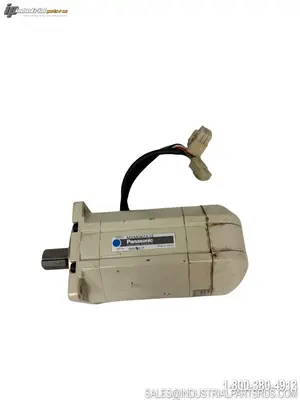

USED PANASONIC MSM082A1E

The Panasonic MSM082A1E is a low-inertia AC servo motor from the MINAS A Series, designed for precision motion control in factory automation applications. Rated at 750W with a base speed of 3000 RPM on a 200VAC 3-phase supply, this motor features a 2500 P/r incremental encoder and straight shaft with keyway, making it suitable for demanding positioning tasks in packaging, printing, robotics, and machine tool applications. This product has been discontinued by Panasonic and is available as surplus or used inventory.
Specification
Value
Brand
Panasonic
Model / Part Number
MSM082A1E
Product Series
MINAS A Series
Motor Type
AC Servo Motor (Low Inertia)
Rated Output Power
750 W (0.75 kW)
Rated Speed
3000 RPM
Rated Voltage
200 VAC (3-Phase)
Phase
3-Phase AC
Rated Torque
2.39 Nm
Encoder Type
2500 P/r Incremental Encoder
Insulation Class
F (Max 311°F / 155°C)
Enclosure / IP Rating
IP65
Shaft Type
Straight Shaft with Keyway
Connection Type
Lead Wire Type
Inertia Class
Low Inertia
Motor Frame Size
80 mm sq. (80 mm flange)
Product Status
Discontinued
RoHS Compliant
Yes (EU RoHS 2011/65/EU & 2015/863/EU)
We warranty all items for 30 days from date of purchase.
