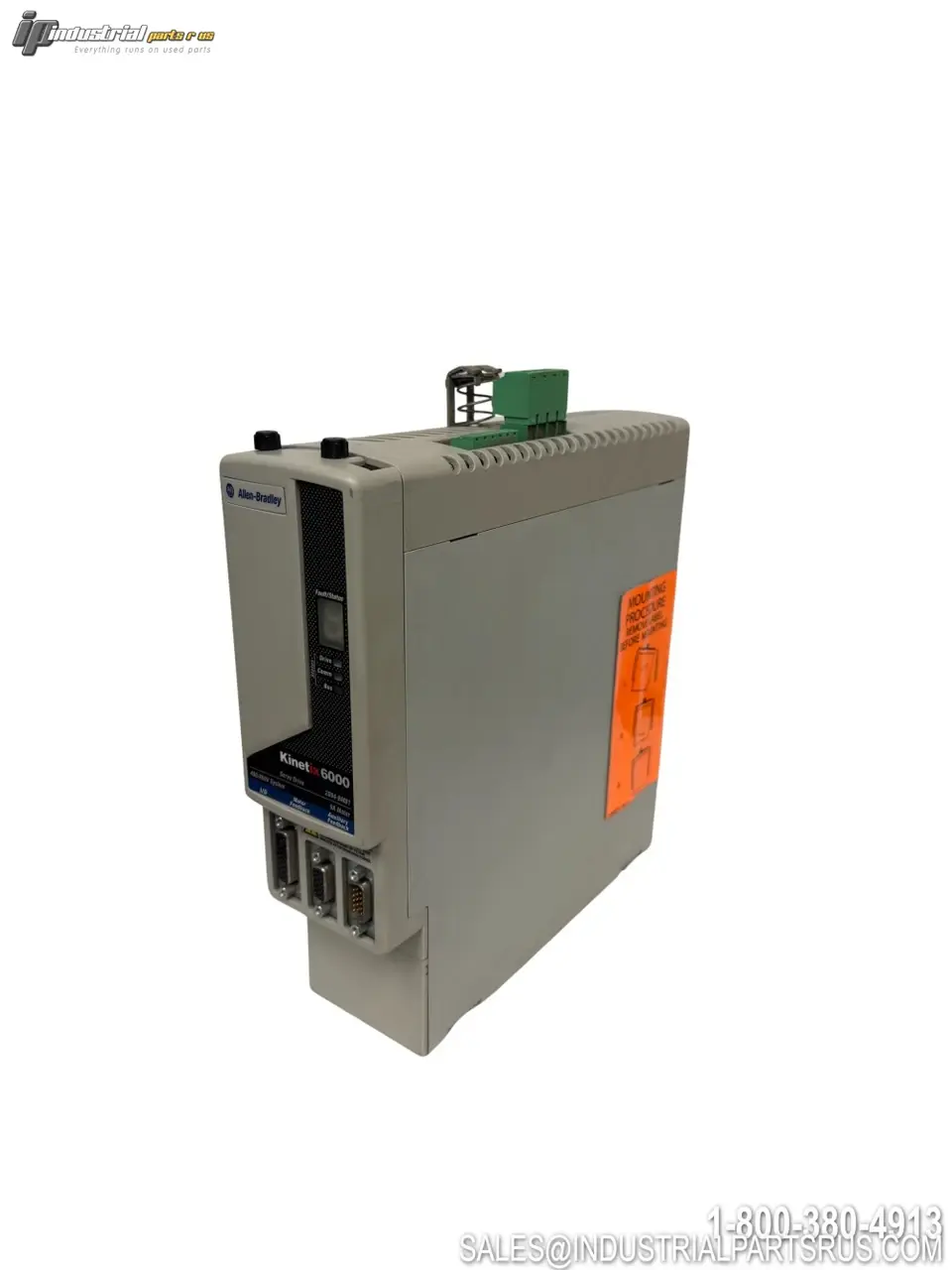

USED ALLEN-BRADLEY 2094-BM01

The Allen-Bradley 2094-BM01 is a Kinetix 6000 Axis Module (AM) designed for multi-axis servo motion control applications on the Logix platform. It operates on a 360/480V nominal (324–528V rms) three-phase input and delivers 3.9 kW of rated output power with a continuous output current of 6.1 A and an 8.6 A inverter rating. This is the base variant of the BM01 family — it does
not
include the Safe Torque-Off (STO) safety feature, distinguishing it from the 2094-BM01-S and 2094-BM01-M variants. The module mounts directly to a Kinetix 6000 power rail alongside the Integrated Axis Module (IAM) and connects to servo motors via feedback and I/O cables.
Specification
Value
Brand
Allen-Bradley
Model / Part Number
2094-BM01
Platform / Product Family
Kinetix 6000
Module Type
Axis Module (AM)
Nominal Input Voltage
360 / 480 VAC (3-Phase)
Input Voltage Range
324–528V rms, 3-Phase
Rated Power Output
3.9 kW
Inverter Current Rating
8.6 A (rms)
Continuous Output Current
6.1 A
Peak Output Current (Series A)
9.2 A (rms) / 12.9 A (0-pk)
Efficiency
98%
Short-Circuit Current Rating
200,000 A (rms) Symmetrical
Velocity Loop Bandwidth
500 Hz
Current Loop Bandwidth
1300 Hz
PWM Frequency
8 kHz
Safe Torque-Off (STO)
No (not included)
Series Available
A, B, C
Voltage Class
400V Class
Compliance / Certifications
UL, CUL, C-TICK, CCC, KC
Manufacturer Status
Discontinued (09/30/2009)
Manufacturer
Rockwell Automation
We warranty all items for 30 days from date of purchase.
