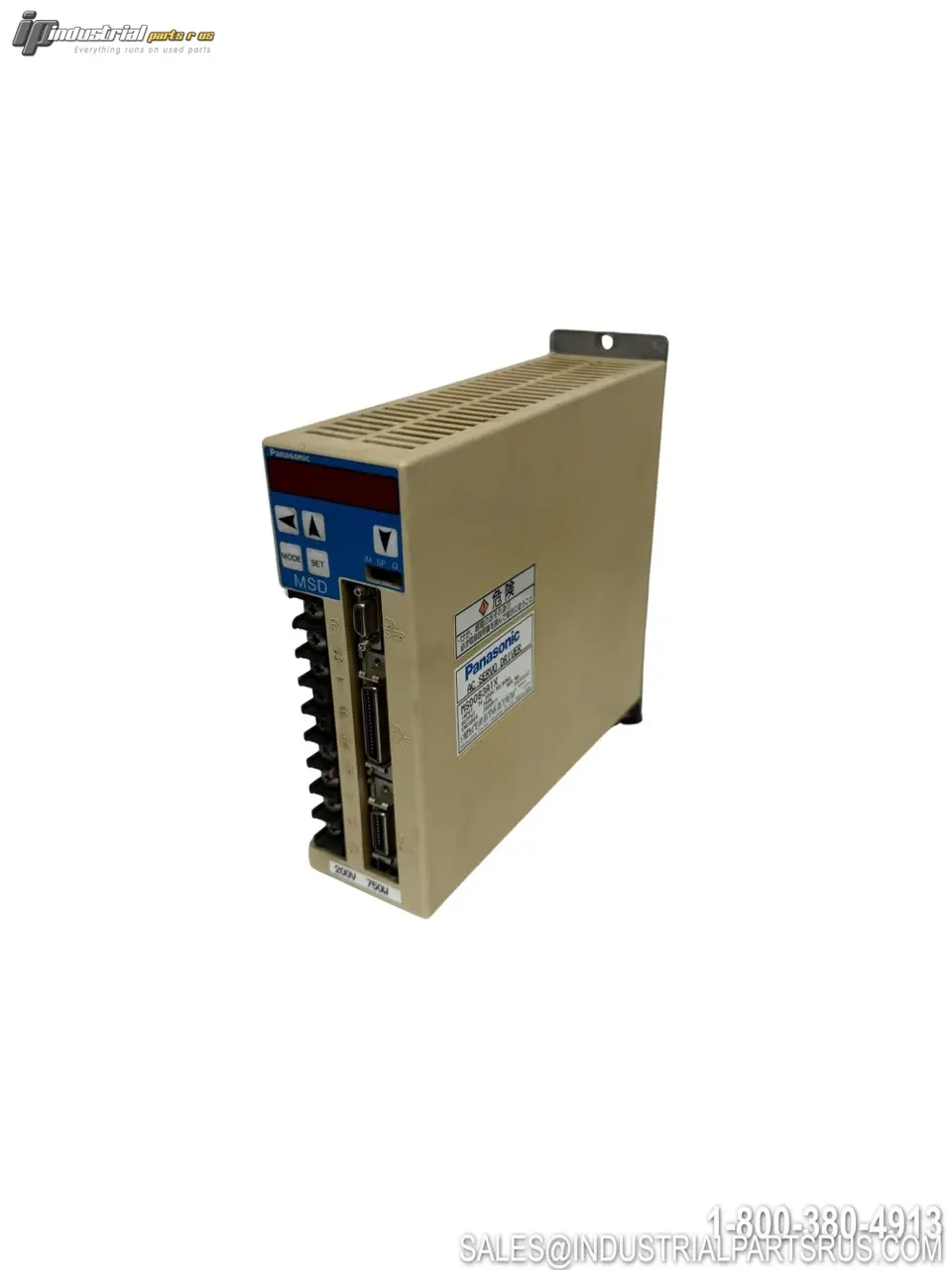

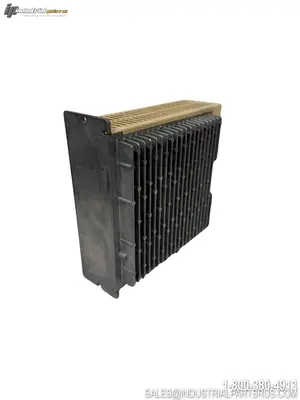

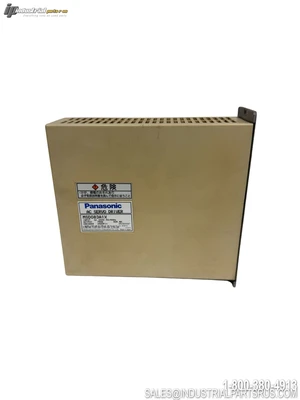

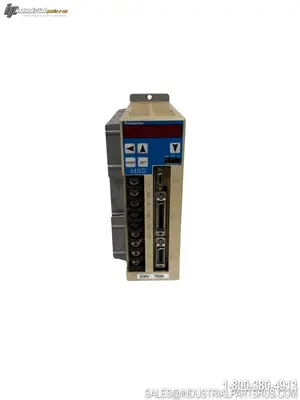

USED PANASONIC MSD083A1X

The Panasonic MSD083A1X is a MINAS X Series AC Servo Driver designed to precisely control MSM low inertia AC servo motors. It accepts both single-phase and three-phase 200–230V AC input and delivers a rated output of 750W at 116V / 4.3A, making it well-suited for demanding motion control applications in robotics, automation, and material handling. This unit utilizes a 2500 pulse-per-revolution incremental encoder interface for accurate closed-loop speed and position feedback, and features real-time auto-gain tuning for simplified commissioning.
Specification
Value
Brand
Panasonic
Model / Part Number
MSD083A1X
Manufacturer
Panasonic (Matsushita Electric Industrial Co., Ltd.)
Product Series
MINAS X Series
Product Type
AC Servo Driver (Amplifier)
Input Voltage
200–230V AC
Input Phase
Single-Phase or Three-Phase (1Ø / 3Ø)
Input Current
4.0A (3-phase) / 3.7A (single-phase)
Input Frequency
50 / 60 Hz
Output Power
750W
Output Voltage
116V
Output Current
4.3A
Encoder Resolution
2500 P/R (Pulses per Revolution) — Incremental
Compatible Motor Type
MSM Low Inertia AC Servo Motors
Control Modes
Position, Velocity, Torque
Motor Series Compatibility
MINAS Series (MSM Low Inertia)
RoHS Compliance
Compliant (EU RoHS 2011/65/EU & 2015/863/EU)
Status
Discontinued by Manufacturer
We warranty all items for 30 days from date of purchase.
