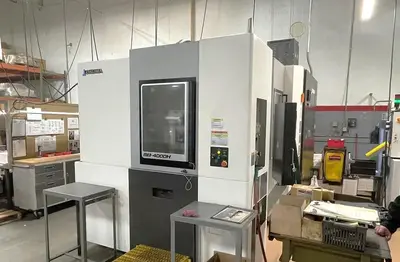

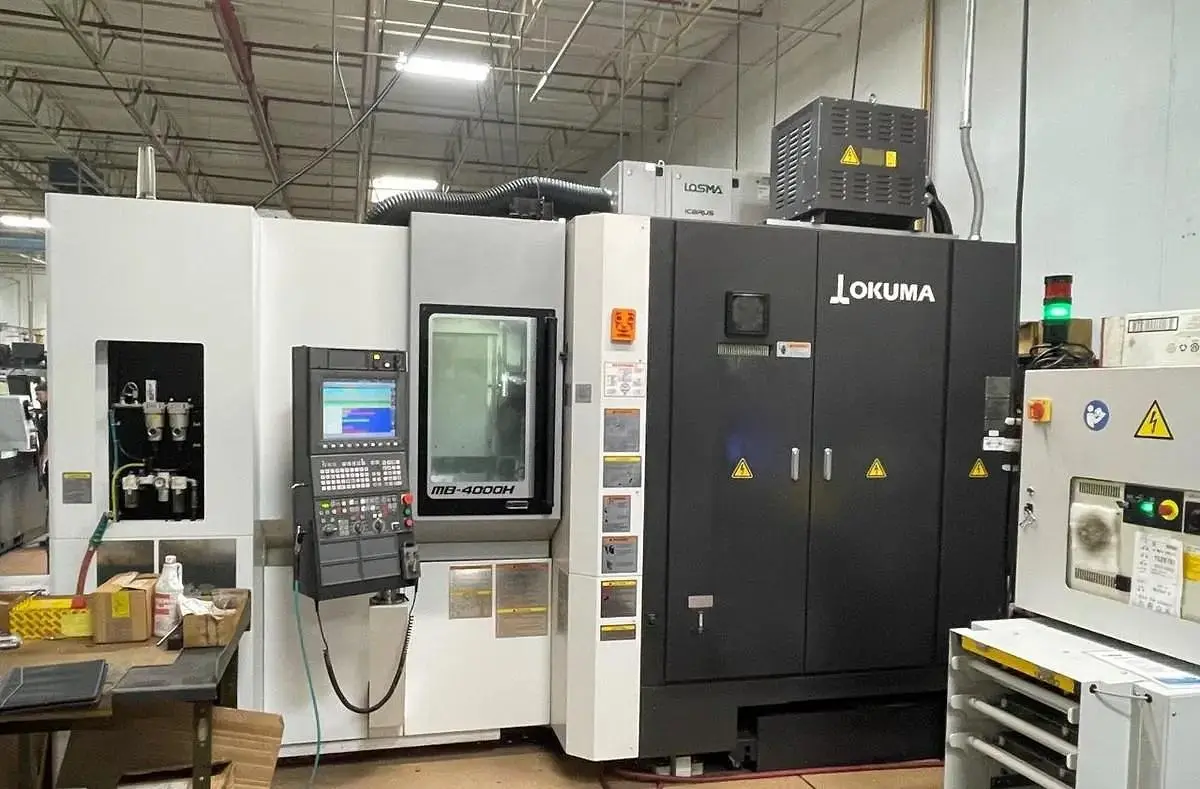

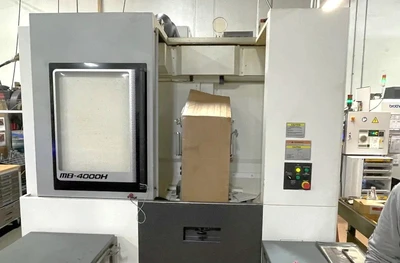

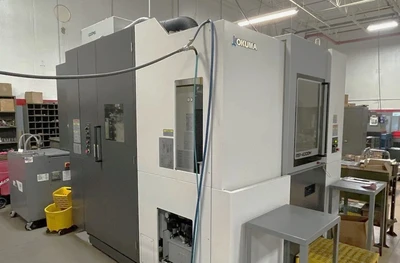

USED 2018 OKUMA MB-4000H
Overview
2 Pallet Changer System

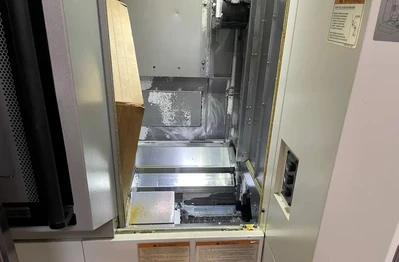

Full 4th Axis Rotary Table
60 Station Tool Changer
MP Systems 1000 PSI High Pressure Coolant Through the Spindle
15,000 RPM Spindle
Renishaw OMP 400 Spindle Mounted Part Probing

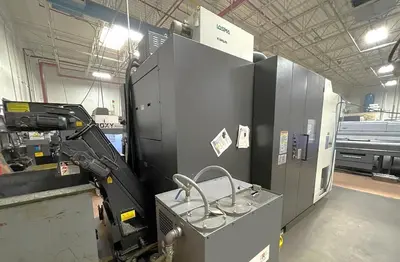

Chip Conveyor
Losma Mist Collector System
Flood Coolant
Rigid Tapping
Spindle Chiller Unit
Remote Jog Handle
USB Port Interface
RS 232 Port Interface
Wired 220/480V Electrics
Transformer
Linear Guide Rail Design

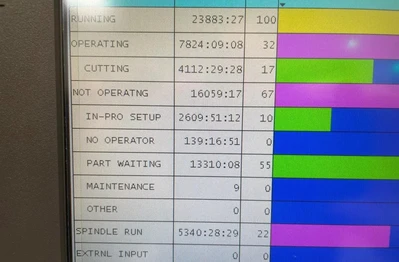

**Operating Hours 7,824**
**Spindle Run Hours 5,340**
**Cutting Hours 4,112**
**Installed new in 2019**
The 2018 Okuma MB-4000H is a robust CNC horizontal machining center ideal for complex and precision-driven tasks. It features an Okuma OSP P-300MA Control, enhancing its operational efficiency. Equipped with a full 4th axis rotary table, the machine offers fine pallet indexing of .001 degrees, accommodating two pallets of size 15.75" x 15.75". Designed to handle a maximum workpiece dimension of 23.62" x 35.43" and table load of up to 880 lbs, it supports versatile machining operations.
This machine model boasts impressive axis travels of 22.05" in X and Y directions and 24.61" in the Z direction. The spindle, a CAT 40 Taper, delivers speeds ranging from 50 to 15,000 RPM, powered by a 35 HP motor. Enhancing its capabilities, the machine comes with a part probing system, high-pressure coolant through the spindle, and a chip conveyor. The spindle center adjusts from 1.97" to 24.02" above the table top, and the spindle nose extends 3.35" to 27.95" to the pallet center, allowing for versatility in tooling and machining applications.
Situated within a compact footprint of 186" x 96" x 106", the MB-4000H includes a 60-position Automatic Tool Changer, supporting up to 60 tools with a maximum tool diameter of 5.91", length of 11.81", and weight up to 22 lbs. Rapid traverse and cutting feed rates reach 2,362 IPM, ensuring high productivity and efficiency. Weighing 21,000 lbs, this used, high-performing machine is an excellent choice for businesses focused on precision and speed in manufacturing operations.
Specs

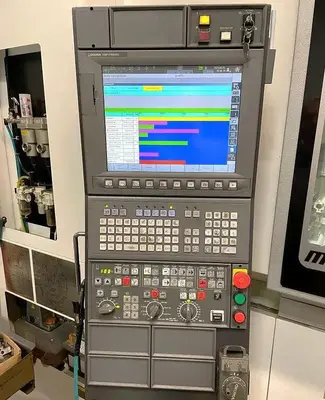

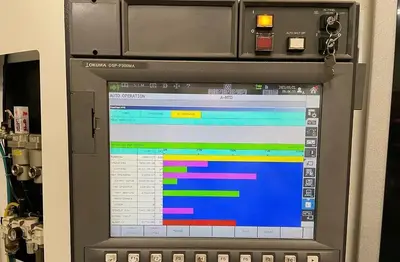

Machine Control: Okuma OSP P-300MA Control
Table Size / Number of Pallets: 15.75" x 15.75" / 2 Pallet Changer
Maximum Workpiece Dimensions: 23.62" x 35.43"
Maximum Table Load: 880 lbs
Pallet Indexing: .001 Degrees Full 4th
X-Axis Travel: 22.05"
Y-Axis Travel: 22.05"
Z-Axis Travel: 24.61"
Spindle Speed: 50 - 15,000 RPM
Spindle Taper: CAT 40 Taper
Spindle Motor: 35 HP
Spindle Center to Table Top: 1.97" - 24.02"
Spindle Nose to Pallet Center: 3.35" - 27.95"
Tool Magazine Capacity: 60 Station Tool Changer
Maximum Tool Diameter / Length / Weight: 5.91" / 11.81" / 22 lbs.
Rapid Traverse Rates: 2,362 IPM
Cutting Feedrates: 2,362 IPM
Machine Dimensions LxWxH: 186" x 96" x 106"
Machine Weight: 21,000 lbs
