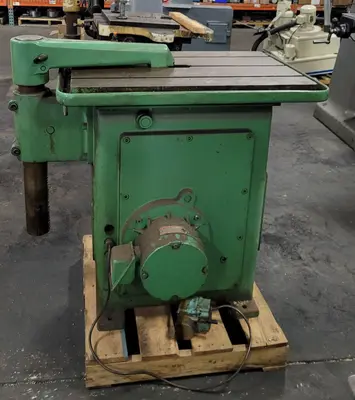

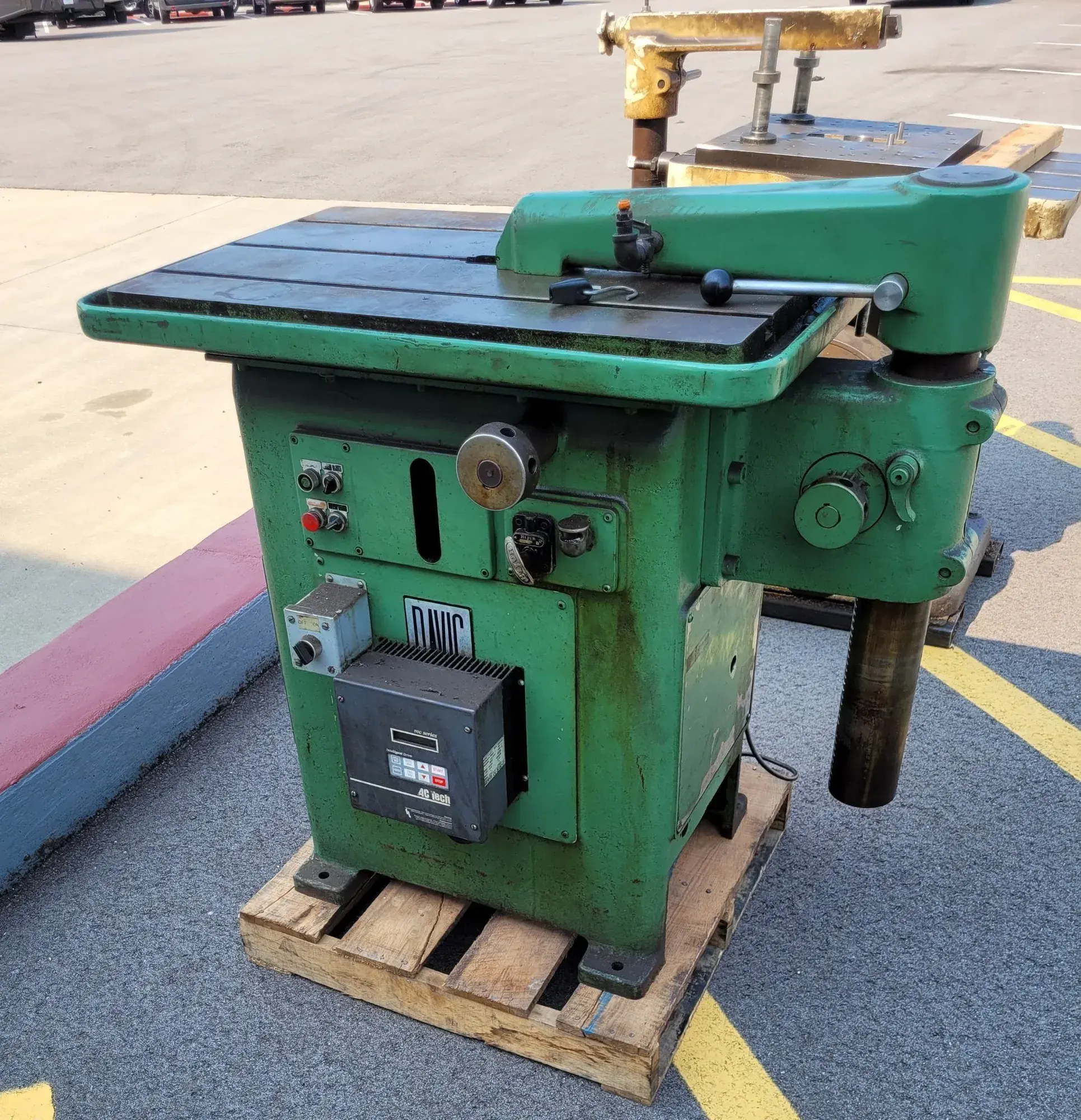

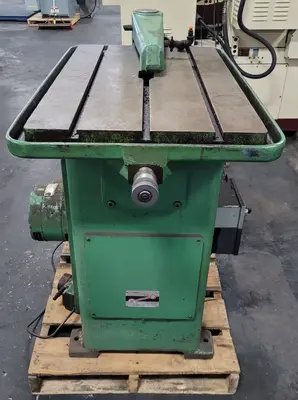

USED HANSFORD DAVIS 15

The Davis Keyseater Model 15B features a keyway cutting capacity ranging from 1/16″ to 1-1/2″ in steel, with a maximum keyway capacity of 1.5″ and a maximum length of cut up to 31″. Depending on cutter length, maximum cut lengths vary: 4″ for a 16″ cutter, 8″ for a 20″ cutter, 12″ for a 24″ cutter, and 18″ for a 30″ cutter. The machine provides a standard throat depth of 19″, expandable to 22″ with the DA-60 extra throat depth assembly. Standard maximum height of work is 12″, which increases to 18″ with the D-1701 arm post option. The unit is equipped with a 20″ x 31″ table featuring 3 T-slots and a 1-1/2″ travel. Operating speeds include a standard 45 strokes per minute, or 11 to 56 strokes per minute with the DA-27 variable speed drive. Powered by a 2 HP motor, the machine requires a minimum air pressure of 80 PSI for auto feed with air consumption at 3 SCFM. Electrical specifications are 3-phase, wired for 460V. Shipping dimensions for the 1600 lbs unit are 41″ x 44″ x 48″.
