USED CE HOWARD STAINLESS 12448 B
Overview
Description

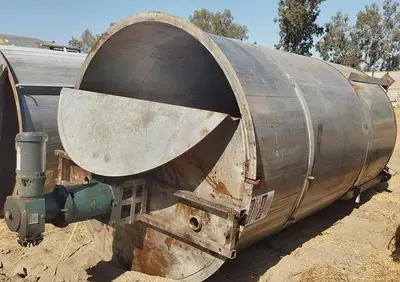

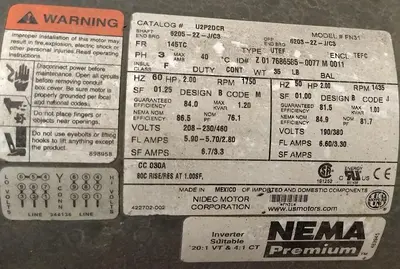

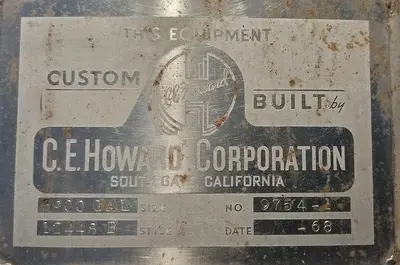

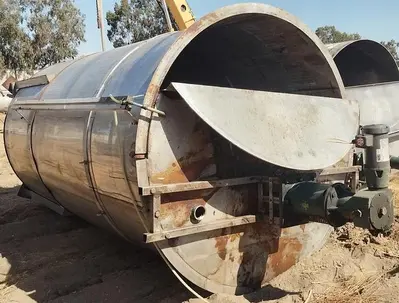

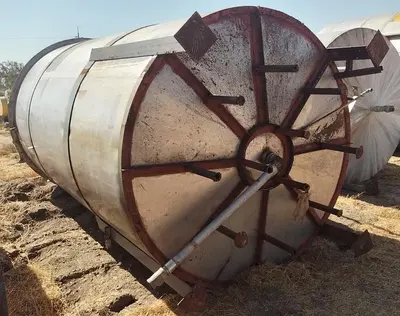

CE Howard Stainless steel Agitated Tank with top entering agitation, approximately 4,000-gallon capacity. Measures 7’ inside diameter x 13’ straight side with a flat top and slight cone bottom with 3 1/2” diameter center bottom discharge with threaded connection to 90-degree elbow pipe. Top head includes MixMor Model T0-1.5 bridge-mounted, top-entering agitator drive, two 3” diameter openings, and partial hinged lid. Agitation includes stainless steel shaft and two 4-blade pitched turbine bolted paddles, driven by 2 HP, 208-230/460V, 1750 RPM, 3/60Hz gearhead motor. Overall height is 18’3”. CE Howard style 12448 B, serial number 9754-1. Mounted on a stand with mild steel angle iron legs and footpads.
Specifications
Stock Number: S745309
Manufacturer: CE Howard Stainless
Model: 12448 B
Serial Number: 9754-1
Gallons: 4000
Materials of Construction: Stainless Steel
Previous Use: Cleaners & Detergents
Tank Dimensions: 7' Diameter X 13' High
Type: Vertical Mix Tank
Basis: FOB
