Mitutoyo CRYSTA Apex V9168 CMM – 2023

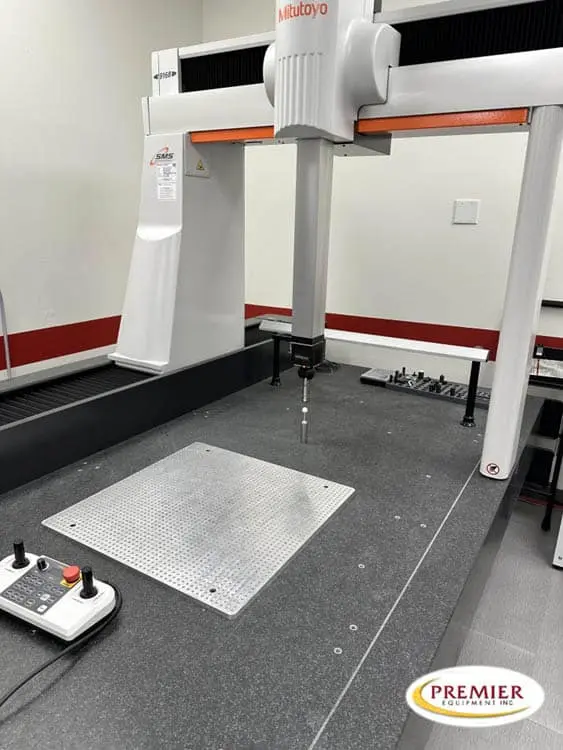

Mitutoyo CRYSTA-Apex V9168 CNC coordinate measuring machine (CMM)
Specification: 8

X-axis travel: 900 mm (35.43″)

Y-axis travel: 1,600 mm (62.99″)

Z-axis travel: 800 mm (31.49″)

Resolution: 0.0001 mm (0.1 µm / 4 µin)

Maximum workpiece height: ~1,000 mm

Maximum workpiece mass: 1,500 kg (3,307 lb)

Table size: 1,080 × 2,320 mm (42.51″ x 91.33″)

Maximum combined drive speed: 519 mm/s

Maximum measuring speed: 3 mm/s on the Z800 version

Maximum combined acceleration: 1,732 mm/s²

Guide system: Air bearings on all axes

Scale: Linear encoders

Air pressure: 0.4 MPa / ~58 psi

Typical probe: TP20??

Machine weight: approx 6600 lbs
