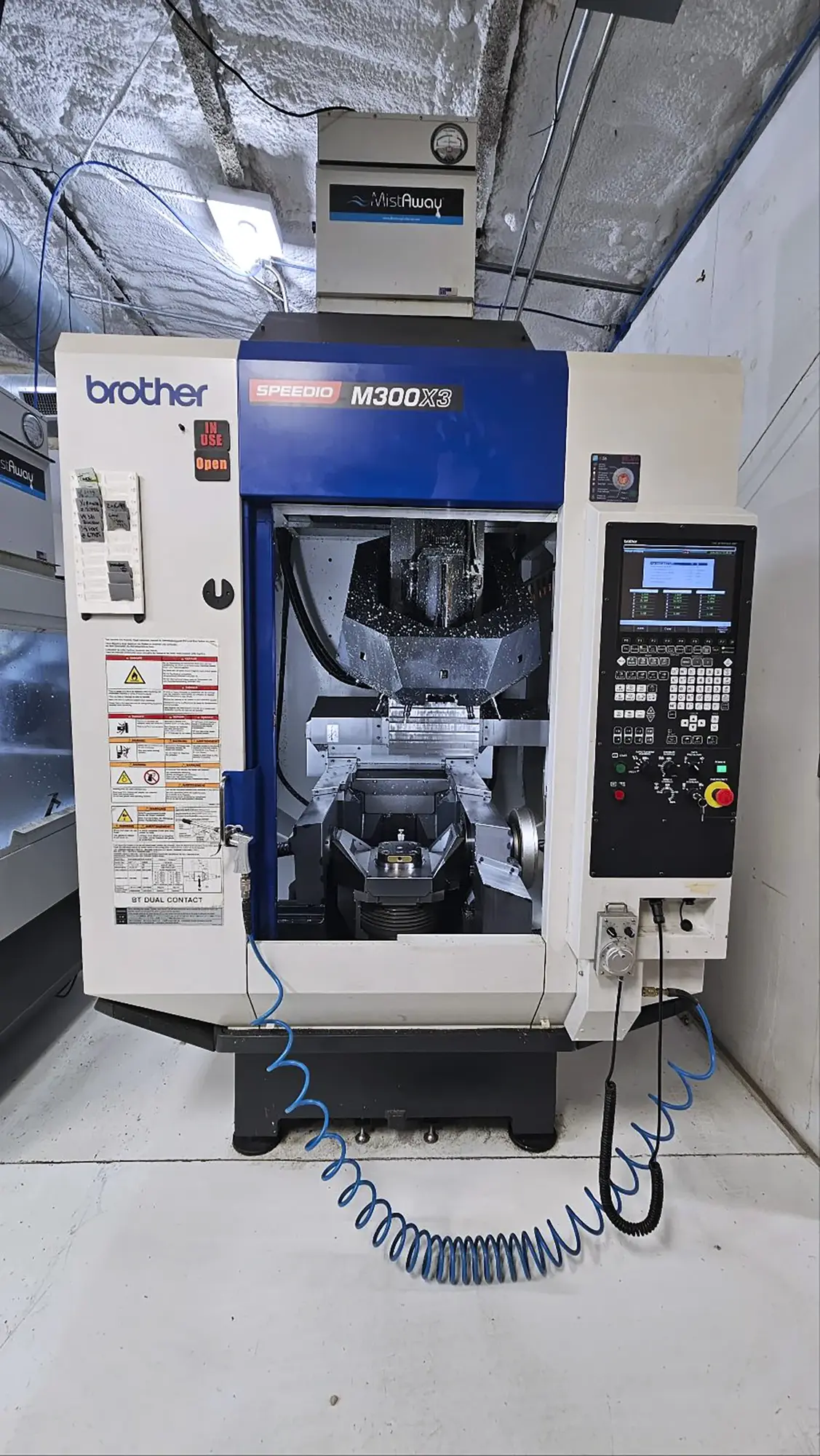

USED 2021 Brother M300X3
Overview
Brother Speedio M300X3 is a compact, ultra-high-speed 5-axis CNC machining center designed for precision milling, drilling, and turning. Its built-in tilting rotary table enables efficient multitasking and complex part production, making it ideal for medical, dental, automotive, EV, electronics, and high-volume precision manufacturing.
Specs
X-Axis Travel: 11.8" (300 mm)
Y-Axis Travel: 17.3" (440 mm)
Z-Axis Travel: 12.0" (305 mm)
A-Axis Range: -30° to +120°
C-Axis Rotation: 360° Continuous
Table Diameter: 6.7" (170 mm)
Main Spindle Speed: 16,000 RPM
Spindle Taper: BT30
Turning Spindle Speed: 1,500 RPM
TOOL CAPACITY: 22 Tools
Rapid Traverse (X/Y/Z): 1,969 IPM (50 m/min)
Equipped With
16000 RPM BT30 Main Spindle.

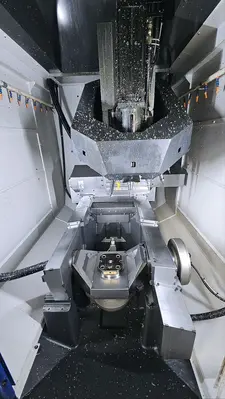

Integrated A-Axis Tilting Rotary Table
Integrated C-Axis Rotary / Turning Spindle
l
22-Position High-Speed Automatic Tool Changer
435 PSI Brother Coolant-Through-Spindle Pump & Filter System
Blum TC-52 Spindle Probe
Blum Z-Nano Tool Measurement System with Chip Protection
Manual Pulse Generator
Dual Work Lights
Air-Assisted Tool Wash
Back Washing System
Chip Shower System
Automatic Grease Lubrication
150-Liter Coolant Tank
Complete Machine Enclosure with Ceiling Cover
Safety Door Interlock System

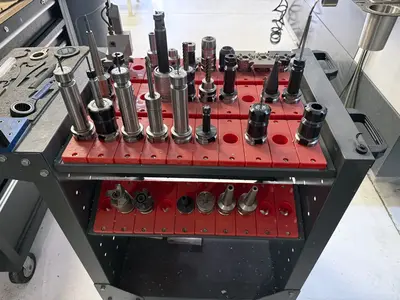

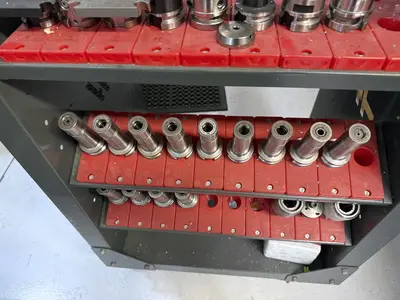

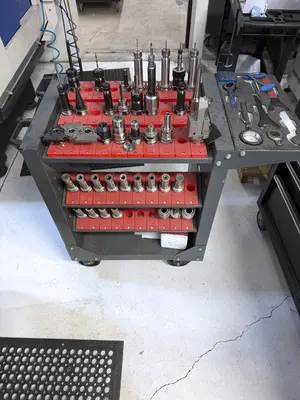

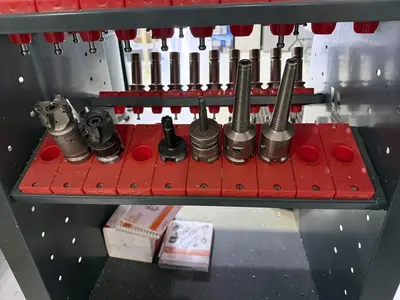

Comes with $10K Worth of Tooling.
