NEW 2020 GRACO SN9102 EFR
Overview

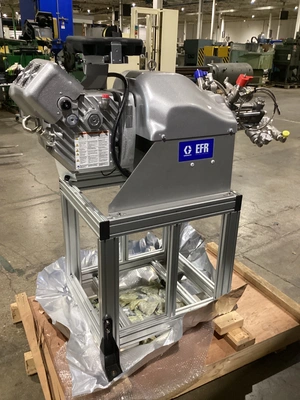

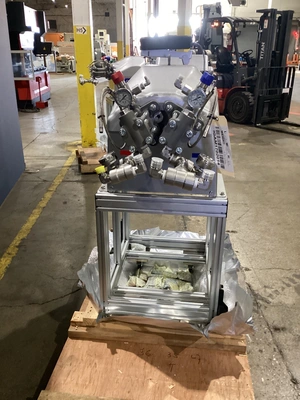

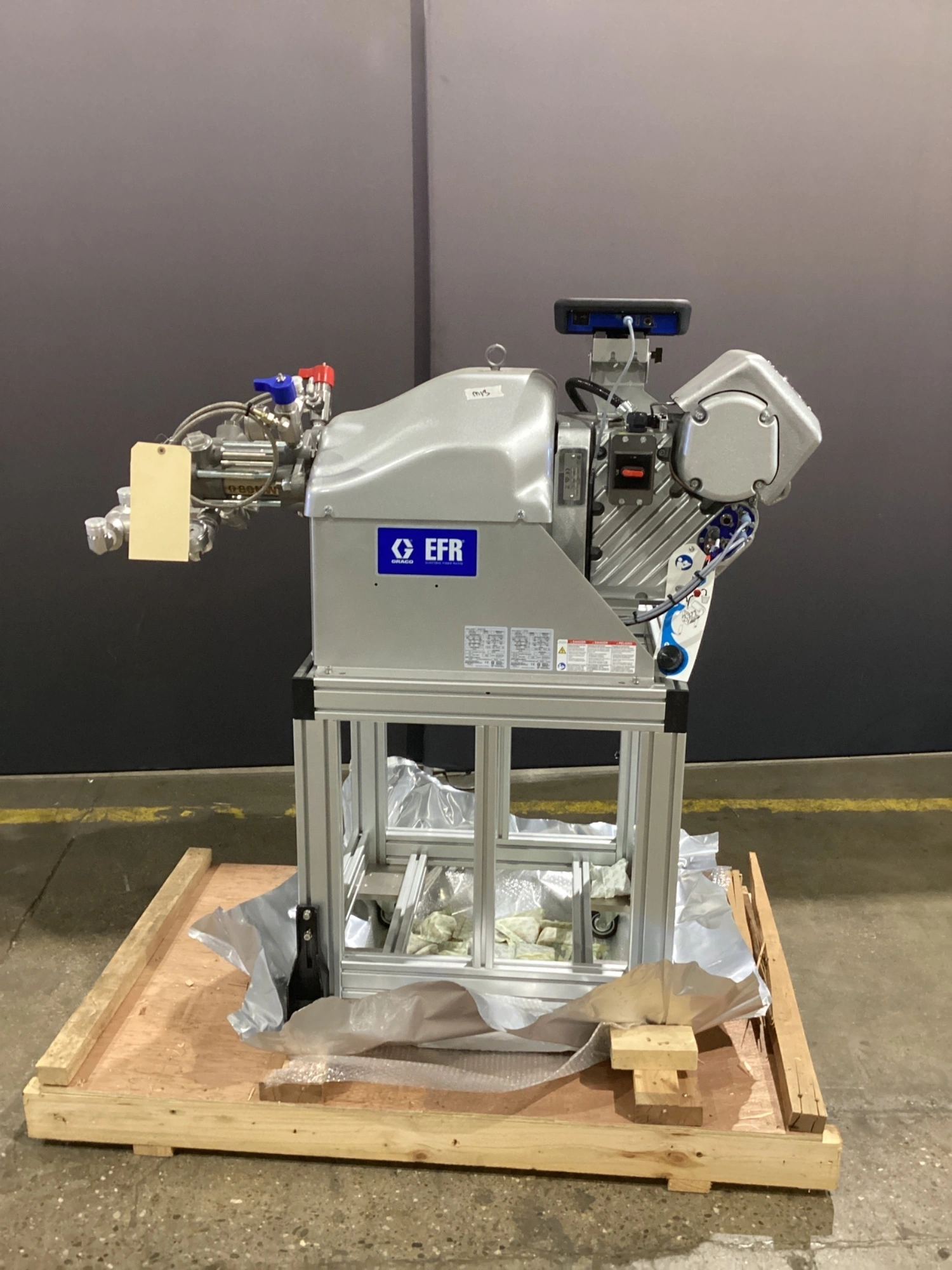

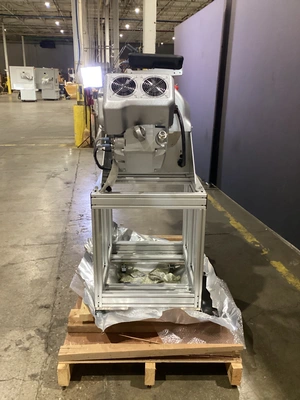

This listing is for a NEW Graco SN9102 EFR Electric Fixed Ratio Dispensing System. The system is configured for precision metering, mixing, and dispensing of industrial materials used in adhesive, sealant, coating, and material application processes. This configuration incorporates an EFR platform, 80HW and 20HW Severe Duty Z-pump fluid sections, a 4:1 displacement ratio, a 25N520 electric drive, and a Graco Advanced Display Module (ADM) operator interface.
Specs
System Information
------------------
Manufacturer: Graco
Model: SN9102
Product Type: Electric Fixed Ratio Dispensing System
Condition: NEW

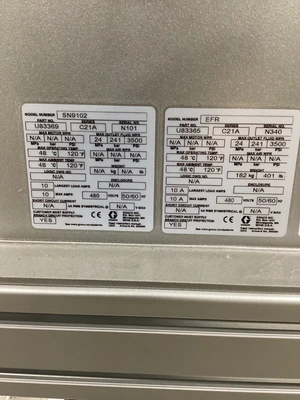

Primary Assembly
----------------
Part Number: U83369
Series: C21A
Serial Number: N101
System Platform
---------------
EFR Platform: Installed
Fluid Section Configuration
---------------------------
Pump Type: Graco Z-Pump

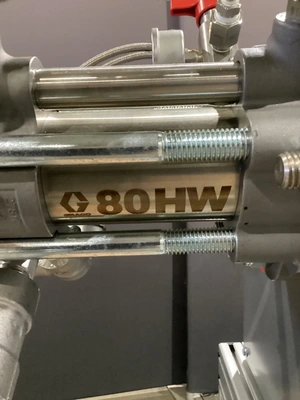

Fluid Section A: 80HW
Displacement A: 80 cc

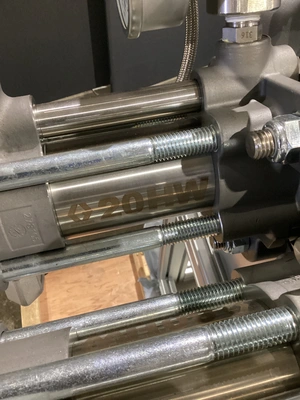

Fluid Section B: 20HW
Displacement B: 20 cc
Nominal Displacement Ratio:4:1
Fluid Performance
-----------------
Maximum Outlet Pressure: 3500 PSI
Maximum Outlet Pressure: 241 bar
Maximum Outlet Pressure: 24 MPa

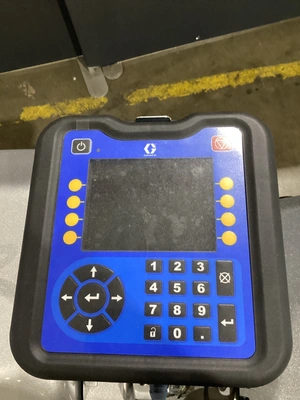

Operator Interface
------------------
Display Module: Graco Advanced Display Module
ADM Part Number: 24E451
Input Voltage: 12-30 VDC
Current Rating: 4 A
USB Connectivity: Supported
Electrical Requirements
------------------------
Supply Voltage: 480 VAC
Frequency: 50/60 Hz
Largest Load: 10 A
Maximum Current: 10 A

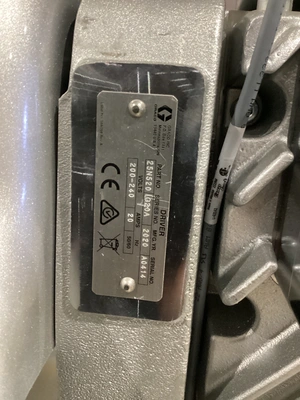

Drive Information
-----------------
Drive Model: 25N520
Drive Voltage: 200-240 VAC
Drive Current: 20 A
Drive Frequency: 50/60 Hz
Drive YOM: 2020
Secondary Identification
-------------------------
EFR Part Number: U83365
EFR Serial Number: N340
Weight: 401 lb
Weight: 182 kg
Construction
------------
Dispensing Head: Installed
Support Frame: Aluminum Extrusion
Identification
--------------
Country of Origin: USA
