Reactor, 200 Gallon, Glass Lined, Jkt, Agit, Pfaudler, #C742758

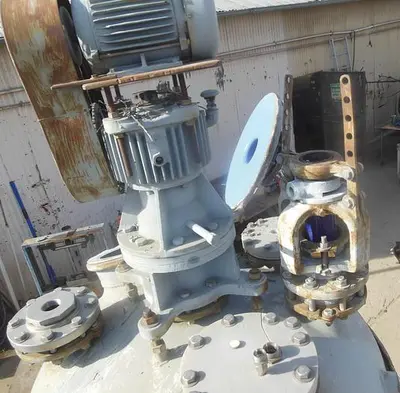

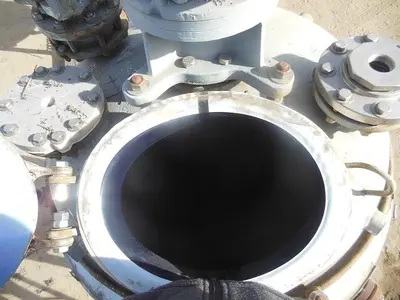

Pfaudler glass-lined 200-gallon jacketed reactor. Measures 39" diameter x 39" straight side, dished top and bottom, complete with 3-blade retreating impeller agitation and a finger baffle. Driven by 2 Hp, 3-phase, 60 cycle, 230/460-Volt motor with reducer. Top openings include 16" x 11" oval manway and (2) 4" (1) 6" inlets, 3" diameter center bottom outlet, stands on (4) 3-1/2" pipe legs. No data plate available, and no pressure rating for the jacket.

Stock Number: C742758
Manufacturer: Pfaudler
Gallons: 200
Materials of Construction: Glass-Lined
Internal Pressure: Not Available
Jacket Pressure: Not available
HP: 2
Basis: FOB
