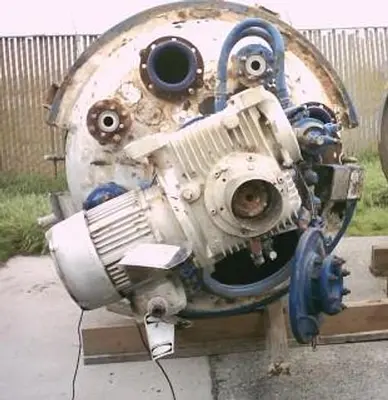

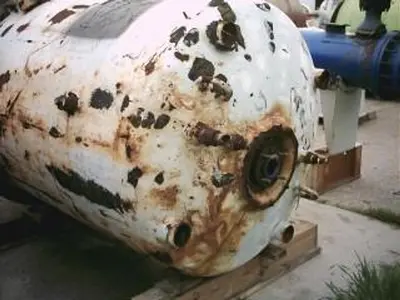

Reactor, 500 gallon capacity, glass-lined, measures 48" diameter x 58" deep, dished top and bottom, 3" center bottom outlet, manufactured by Pfaudler, Model. RA48-500, glass-type 9115, rated for 100 PSI/full vacuum @ 450degrees /-20deg. F., jacket rated for 100 PSI @ 450 degrees / -20deg. F. Complete with glass-lined 3-blade retreat curve-type agitator with approx.10 HP drive thru Pfaudler 15.4:1 gearbox, 117 output RPM. Serial# R193-0096. Top inlets - (3) 2", (2) 3", 4" & 6" and 12" x 15" oval manway. Lug mounts and ports for legs. Good condition.
Stock Number: C732378
Manufacturer: Pfaudler
Model: RA48-500
Serial Number: R193-0096
Gallons: 500
Materials of Construction: Glass-Lined
Internal Pressure: 100 PSI / Full Vacuum @ 450/-20 deg. F
Jacket Pressure: 100 PSI @ 450/-20 deg. F
HP: 10
Previous Use: Chemical Processing
Basis: FOB
