Reactor, 1,000 Gallon, Glass Lined, 100 PSI, Jkt, Pfaudler, #S731152

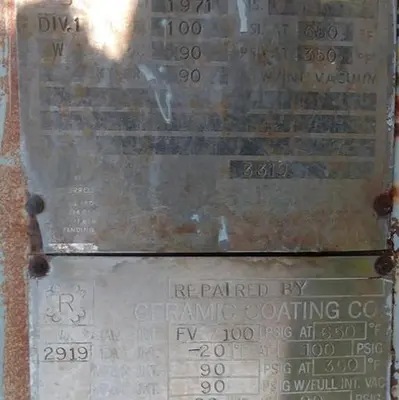

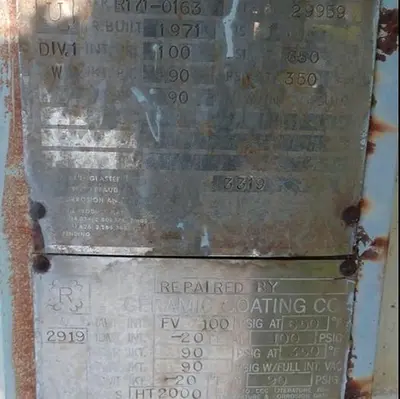

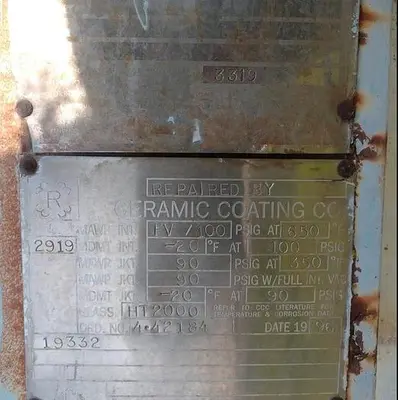

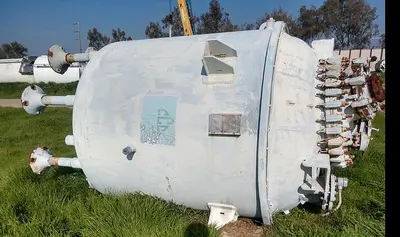

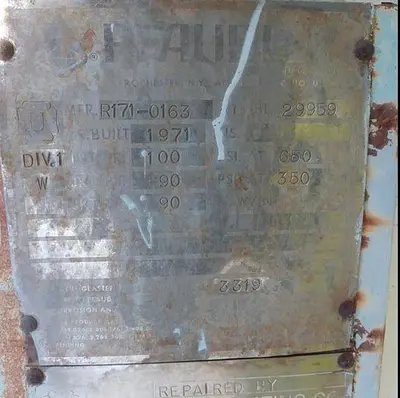

Reactor, 1,000 gallon, glass lined, manufactured by Pfaudler, 66" diameter x 60" straight side, welded dished top and bottom, ASME, rated for 100 PSI/FV @ 650 deg. F internal, jacketed for 90 PSI @ 350ŗ. Glass repaired by Ceramic Coating in 1996 with glass-type HT2000. Includes 30" off-center top J-clamped opening with 16" x 20" oval manway and sight glass. Mounted on (8) 18" legs with round foot pads. Pfaudler serial# 171-0163, NB# 29959. Very good condition.

Stock Number: S731152
Manufacturer: Pfaudler
Serial Number: 171-0163
Gallons: 1000
Materials of Construction: Glass-Lined
Internal Pressure: 100 PSI / Full Vacuum @ 650º F.
Jacket Pressure: 90 PSI @ 350º F.
Basis: FOB
