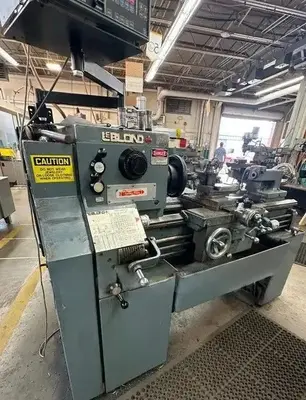

USED LEBLOND REGAL 10C

The LeBlond Regal 19" x 54" Servo Shift Engine Lathe features a 19-inch swing over the bed (actual approximately 19-1/4 inches), a 12-1/4-inch swing over the cross-slide, and 54 inches of distance between centers. It includes a 3-1/16-inch hole through the spindle, an L2 spindle nose, and a #4 Morse Taper (MT) tailstock taper. Spindle speeds range from 40 to 1600 RPM with 48 speed changes selected via a hydraulic servo-shift dial. The lathe offers quick-change inch and metric threading capabilities, cutting standard inch threads from 2 to 112 TPI across 48 changes and metric thread pitches from 0.5 to 2.8 mm. Longitudinal feeds range from 0.0018 to 0.104 inches per revolution (IPR).
