USED PAI 4500

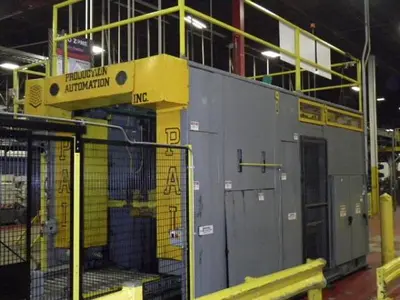

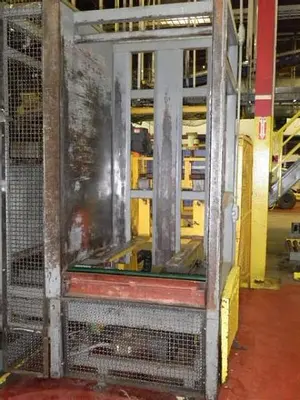

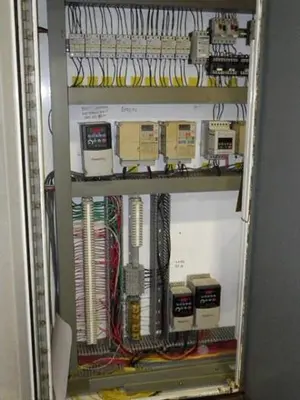

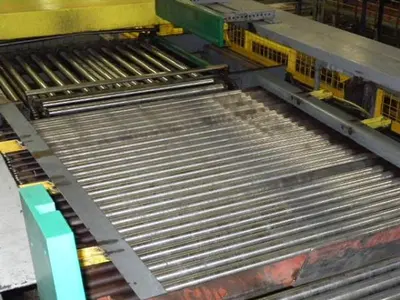

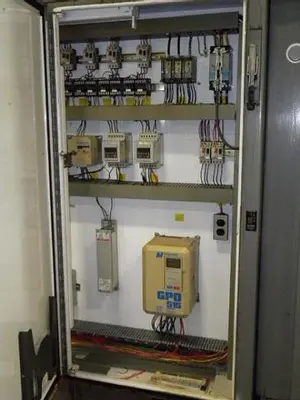

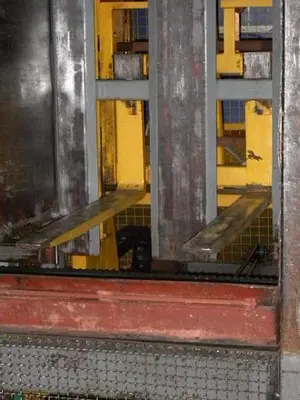

High level palletizer, manufactured by PAI, model # 4500. Capable of up to 45 cases per minute depending on case size and patterns. Pallet type: 36 x 36. Right hand operator side. 76" maximum load height, but previously ran 65" tall load. Includes a pallet dispenser with a side forkcar. Pallet magazine capacity: 11. Infeed elevation: 109-1/2"(approx.). Pallet discharge elevation: 25-1/2"(approx.). Auto centralized lubrication system. Pneumatic requirements: 15 cfm @ 60 psi. Allen-Bradley SLC 5/04 CPU, Allen-Bradley 6" color touchscreen. Electrical: 480V/3ph/60Hz/80 amp circuit breaker. Previously ran 20 oz. bottle in a plastic case(18.75"L x 12.25"W x 9"H) at maximum speed of 45 cpm in 6A pattern with 7 layers/loasd and 68"load height with pallet, 1.0L bottle in a plastic case(17.5"L x 10.5"W x 12.25"H) at maximum speed of 45 cpm in 8D pattern with 5 layers/load and 65"load height with pallet and 2.0L bottle in a plastic case(19"L x 9.5"W x 12.25"H) at maximum speed of 45 cpm in 8E pa

Stock Number: D740878
Manufacturer: PAI
Model: 4500
Basis: FOB
