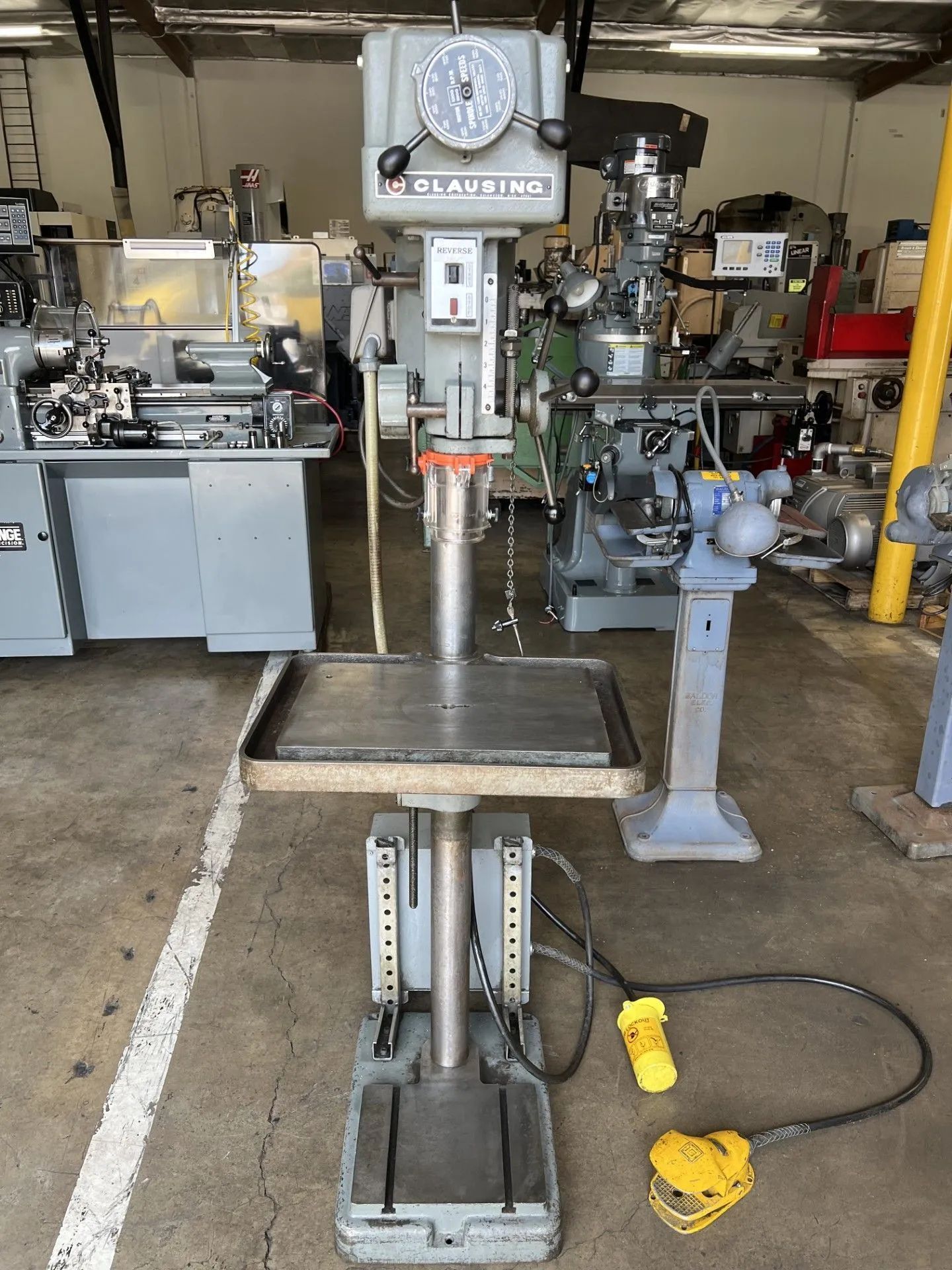

USED CLAUSING 1769

Clausing Model 1769 15" Single Spindle Floor Drill Press, used condition, equipped with work table, drill chuck, and 3/4-HP variable speed motor. Throat depth 7.5", variable spindle speeds 330-2640 RPM, spindle quill travel 4-3/4".

Make: Clausing

Model: 1769 Variable Speed 15"

Serial # 527126

Specification Description

Throat Depth: 7.5"

Drilling Capacity, Mild Steel: 5/8" Diameter

Spindle Speeds, Variable: 330 - 2640 RPM

Spindle Quill Travel: 4-3/4"

Column Diameter: 3"

Work Table Size: 21.5" x 15.5"

Table Work Area: 12" x 18"

Max. Distance Spindle to Table: 41-3/4"

Distance Spindle to Base Table: 47-1/8"

Overall Machine Dimensions: 22" x 28" x 73"

Machine Weight, Approx.: 550 Lbs.

Equipped With:

Reversing Foot Pedal

Drill Chuck

3/4-HP Motor 3 phase 220 / 440 volt
