USED BONNOT 4"

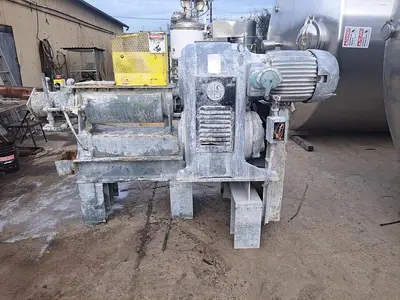

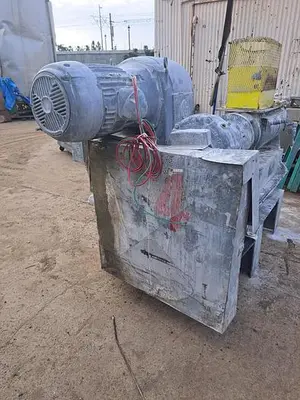

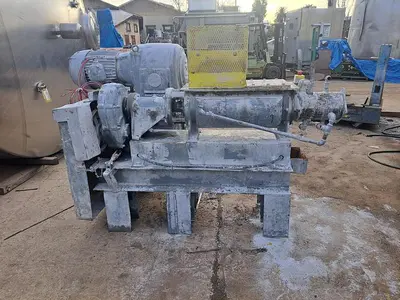

Bonnot single screw extruder, model 4", featuring a mild steel barrel and screw with an approximately 4" diameter x 46" long jacketed barrel. The extruder has an 8" x 16" hopper feed size and is driven by a 15 HP, 230/460 Volt, 3-phase, 60 Hz, 1800 RPM motor through a Dodge gearbox with a 13.66 gear ratio. The system operates with a minimum RPM of 41 and a maximum RPM of 246. Last used in sealants application.

Stock Number: 5991343
Manufacturer: Bonnot
Model: 4"
Serial Number: 1709

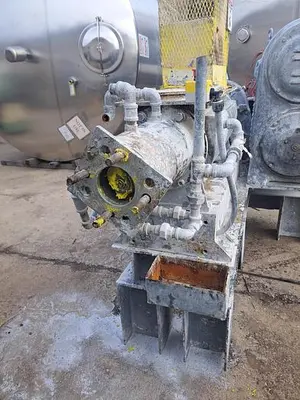

Diameter: 4"
Screw Length: 46"

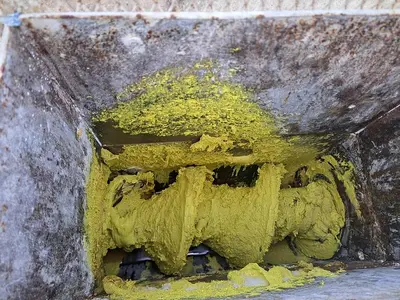

Hopper Size: 8" x 16"

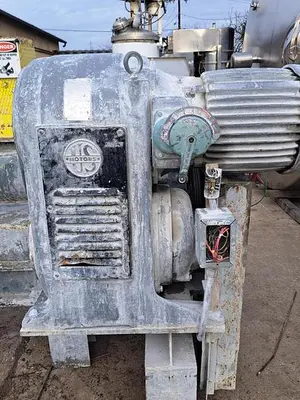

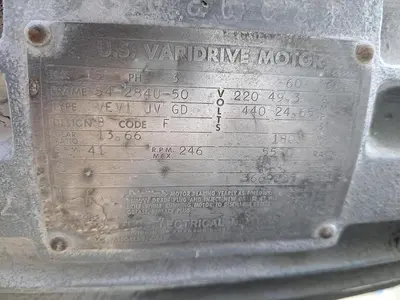

Motor: 15 HP, 230/460V, 3 Ph, 60 Hz, 1800 RPM
Speed Range: 41-246 RPM
Basis: FOB
