USED AMETEK 48-H-430

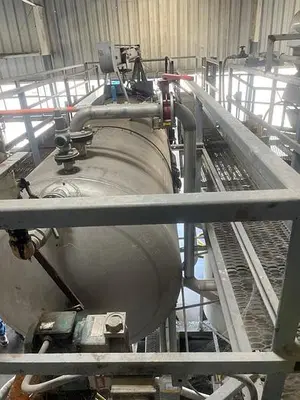

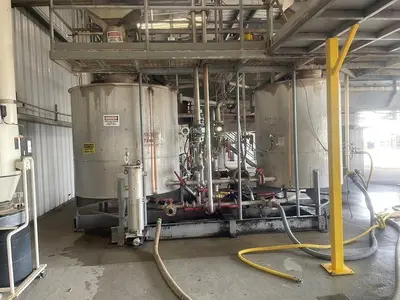

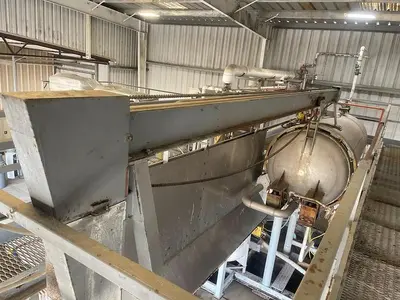

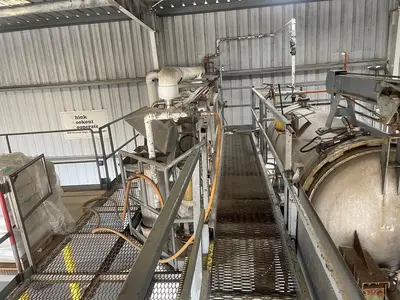

Niagara model 48H-430-4 horizontal pressure leaf filter with vertical leaves, featuring a 48" diameter vessel. The plates measure 34" x 38" OD and 31" x 35" ID, constructed from 316 stainless steel with 24X110 non-calendered standard wire diameter and a 4x4 mesh non-calendered pre-stretched drain screen. The package also includes two stainless steel mix tanks\ with capacities of 1,270 gallons (large) and 880 gallons (small), a Milton Roy High-Performance Diaphragm (HPD) liquid-end dosing pump, a catwalk, and an integrated powder platform. System includes overhead trolley to fully remove plates from vessel for cleaning.

Stock Number: 5991184
Manufacturer: Ametek
Model: 48-H-430

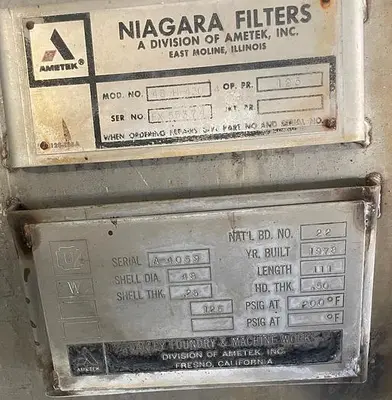

Serial Number: FX-55374
Square Feet: 430 SF
Materials of Construction: 316 Stainless Steel
National Board Number: 22
Maximum Pressure: 200 Degrees Fahrenheit
Basis: As Is, Where Is
