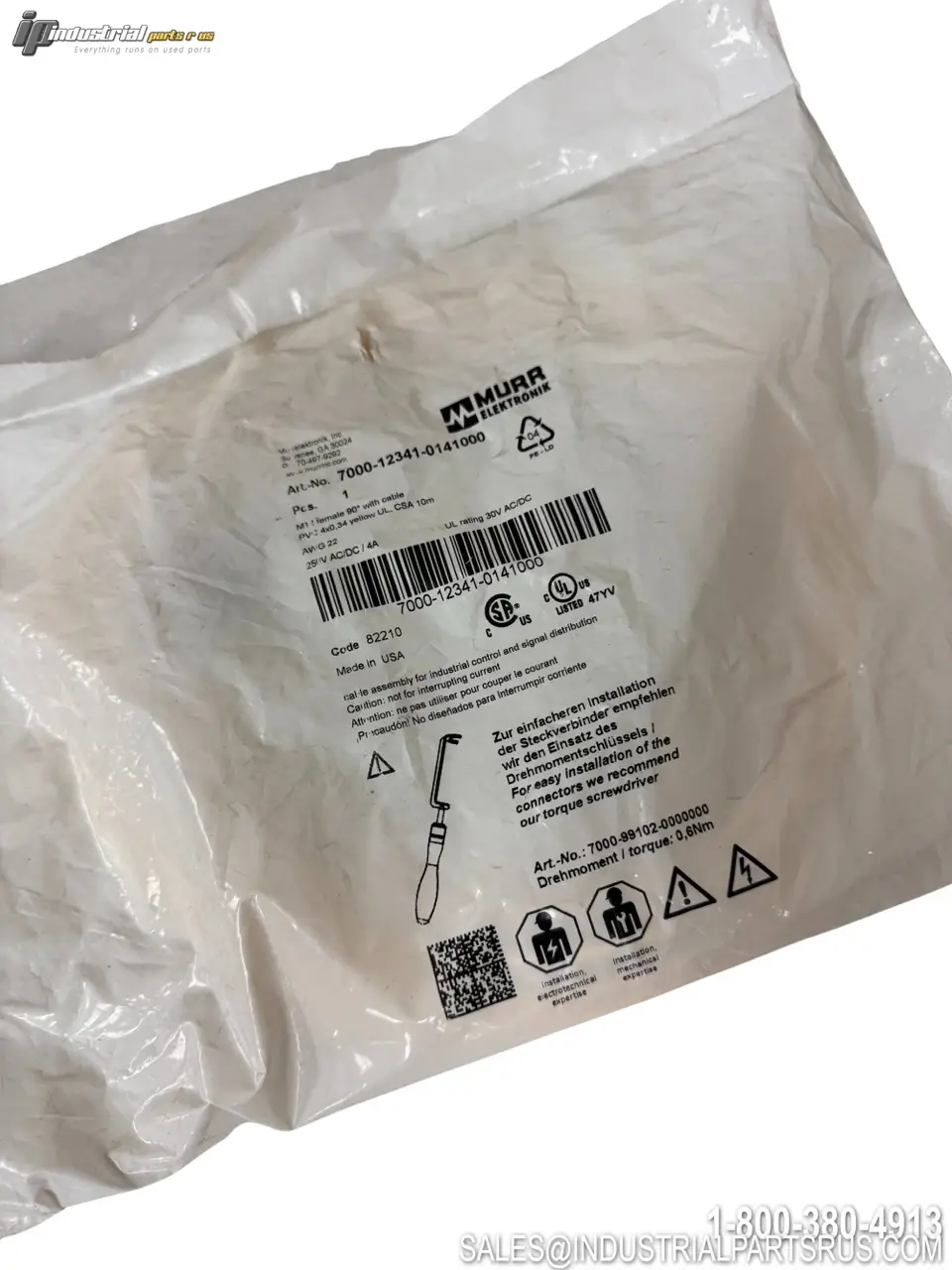

NEW MURRELEKTRONIK 7000-12341-0141000

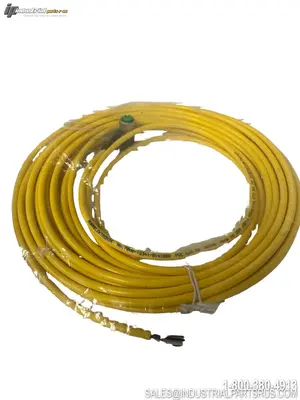

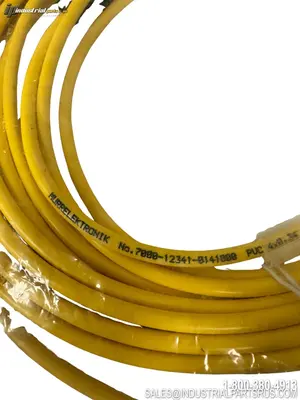

The Murrelektronik 7000-12341-0141000 is an M12 female 90° A-coded connector pre-assembled with a 10-meter yellow PVC cable (4×0.34 mm²), rated UL/CSA for industrial signal and sensor applications. The 90° angled exit design accommodates space-constrained installations, while the gold-plated copper alloy contacts and zinc die-cast locking hardware ensure reliable, long-term electrical performance. This cordset provides IP65/IP66K/IP67 ingress protection, making it well-suited for demanding industrial environments including automation, machine tooling, and process control.
Specification
Value
Brand
Murrelektronik
Model / Part Number
7000-12341-0141000
Product Type
M12 Female 90° A-Coded Sensor Cordset
Connector Gender
Female
Connector Series
M12
Cable Outlet Angle
90° (Angled)
Number of Poles
4
Connector Coding
A-Coded
Cable Length
10 m (32.8 ft)
Cable Jacket Material
PVC
Cable Cross-Section
4 × 0.34 mm²
Cable Color
Yellow (YE)
Operating Voltage
Max. 250 V AC/DC
Operating Voltage (UL Listed)
Max. 30 V AC/DC
Current Rating per Contact
Max. 4 A
Rated Surge Voltage
2.5 kV
Material Group
IEC 60664-1, Category I
Ingress Protection
IP65, IP66K, IP67 (EN 60529 / EN IEC 60529)
Pollution Degree
3
Screw Thread
M12 × 1 mm
Tightening Torque
0.6 Nm (recommended)
Width Across Flats
SW13
Contact Material
Copper Alloy
Contact Coating
Gold Plated
Housing Material
Plastic (chemical and oil resistant)
Locking Material
Zinc Die Casting, Matte Nickel Plated
Gasket Material
FKM
Suitable for Corrugated Tube (Internal Ø)
10 mm
Mounting Method
Inserted, Screwed (with vibration protection)
Operating Temperature
-25°C to +80°C
Certifications
UL Listed, CSA
End 2 (Termination)
Open Ended / Bare Leads
We warranty all items for 30 days from date of purchase.
