USED OMRON H3Y-2-

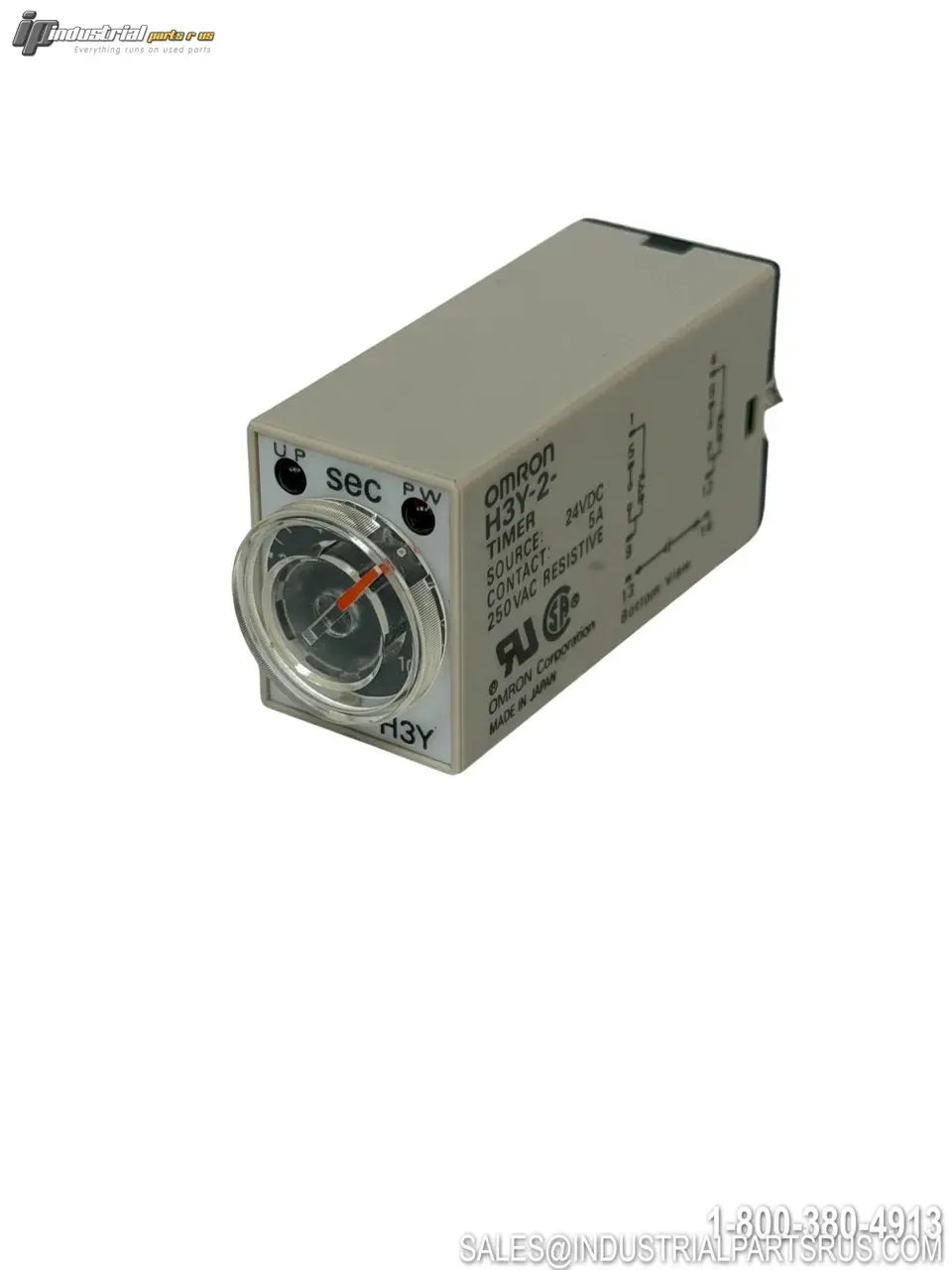

The Omron H3Y-2- is a miniature solid-state, power ON-delay timer relay from Omron's H3Y series. It features a DPDT (Double Pole Double Throw) contact output, an 8-pin plug-in octal terminal configuration, and a large transparent time-setting knob for easy analog adjustment without programming tools. Designed for industrial control panels and machine automation, it is pin-compatible with Omron's MY-series power relays and supports DIN rail or surface mounting via socket. Conforms to EMC standards with IP40 protection and dual LED indication for power and output status.
Specification
Value
Brand
Omron
Model / Part Number
H3Y-2-
Series
H3Y
Product Type
Solid-State Time Delay Relay (Timer)
Operating Mode
Power ON-Delay / Time-Limit Operation
Resetting System
Self-Resetting (Auto Reset)
Output Contact Type
DPDT (Double Pole Double Throw)
Contact Rating
5 A at 250 VAC, resistive load (cosφ = 1)
Minimum Applicable Load
1 mA at 5 VDC (P reference value)
Contact Material
Silver (Ag)
Supply Voltage Options
12 VDC, 24 VDC, 48 VDC, 100–120 VAC, 200–230 VAC (variant-specific; see label)
Coil Voltage (This Unit)
See label — suffix not specified
Operating Voltage Range (AC/DC)
85%–110% of rated supply voltage (90%–110% for 12 VDC)
Power Consumption (Relay ON, 24VDC)
Approx. 1.1 W
Power Consumption (Relay OFF, 24VDC)
Approx. 0.1 W
Timing Range
0.5 s to 60 s (variant-specific; range suffix appended to part number)
Terminal Configuration
8-Pin Plug-In (Octal)
Mounting Type
DIN Rail (35 mm) or Surface Mount via Socket
Compatible Sockets
Omron PYF08A, PTF08A
MY Relay Compatible
Yes — pin-compatible with Omron MY-series relays
LED Indication
Power and Output Status LEDs
Time Setting
Large transparent analog dial knob; flat-blade or Phillips screwdriver compatible
Body Color
Beige
Approx. Weight
Approx. 50 g
Mechanical Life
10,000,000 operations min. (no load, 1,800 ops/h)
Electrical Life (H3Y-2)
500,000 operations min. (5 A at 250 VAC, resistive, 1,800 ops/h)
Dielectric Strength
2.5 kV/2 (per EN 61812-1 / IEC 60664-1)
Certifications
UL 508, CSA C22.2 No. 14, Lloyds, CCC (GB/T 14048.5); EN 61812-1; IEC 60664-1
Typical Applications
Motor starter sequencing, conveyor synchronization, HVAC fan run-on, safety interlock delays
