Used Gerhart PTF Semi-Automatic Top Palletized Drum Filler

Manufacturer Information
Manufacturer: Gerhart
Model: PTF
Equipment Type: Semi-Automatic Top Palletized Drum Filler
Condition: Used
Main Product Description

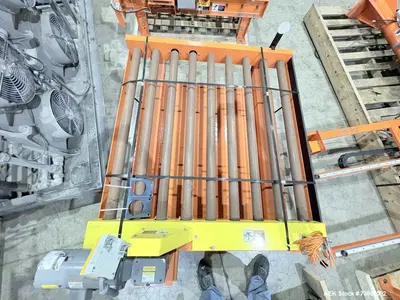

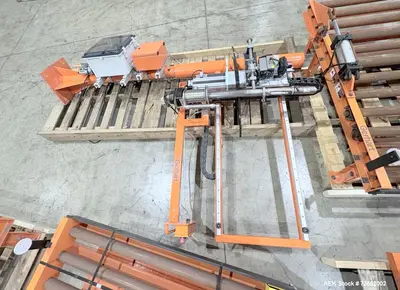

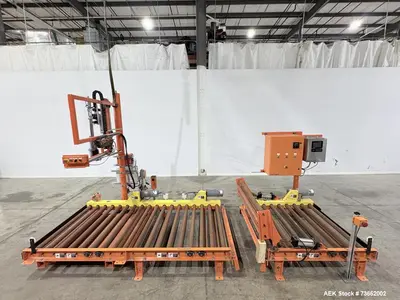

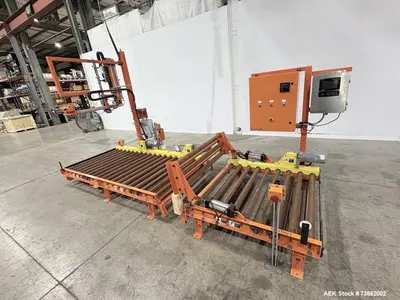

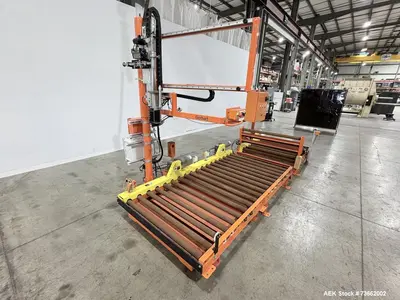

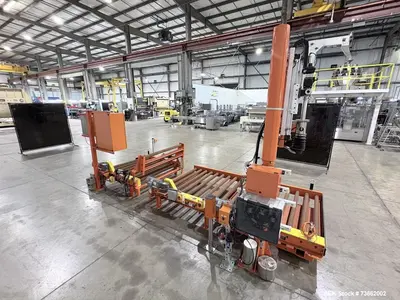

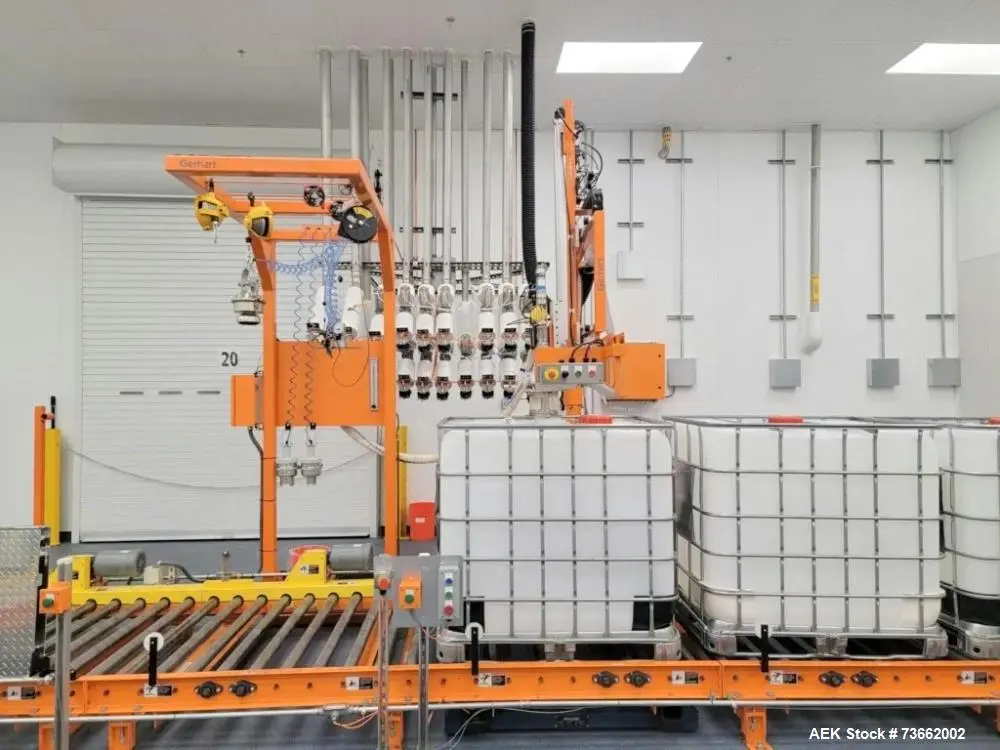

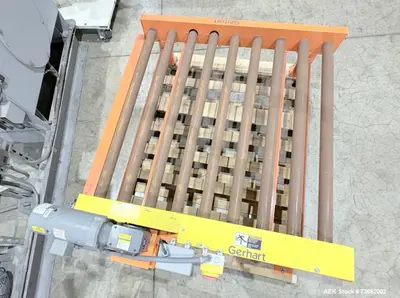

Used Gerhart Model PTF semi-automatic top palletized drum filler equipped with two reversible powered infeed conveyors and one reversible powered filler conveyor. The conveyors provide a 51" effective width and include a pop-up section designed to provide 12" garage door clearance between the infeed conveyors. The filling system features a carbon steel filler frame with powder-coated finish, a 1" tri-clamp product inlet, 1" 304 stainless steel product flow control, and 304 stainless steel wetted parts. Filling controls include bulk and dribble flow modes, a no-container/no-fill safety interlock, lance up/down controls, start and stop controls, and an end-of-fill purge cycle. The system also includes alpha-numeric lot-number entry at the beginning of a fill cycle and a 12" color touchscreen operator interface.
Specifications

Manufacturer: Gerhart
Model: PTF
Type: Semi-automatic top palletized drum filler
Filling configuration: Top fill
Infeed conveyors: (2) powered
Infeed conveyor operation: Reversible
Filler conveyor: (1) powered
Filler conveyor operation: Reversible
Conveyor effective width: 51"
Conveyor feature: Pop-up section
Garage door clearance: 12"
Filler frame material: Carbon steel
Frame finish: Powder-coated paint
Product inlet: 1" tri-clamp
Product flow control: 1" 304 stainless steel
Wetted parts: 304 stainless steel
Fill controls: Bulk and dribble
Safety feature: No-container/no-fill interlock
Lance control: Up/down
Operator controls: Floor mounted
Control functions: Lance up/down, start, and stop
End-of-fill feature: Purge cycle
Lot tracking: Alpha-numeric lot-number entry at start of fill
Operator interface: 12" color touchscreen

Applications

Drum filling operations
Palletized drum filling
Liquid packaging lines
Bulk liquid filling
Chemical processing facilities
Industrial liquid handling
Batch production operations
Manufacturing and packaging plants
Process liquid transfer and filling

Suitable Products / Materials
Suitability depends on product characteristics and compatibility with the 304 stainless steel wetted parts.

Industrial liquids
Process liquids
Chemicals compatible with 304 stainless steel
Water-based products
Oils and other pumpable liquids, subject to viscosity and equipment configuration
Cleaning products compatible with the wetted materials
Other bulk liquids requiring controlled bulk and dribble filling

FAQs

What is the Gerhart Model PTF used for?
The Gerhart PTF is a semi-automatic filling system designed for top filling palletized drums and similar containers with liquid products.
Does this Gerhart drum filler include conveyors?
Yes. The system includes two powered reversible infeed conveyors and one powered reversible filler conveyor with a 51" effective width.
What materials contact the product?
The wetted parts are 304 stainless steel, and the product flow control is also constructed of 304 stainless steel.
Does the filler have bulk and dribble filling controls?
Yes. The Gerhart PTF is equipped with bulk and dribble flow controls for improved control during the filling cycle.
Does this machine have a no-container/no-fill feature?
Yes. A no-container/no-fill safety interlock is included.
What operator interface is included?
The system includes a 12" color touchscreen operator interface as well as floor-mounted lance up/down, start, and stop controls.
Does the filler have an end-of-fill purge cycle?
Yes. The equipment includes a purge cycle at the end of the filling process.
Can lot numbers be entered into the filling system?
Yes. Alpha-numeric lot-number information can be entered at the start of the fill.
Can Aaron Equipment help determine whether this drum filler is right for my application?
Yes. Aaron Equipment can help review your product, container size, production requirements, materials of construction, and facility needs to determine whether this Gerhart drum filling system is appropriate for your process.
Does Aaron Equipment offer shipping for this Gerhart drum filler?
Aaron Equipment can assist with shipping and logistics for used industrial equipment. Contact Aaron Equipment for current freight options, preparation requirements, and shipping information based on the equipment destination.
