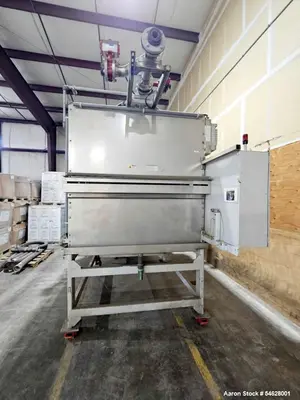

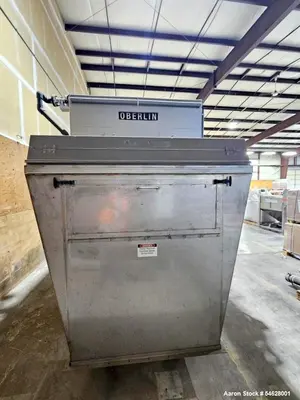

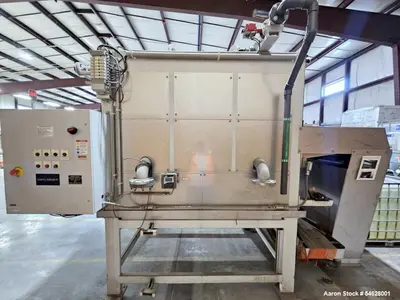

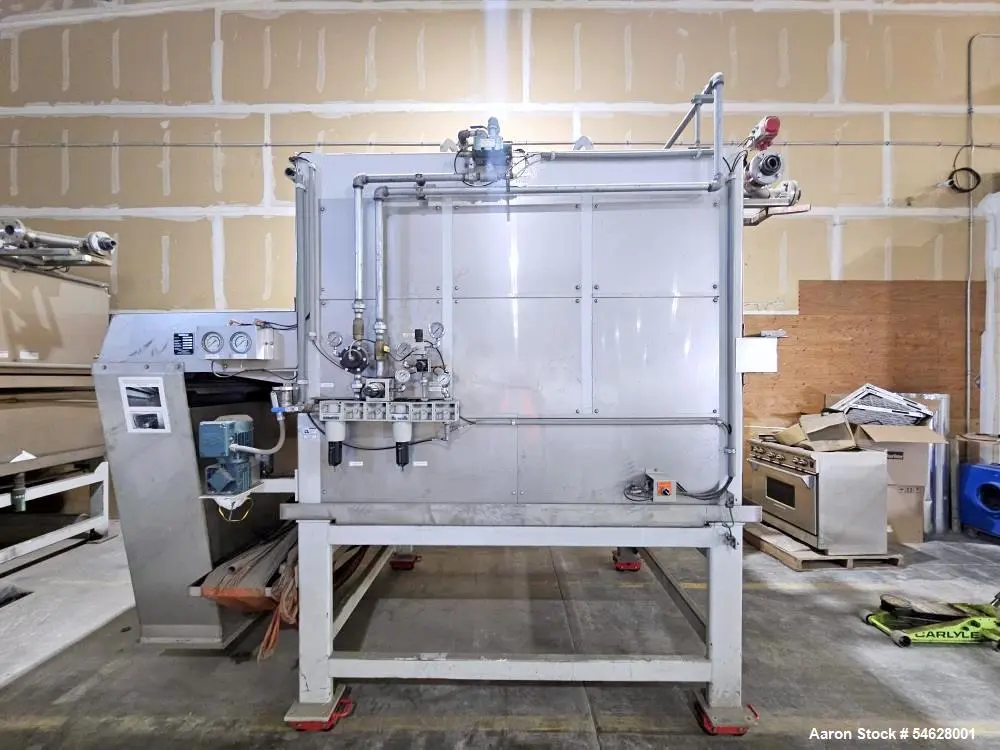

USED OBERLIN OPF 24

Manufacturer Information
Manufacturer: Oberlin
Model: OPF-24

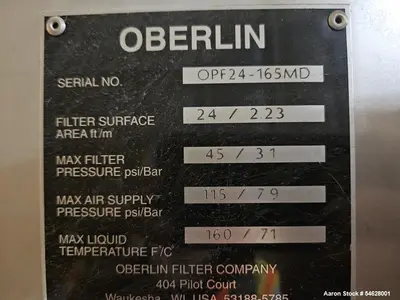

Serial/Configuration: OPF24-165MD
Equipment Type: Fully Automatic Horizontal Pressure Filtration System
Main Product Description
Used Oberlin Model OPF-24 fully automatic horizontal pressure filtration system featuring 24 square feet of filtration area and an automatic operating cycle designed for pressure filtration, filter cake formation, air drying, media advancement, and dry-cake discharge. The system has a nominal capacity of up to 960 GPM on certain water-based applications or 400 GPM on 200-SSU oil. It is rated for a maximum filter pressure of 45 psi, maximum air supply pressure of 115 psi, and maximum liquid temperature of 160°F. The OPF-24 can operate with disposable filter media or a reusable cleanable belt, making it suitable for automated liquid-solid separation and industrial filtration applications.
Specifications

Manufacturer: Oberlin
Model: OPF-24
Serial/Configuration: OPF24-165MD
Type: Fully automatic horizontal pressure filtration system
Filtration Area: 24 sq ft
Filtration Area Metric: Approximately 2.23 m²
Nominal Capacity: Up to 960 GPM on certain water-based applications
Oil Capacity: Up to 400 GPM on 200-SSU oil
Maximum Filter Pressure: 45 psi
Maximum Air Supply Pressure: 115 psi
Maximum Liquid Temperature: 160°F
Filtration Cycle: Automatic
Cycle Functions: Pressure filtration, cake formation, air drying, media advancement, and dry-cake discharge
Filter Media: Disposable filter media or reusable cleanable belt
Approximate Length: 145"
Approximate Width: 77"
Approximate Height: 82"

Applications

Industrial liquid-solid separation
Coolant filtration
Process liquid filtration
Oil filtration
Water-based fluid filtration
Filter cake formation and dewatering
Automated solids removal
Manufacturing process filtration
Metalworking fluid filtration
High-flow industrial filtration

Suitable Products / Materials

Water-based process liquids
Metalworking coolants
Cutting fluids
Industrial oils
200-SSU oil
Process fluids containing suspended solids
Liquids requiring filter cake removal
Industrial wastewater or process water, where compatible with system design

FAQs

What is the filtration area of the Oberlin OPF-24?
The system provides 24 square feet, approximately 2.23 m², of filtration area.
What is the flow capacity of this Oberlin pressure filtration system?
Nominal capacity is up to 960 GPM on certain water-based applications or up to 400 GPM when filtering 200-SSU oil. Actual capacity will depend on the liquid, solids loading, filter media, and operating conditions.

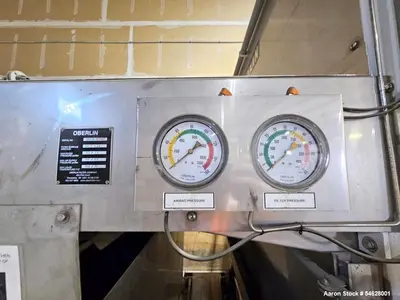

What is the maximum operating pressure?
The maximum filter pressure is rated at 45 psi.
What is the maximum air supply pressure?
Maximum air supply pressure is 115 psi.
What is the maximum liquid temperature?
The system is rated for liquids up to 160°F.
Is the filtration process automatic?
Yes. The automatic cycle includes pressure filtration, cake formation, air drying, media advancement, and dry-cake discharge.
What type of filter media can the OPF-24 use?
The system can use disposable filter media or a reusable cleanable belt.
What are the approximate dimensions?
The approximate footprint is 145" long x 77" wide x 82" high.
Can Aaron Equipment help determine whether this Oberlin OPF-24 is suitable for my application?
Yes. Aaron Equipment can help review your process requirements, product characteristics, desired flow rate, and other application details to help determine whether this filtration system may be suitable for your operation.
Can Aaron Equipment assist with shipping this filtration system?
Yes. Aaron Equipment can assist with coordinating freight and shipping options for industrial equipment. Contact Aaron Equipment with your destination and delivery requirements for additional shipping information.
