USED OBERLIN OPF 24

Manufacturer Information
Manufacturer: Oberlin
Model: OPF-24
Serial/Configuration: OPF24-167MD
Equipment Type: Fully Automatic Horizontal Pressure Filtration System
Main Product Description

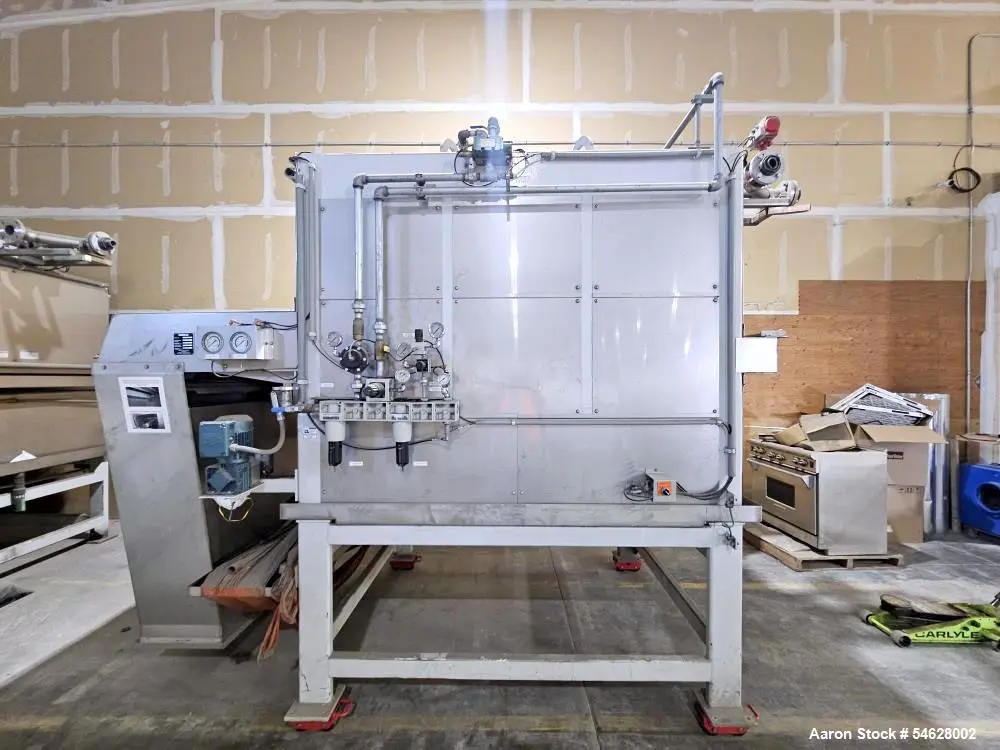

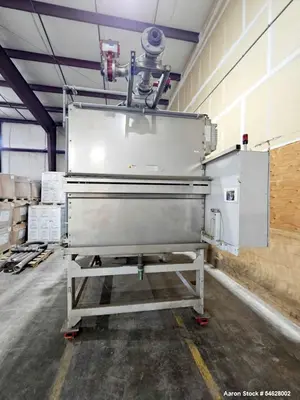

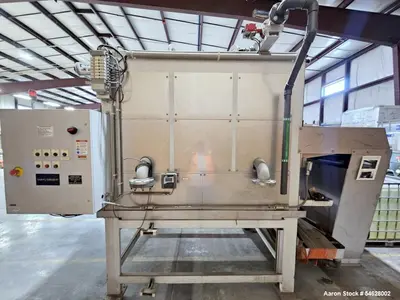

Used Oberlin Model OPF-24 fully automatic horizontal pressure filtration system featuring 24 square feet (2.23 m²) of filtration area with nominal capacity up to 960 GPM on certain water-based applications or 400 GPM on 200-SSU oil. The system is rated for a maximum filter pressure of 45 psi, maximum air supply pressure of 115 psi, and maximum liquid temperature of 160°F. Its automatic operating cycle includes pressure filtration, filter cake formation, air drying, media advancement, and dry-cake discharge. The OPF-24 can operate using disposable filter media or a reusable cleanable belt for automated industrial liquid-solid separation and process filtration applications.
Specifications

Manufacturer: Oberlin
Model: OPF-24
Serial/Configuration: OPF24-167MD
Type: Fully automatic horizontal pressure filtration system
Filtration Area: 24 sq ft
Filtration Area Metric: 2.23 m²
Nominal Capacity: Up to 960 GPM on certain water-based applications
Oil Capacity: Up to 400 GPM on 200-SSU oil

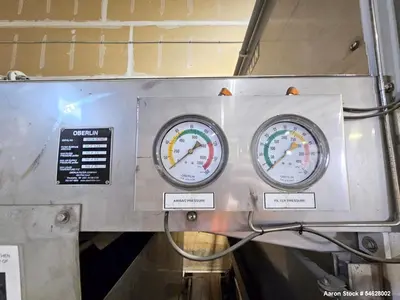

Maximum Filter Pressure: 45 psi

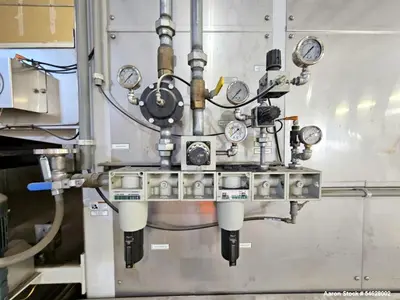

Maximum Air Supply Pressure: 115 psi
Maximum Liquid Temperature: 160°F
Filtration Cycle: Automatic
Cycle Functions: Pressure filtration, cake formation, air drying, media advancement, and dry-cake discharge
Filter Media: Disposable filter media or reusable cleanable belt
Approximate Length: 145"
Approximate Width: 77"
Approximate Height: 82"

Applications

Industrial liquid-solid separation
Process liquid filtration
Coolant filtration
Oil filtration
Water-based fluid filtration
Filter cake formation
Filter cake dewatering
Automated solids removal
Metalworking fluid filtration
Manufacturing process filtration

Suitable Products / Materials

Water-based process liquids
Industrial oils
200-SSU oil
Metalworking coolants
Cutting fluids
Process fluids containing suspended solids
Liquids requiring filter cake separation
Compatible industrial process water

FAQs

What is the filtration area of the Oberlin OPF-24?
The Oberlin OPF-24 provides 24 square feet, or approximately 2.23 m², of filtration area.
What is the capacity of this Oberlin OPF-24 filtration system?
Nominal capacity is up to 960 GPM on certain water-based applications or up to 400 GPM when filtering 200-SSU oil. Actual filtration rates can vary depending on the liquid, solids loading, filter media, and operating conditions.
What is the maximum filter pressure?
The system is rated for a maximum filter pressure of 45 psi.
What is the maximum air supply pressure?
Maximum air supply pressure is 115 psi.
What is the maximum liquid temperature?
The Oberlin OPF-24 is rated for a maximum liquid temperature of 160°F.
Is the Oberlin OPF-24 fully automatic?
Yes. Its automatic cycle includes pressure filtration, cake formation, air drying, media advancement, and dry-cake discharge.
What type of filter media can this system use?
The system can operate with disposable filter media or a reusable cleanable belt.
What are the approximate dimensions of this filtration system?
The approximate footprint is 145" long x 77" wide x 82" high.
