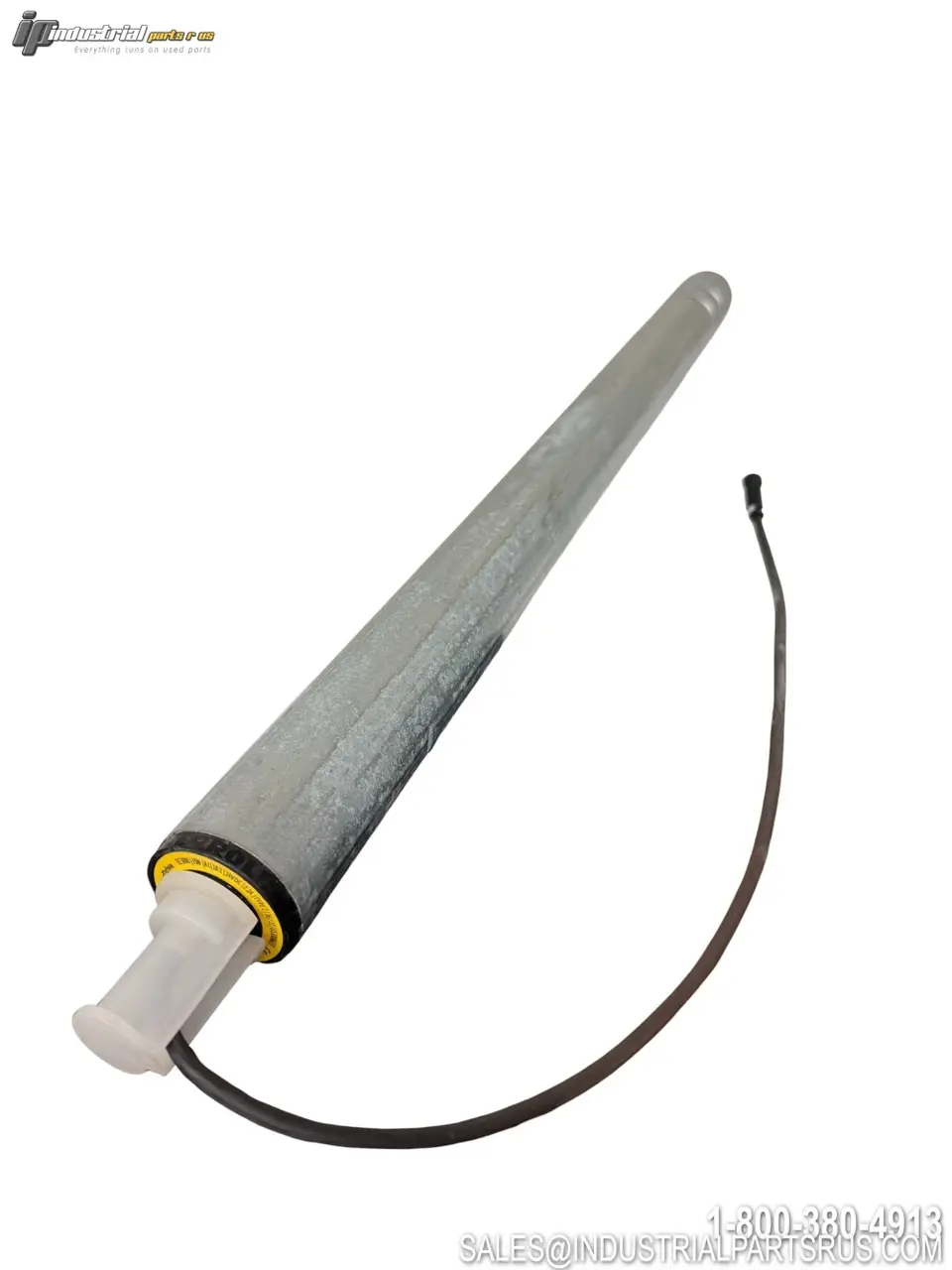

NEW INTERROLL EC5000/35W/A1/18:1/24VDC/22A/TYPE2/23/21/

The Interroll RollerDrive EC5000 is a 24 VDC brushless motorized drive roller (MDR) designed for integration into zero-pressure accumulation (ZPA) conveyor systems. This unit features 35 watts of power, an 18:1 gear ratio, and an analogue interface (AI), making it suitable for unit-load conveying applications such as boxes, containers, and totes. Motors, motor electronics, and gears are all internally housed within the roller tube, with a 5-pin snap-in motor cable connector and an electronic holding brake (Zero-Motion-Hold) for use on inclined or gravity conveyors.
Specification
Value
Brand
Interroll
Model / Part Number
EC5000/35W/A1/18:1/24VDC/22A/TYPE2/23/21/
Product Series
RollerDrive EC5000
Rated Power
35 W
Interface Type
Analogue Interface (AI)
Gear Ratio
18:1
Rated Voltage
24 V DC
Rated Current
2.2 A
Starting (Peak) Current
5.5 A
Drive Head / Type Rating
Type 2 (Round Belt, 2 Grooves)
Tube Diameter
50 mm (1.9")
Reference / Ordering Length
23 inches
Between Frame (Inside Frame Width)
21 inches
Motor Type
Brushless DC (BLDC), internal commutation electronics
Protection Rating (IP)
IP54
Ambient Operating Temperature
0 to 40 °C (32 to 104 °F)
Motor Shaft / Fastening
Stainless steel, 11 mm HEX, M12 x 1 thread
Motor Cable Length
500 mm (with 5-pin snap-in connector)
Max Reference Length
1500 mm
Tube Material
Zinc-plated steel / Stainless steel options
Max Conveying Speed (50mm roller, 18:1)
~1.00 m/s (varies by application)
Electronic Holding Brake
Yes (Zero-Motion-Hold)
Energy Recovery
Yes (regenerative braking)
Max Noise Emission (installed)
55 dB(A) (application-dependent)
Breakaway Torque Max
13 Nm
Overload Protection
Yes (overtemperature and blockage protection)
Compatible Controls
Interroll MultiControl AI, DriveControl 20, DriveControl 54, ZoneControl, ConveyorControl
Anti-Static Version
Yes (available, <10⁶ Ω)
Max Incline
2.5°
We warranty all items for 30 days from date of purchase.
