NEW INTERROLL 20550-059349

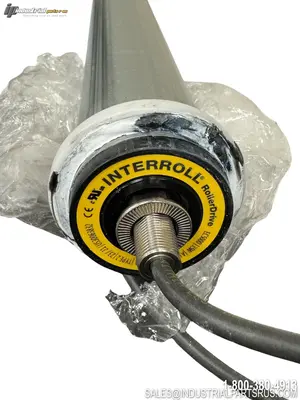

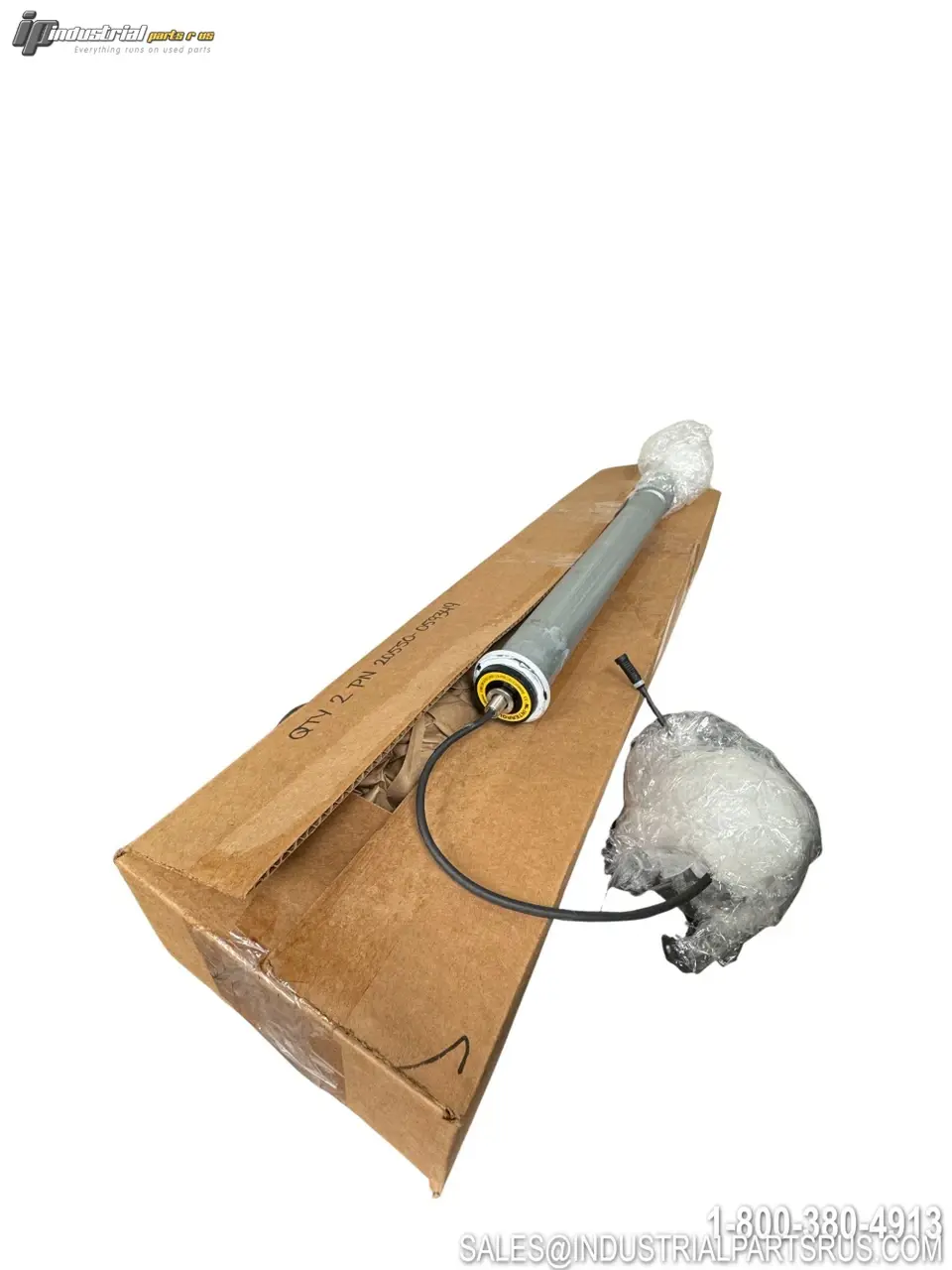

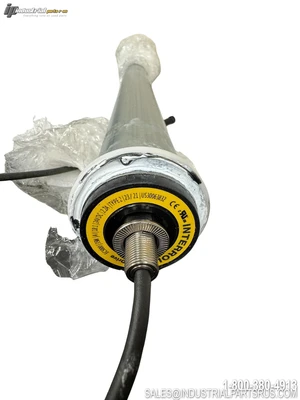

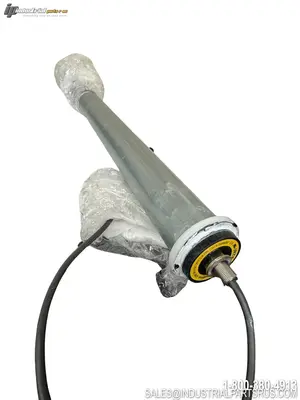

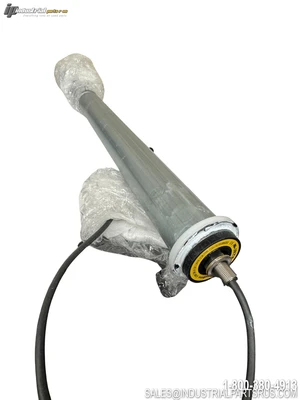

The Interroll 20550-059349 is a custom-configured EC5000 RollerDrive Assembly measuring 25.25 inches in body face (BF) length. This motorized drive roller features a custom 2-groove tube profile at positions 3.53" and 6.94", and includes two Delrin retaining rings. It is a self-contained roller unit with an integrated brushless DC (electronically commutated) drive motor, gearbox, and electronics, rated at 35W (0.047 HP) with IP54 enclosure protection. Designed for use in zero-pressure accumulation conveyor zones and modular conveyor systems in distribution, e-commerce, and intralogistics applications.
Specification
Value
Brand
Interroll
Model / Part Number
20550-059349
Product Type
Motorized Drive Roller Assembly
Series
EC5000 RollerDrive
Body Face (BF) Length
25.25 inches (641.35 mm)
Groove Configuration

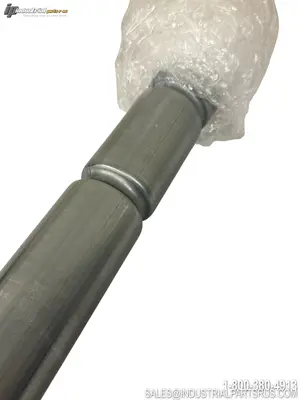

Custom 2-Groove @ 3.53" and 6.94"
Number of Grooves
2
Groove Positions
3.53" and 6.94" from reference end
Retaining Rings
2x Delrin Retaining Rings (included)
Motor Type
Electronically Commutated (EC) / Brushless DC
Operating Voltage
24 VDC or 48 VDC (EC5000 platform)
Application
Zero Pressure Accumulation Conveyor Zones
Compatible Platform
Interroll EC5000 / DC Conveyor Platform
Drive Belt Compatibility
PolyVee Belt Drive
Configuration Note
Custom / Non-Standard Assembly
