USED 2022 GARDNER DENVER EAU99AA

OVERVIEW

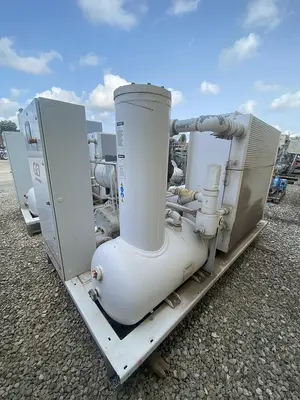

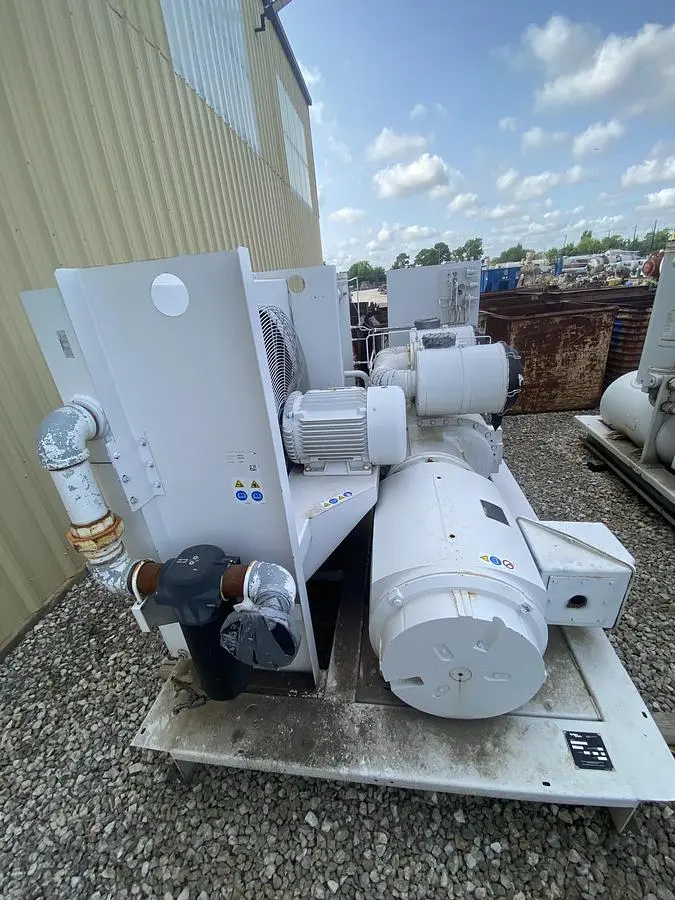

This is a Gardner Denver Electra-Saver rotary screw air compressor, model EAU99AA, manufactured in September 2022. It is rated for 125 PSIG full load operating pressure and driven by a 250 HP Marathon electric motor. The package includes an integral air-cooled fin fan aftercooler and a Benshaw 2400 VAC motor control panel. Estimated hours are approximately 600. Ready for inspection, contact us to schedule.

EQUIPMENT SPECIFICATIONS

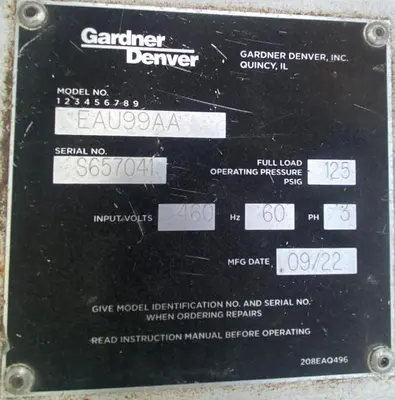

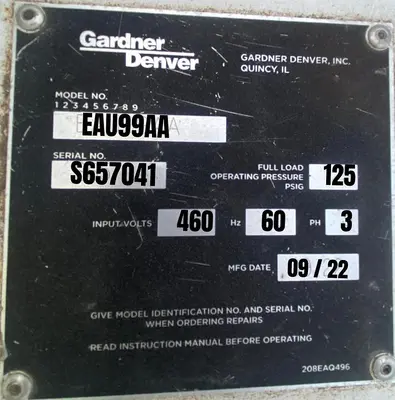

Compressor:

Manufacturer: Gardner Denver, Quincy, IL
Equipment Type: Rotary Screw Air Compressor, Electra-Saver Series
Model: EAU99AA

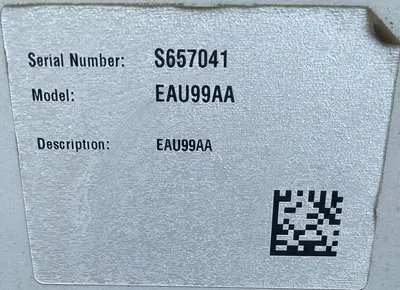

Serial No.: S657041
Date of Manufacture: 09/2022
Full Load Operating Pressure: 125 PSIG
Input Volts: 460, Hz: 60, Phase: 3
Estimated Hours: Approximately 600

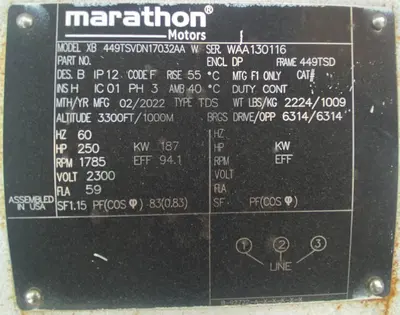

Motor:

Manufacturer: Marathon Motors
Model: XB 449TSVDN17032AA W
Serial No.: WAA130116
Frame: 449TSD
Horsepower: 250 HP
Kilowatts: 187 KW
RPM: 1,785
Voltage: 2,300 V
Full Load Amps: 59
Efficiency: 94.1%
Phase: 3, Hz: 60
Service Factor: 1.15
Enclosure: DP (drip-proof)
Assembled in USA


Controls and Cooling:

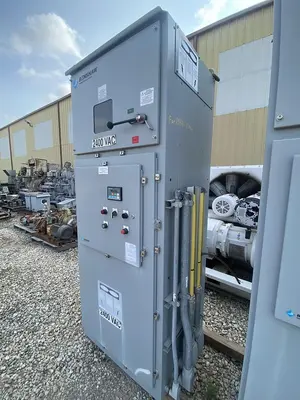

Benshaw 2400 VAC motor control panel
Air-cooled fin fan cooler
Rated to 203 PSI
Max cooling temp rating: 212°F


KEY FEATURES AND BENEFITS


Gardner Denver Electra-Saver rotary screw design
250 HP Marathon motor, 2,300 V, high efficiency (94.1%)
125 PSIG full load operating pressure
Low estimated hours (approximately 600)
Integral air-cooled fin fan aftercooler
Benshaw 2400 VAC control panel
Skid-mounted, ready to move


SYSTEM COMPONENTS

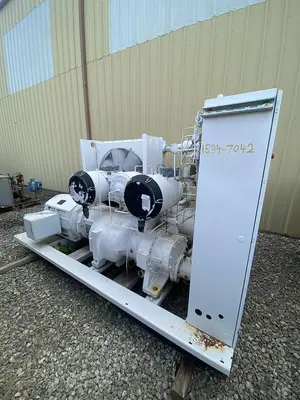

Compressor: Gardner Denver EAU99AA rotary screw airend, mounted on skid base
Motor: Marathon 250 HP, 2,300 V, 1,785 RPM, frame 449TSD
Cooling: Air-cooled fin fan cooler with blower motor

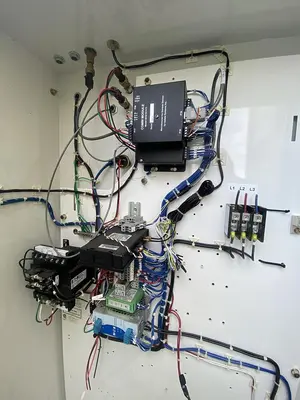

Controls: Benshaw 2400 VAC panel, control interface and pushbutton station
Trim: Piping, isolation valves, filtration


SPECIFICATIONS SUMMARY


Manufacturer: Gardner Denver
Model: EAU99AA
Horsepower: 250 HP (Marathon motor)
Full Load Operating Pressure: 125 PSIG
Input Volts: 460 (compressor), 2,300 (motor)
Serial No.: S657041
Year Built: 2022
Estimated Hours: Approximately 600
Condition: Used, running hours as noted


ADDITIONAL INFORMATION


Condition: Used, low hours, running condition
Manufacturer: Gardner Denver, Quincy, IL
Model: EAU99AA, 250 HP
Year Built: 2022
Rated: 125 PSIG
Inspection: Welcome, contact us to schedule
