USED CAT 800T-A2A

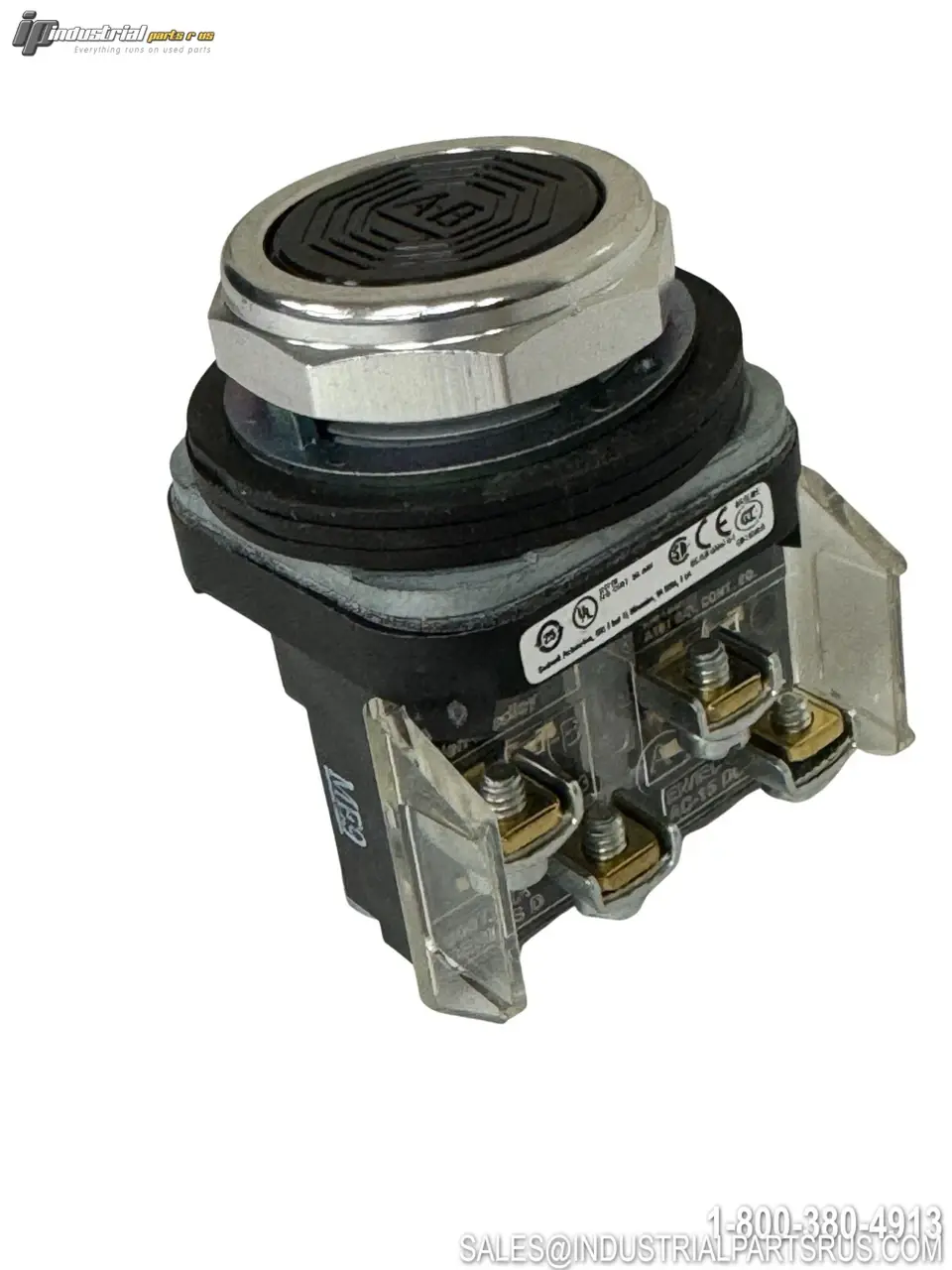

The Allen-Bradley 800T-A2A is a 30.5 mm non-illuminated, momentary-action push button from the Bulletin 800T heavy-duty metal operator series. It features a black flush head actuator, a die-cast zinc alloy operator bushing with diaphragm seal, and includes a standard 800T-XA contact block providing 1 Normally Open and 1 Normally Closed contacts on screw terminals. The unit is rated NEMA Type 4/13 (watertight and oiltight) and is designed for demanding industrial panel applications.
Specification
Value
Brand
Allen-Bradley
Model / Part Number
800T-A2A
Manufacturer
Rockwell Automation
Product Series
Bulletin 800T
Product Type
Push Button
Operator Action
Momentary
Operator Type / Actuator
Flush Head
Illumination
Non-Illuminated
Color
Black
Operator Diameter
30.5 mm
Panel Cutout Diameter
30.6 mm
Contact Configuration
1 NO / 1 NC (Standard)
Included Contact Block
800T-XA
Contact Rating (AC)
10A / 600VAC
Contact Rating (DC)
2.5A / 600VDC
Voltage Rating
600V
Current Rating
10A
Terminal Type
Screw Terminals
NEMA Enclosure Rating
Type 4/13 (Watertight / Oiltight)
Bezel / Housing Material
Metal — Die-Cast Zinc Alloy
Cap / Button Material
Thermoplastic Polyester Resin
Seal Type
Diaphragm Seal (Riveted Assembly)
Block Type
Standard
Special Head
None
Guards on Terminals
None
Certifications
CCC, CE, CSA, cUL, KC, Marine, UL
Minimum Enclosure Size
110 mm × 80 mm × 70 mm
We warranty all items for 30 days from date of purchase.
