USED CAT 800T-86A

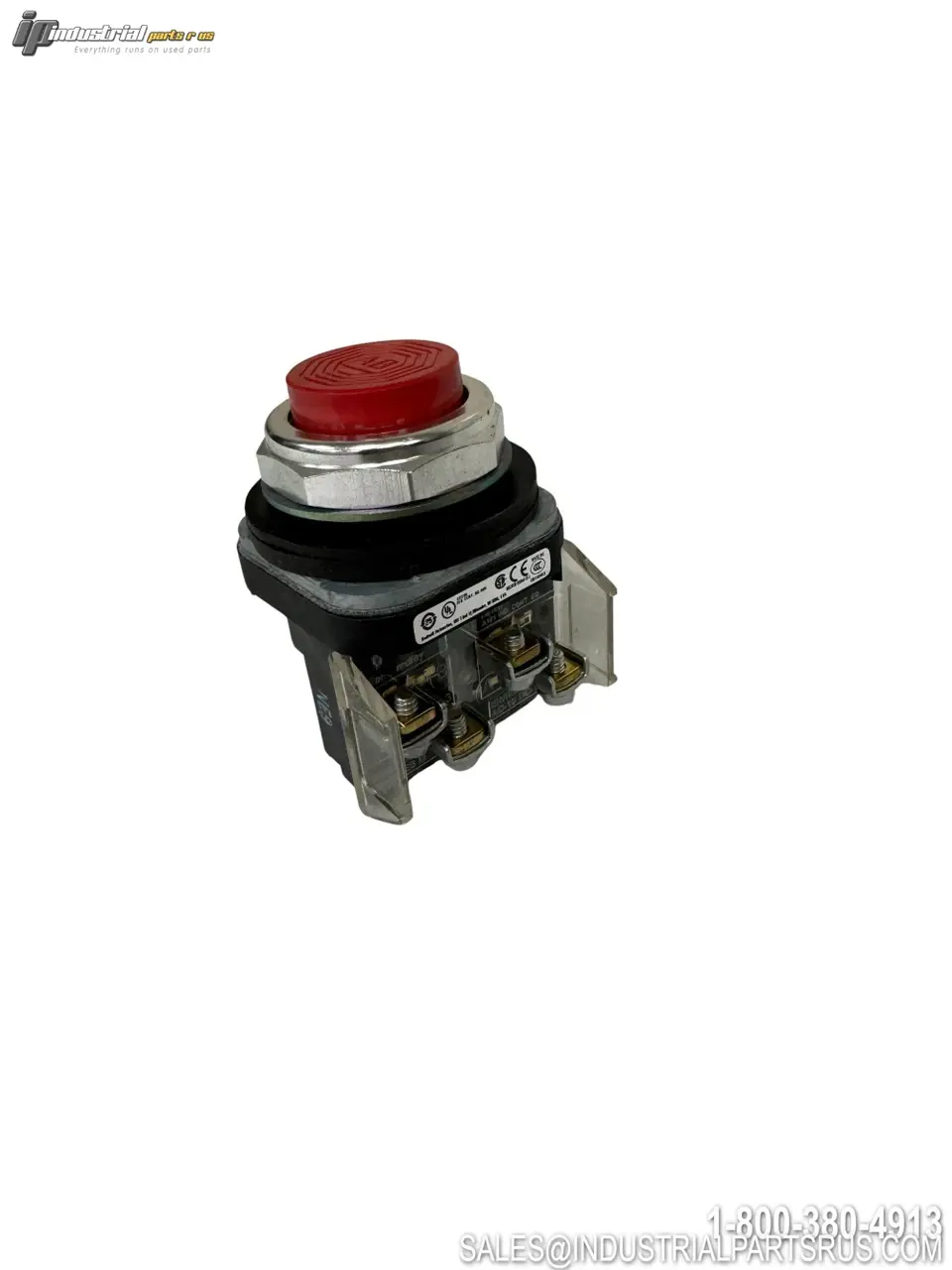

The Allen-Bradley 800T-86A is a 30 mm red push-pull mushroom head push button from the Bulletin 800T series, designed for demanding industrial control panel applications. It features a two-position maintained action with 1 Normally Open (N.O.) and 1 Normally Closed (N.C.) contact block and carries a NEMA/UL Type 4/13 enclosure rating. The 800T series uses metal (die-cast zinc) construction and shares the standard 30 mm North American panel cutout used across the Bulletin 800T product family.
Specification
Value
Brand
Allen-Bradley
Model / Part Number
800T-86A
Series
T
Product Type
Push-Pull Push Button
Bulletin
800T
Operator Type
Push-Pull (Mushroom Head)
Button / Cap Color
Red
Number of Positions
2 (Maintained)
Contact Configuration
1 N.O. / 1 N.C.
Contact Block Type
Standard Shallow Block
Panel Cutout Diameter
30 mm (30.5 mm)
NEMA / UL Enclosure Rating
Type 1 / 4 / 12 / 13
IP Rating
IP65
Body / Operator Material
Metal (Die-Cast Zinc)
Illuminated
No
Hazardous Location Rating
No (Standard)
Maximum Continuous Current (Ith)
5 A
Voltage Rating
600V AC
Electrical Design Life
1,000,000 operations (at max. rated load)
Finger Safe Guards
No Guards
Manufacturer
Rockwell Automation / Allen-Bradley
Platform / Family
Bulletin 800T 30mm Push Button
We warranty all items for 30 days from date of purchase.
