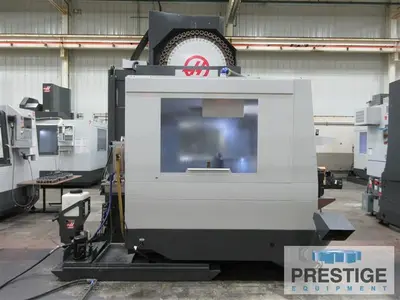

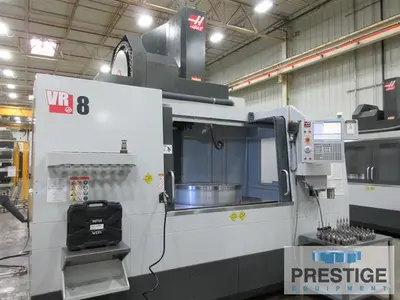

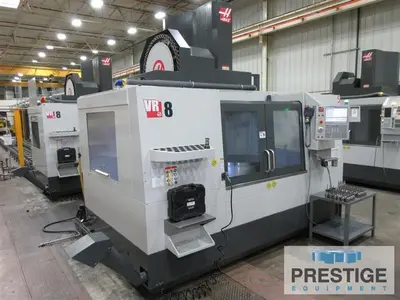

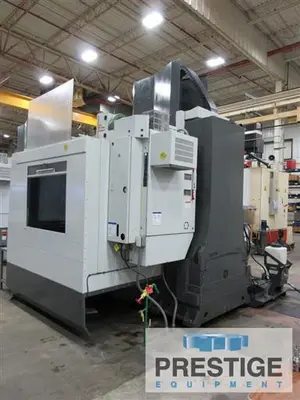

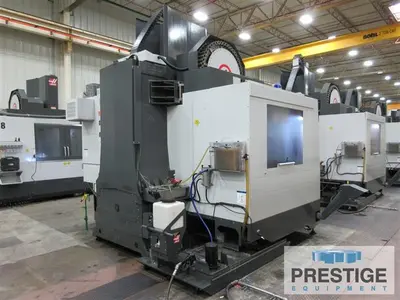

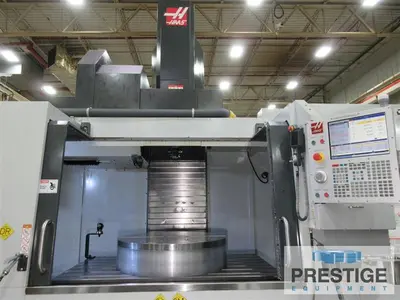

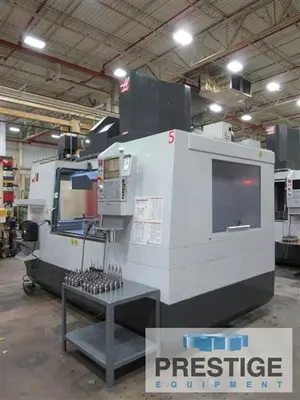

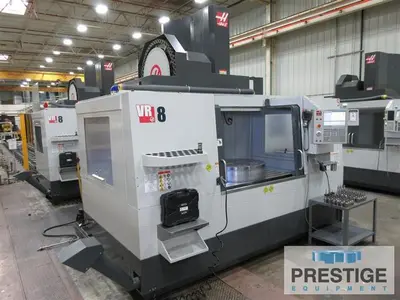

USED 2022 HAAS VR-8 5-AXIS

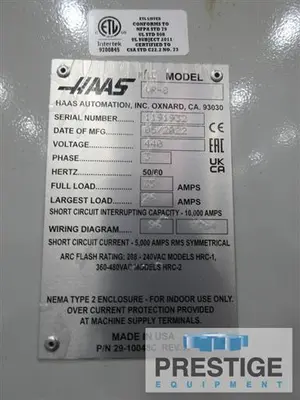

Serial Number: 1191932

SPECIFICATIONS:
X-Axis Travel: 64"
Y-Axis Travel: 40"
Z-Axis Travel: 42"

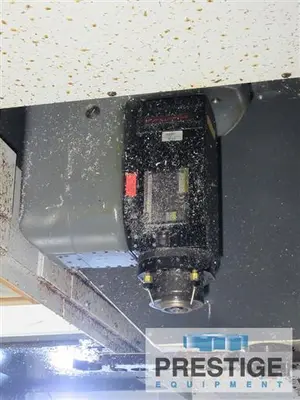

SPINDLE HEAD:
Spindle Motor: 29 HP
Max. Spindle Speed: 20,000 RPM
Max Torque: 20 ft-lbf @ 7500 RPM
Drive System: Integral Spindle/Motor
Spindle Taper: HSK-A63

B-AXIS SPINDLE TILT:
Travel: +120/-120 Degrees
Max Tilt Speed: 120 Degrees Per Second
Torque (Continuous): 470 ft-lbf
Brake Torque: 454 ft-lbf

C-AXIS SPINDLE ROTATION:
Travel +/-: +245/-245 Degrees
Max Rotational Speed: 208 Degrees Per Second
Torque (Continuous): 285 ft-lbf
Brake Torque: 442 ft-lbf

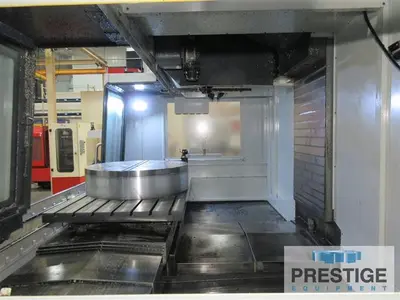

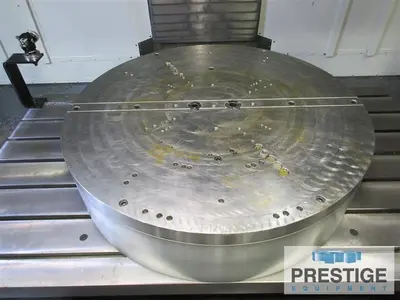

TABLE:
Table Size: 64" x 36"
T-Slot Width: 0.626"-0.630"
T-Slot Center Distance: 4.92"
Number of Standard T-Slots: 7
Max Weight on Table: 4000 Lbs.

FEEDRATES:
Max Cutting: 500 IPM
Rapids, X/Y/Z Axes:

TOOL CHANGER:
Tool Changer Capacity: 50+1
Max Tool Dia, Adjacent Full: 2.5"
Max Tool Dia, Adjacent Empty: 5"
Max Tool Length From Gage Line: 12"
Max Tool Weight: 12 Lbs.

DIMENSIONS & WEIGHTS:
Domestic Pallet: 195" x 120" x 142"
Weight: 24,800 Lbs.

Equipped With:

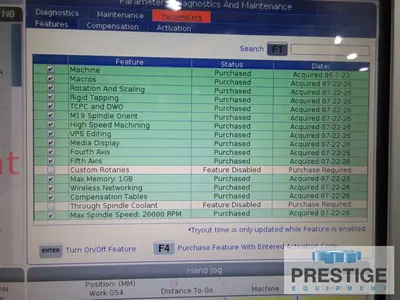

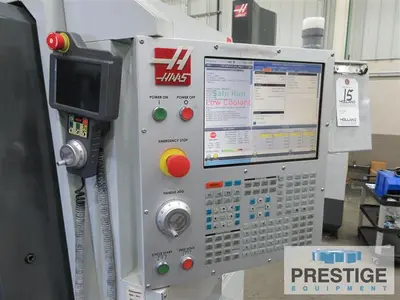

Haas 5-Axis CNC Control

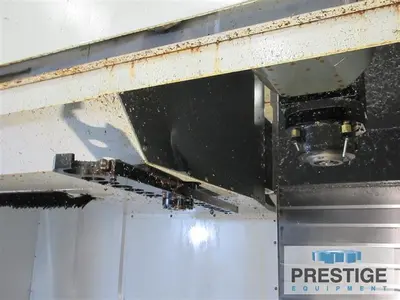

2-Axis Milling Head
20,000 RPM Max. Spindle Speed
50-Position Automatic Tool Changer
Renishaw Probe System

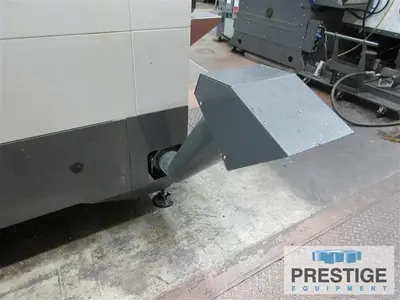

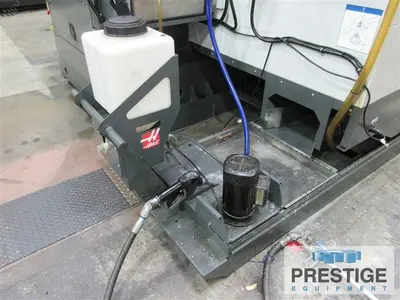

Chip Auger

LOCATION:
Ohio CNC Mold Manufacturing Facility

Features:
Haas 5-Axis CNC Control
2-Axis Tilt/Swivel Milling Head

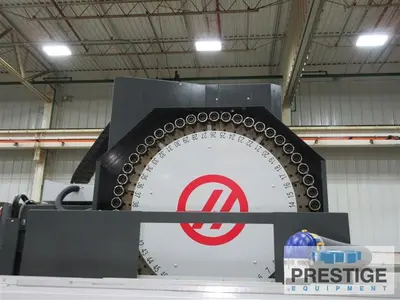

50+1 Side-Mounted Automatic Tool Changer
20,000 RPM Max. Spindle Speed
Renishaw Probe System
Chip Auger
