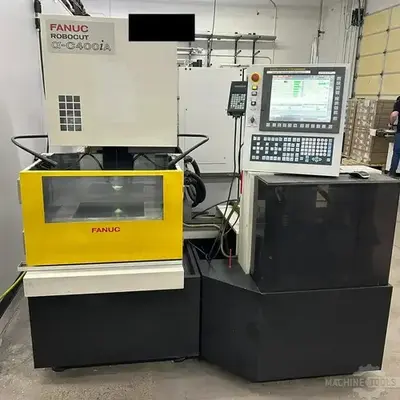

USED 2013 FANUC ROBOCUT A-C400IA
Overview
EDM Wire
Specs
Request a Quote
Add to Cart
Control: Fanuc 31i-WB
X-Axis Travel: 14.6"
Y-Axis Travel: 10.6"
Z-Axis Travel: 10"
U/V Axis Travel: 2.36" x 2.36"
Degree Taper Cutting: 30 Degree at 3.3"
Inside Tank Dimensions: 30.5" x 23.6"
Power Requirement: 200-220/3/60
Glass Scale Feedback: .00000004 Rotary
Machine Weight: 4,000 Lbs
Dielectric Capacity: 145 Gallons
Positioning Accuracy: +/- .0001
Max Workpiece Size: 30.5" x 23.6" x 10"
Max Submerged Depth: 9.84"
Max Workpiece Weight: 1,100 Lbs
Wire Diameter: .008" - .012"
Max Cutting Speed: .012 Coated Wire, 2.4" Thick, D2 33.5 Sq In/Hr
AC &: DC Generator Switchable
4MB Part Storage: AC Servo Drive Motors
Auto Wire Threading: Electric Chiller
Electronic Manuals: 10-Second Automatic Threading
13KVA Total Power: 15" Color LCD Touch Screen
Rotary Glass Scale Feedback: RS232 Ethernet Interface
Submerged Cutting: Wire Chopper
AIP2 Discharge Control: Built-in Conversational Programming
Ethernet Connectivity: Fanuc Auto Wire Feed
Keyboard / USB / CF Card and Ethernet: X / Y / U / V / Z Servo Closed Loop System
