Inline Packaging Systems Paradigm 700VS Wraparound Labeler features adjustable label heights from 1" to 4.5", and lengths from 1" to 14". It operates at variable speeds up to 1,000 IPM, achieving a maximum rate of 100 labels per minute. The label gap ranges from a standard 1/8" to 1/4" on some configurations. With a core diameter of 3", it supports rolls up to 12" in diameter. Product and label detection are facilitated by photoelectric eye systems. It operates on 120 VAC at 60 Hz with a 10-amp electrical requirement and optionally uses compressed air at 3-4 CFM at 60 PSI. Standard conveyor dimensions include a length of 72", height of 36", and width of 4 1/2", driven by a 1/10 HP AC geared motor. Serial number: P-1221.

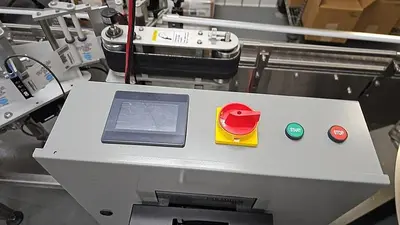

Constructed of stainless steel and equipped with threaded leveler legs. Includes touchscreen controller. With electrical specifications of 120 Volts and 60 Hz. Last used in food application.
Stock Number: C745459
Manufacturer: Inline Packaging Systems
Model: 700VS
Serial Number: P-1221
Capacity: 100 Labels/Minute
Label Height: 1" to 4.5"
Label Width (Length): 1" to 14" Long
Type: Wraparound Labeler
Previous Use: Food Packaging
Basis: FOB
