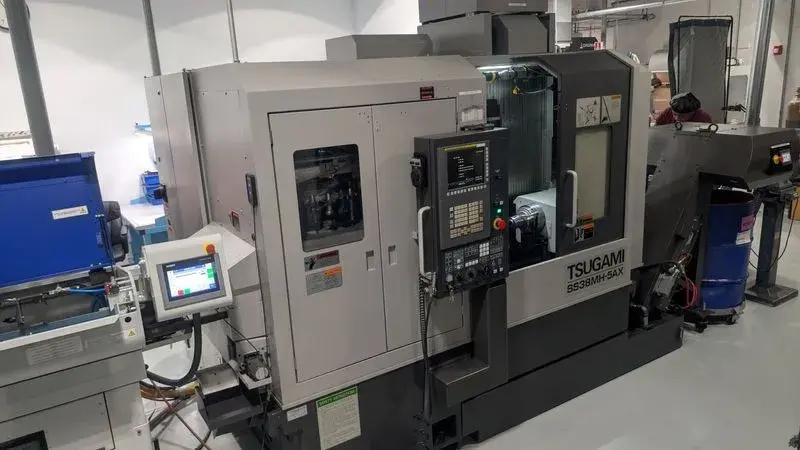

USED 2019 TSUGAMI SS38MH-5AX

General Specifications:
Number of Axes: 8 (X1, Y1, Z1, A1, X2, Y2, Z2, B1) + C1/C2 Spindle Indexing
Bar Capacity: 1.5"
Spindle Speed: 7,000 RPM
Max Turning Length: 11.8"
Bar Capacity: Ø8 – Ø38 mm
Max Machining Length (Guide-Bushless): 100mm
Max Machining Length (Guide Bushing): 300 mm

Spindle:
Main Spindle: 7,000 RPM
Back Spindle: 7,000 RPM
B-Axis Tool Spindle: 20,000 RPM
Tool Interface: CAPTO C4 (Dual Contact)
B-Axis Range: -15° to 195°

Tooling:
Total Tool Capacity: 50
ATC Magazine: 40
Back Tool Post: 10 Positions (5 Fixed / 5 Live Rotary)
Back Rotary Tool Speed: 6,000 RPM
Rapid Traverse: 32 m/min
