USED MAX-ROLL MACHINERY INT. LTD 20000
Overview

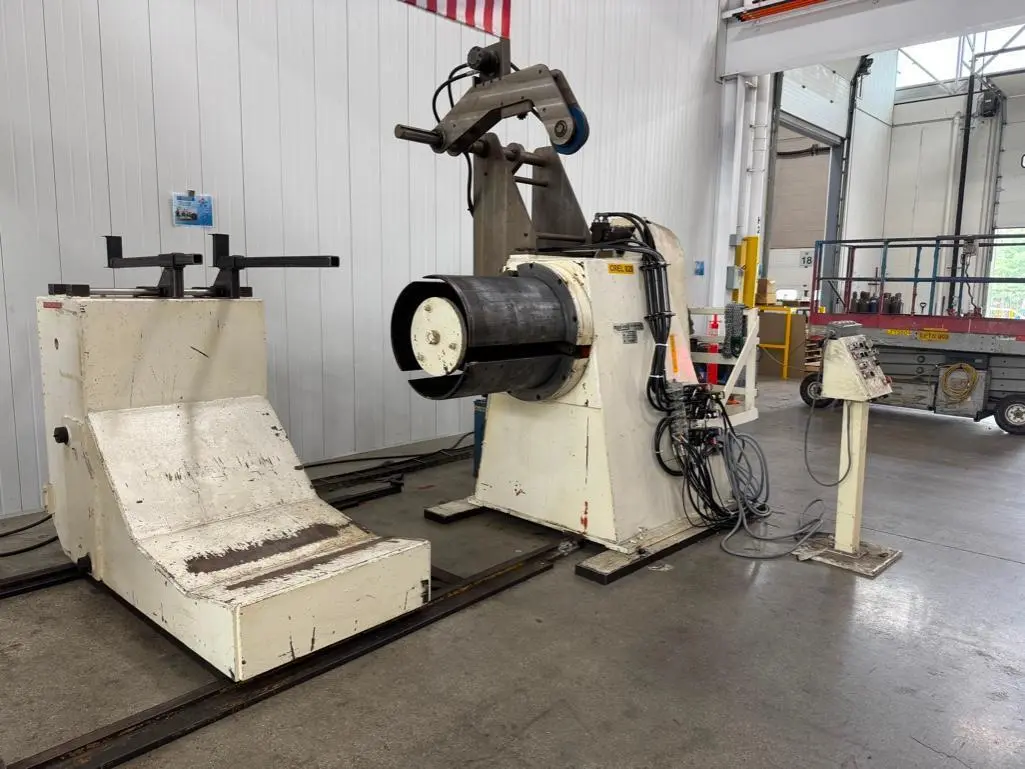

20,000 LB MAX-ROLL MACHINERY INT. LTD UNCOILER & COIL CAR Hydraulic Expansion & Hold Down Arm - 108” Car Travel - 72” O.D. Coil - 10 HP Hydraulics
Specs
20000 LB MAX-ROLL MACHINERY INT. LTD. UNCOILER
& COIL CAR
EQUIPPED WITH:
PLC Control
Hydraulic Expansion
Forward/Reverse Rotation
Hold-Down Arm
CATALOG SPECIFICATIONS:
Coil Weight Capacity, Rated 20000 LBS
Mandrel Width 28”
Coil I.D., Range 19” to 24”
Coil O.D. Over Coil Car, Maximum 72”
Distance Coil Car to Center-Line Mandrel 37”
Distance Floor to Center-Line Mandrel 49”
Coil Car Platform 36”
Coil Car Lift Range 21”
Coil Car Travel 108”
Coil Car Collapsed Height 12”
Hydraulic Motor Horsepower 10 HP
Overall Uncoiler Dimensions, Approximately 108” x 70”
Overall System Dimensions, Approximately 200” x 100”
Overall Height, Approximately 106”
Weight, Approximately 10000 LBS
F.O.B. ON WAY IN
