Stainless Steel 2,000 Gallon Vertical 150 PSI Pressure Tank, 304L S/St #S745292
Overview
Description

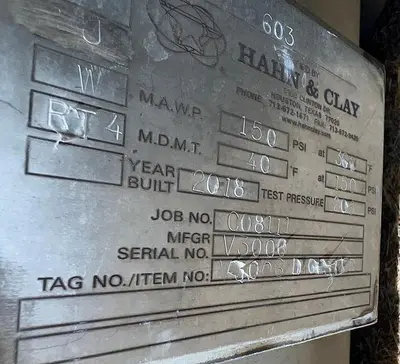

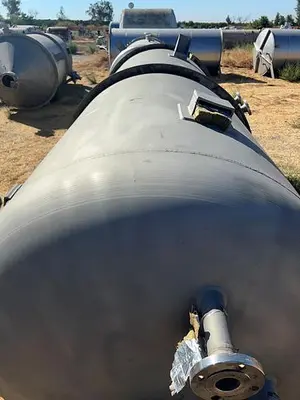

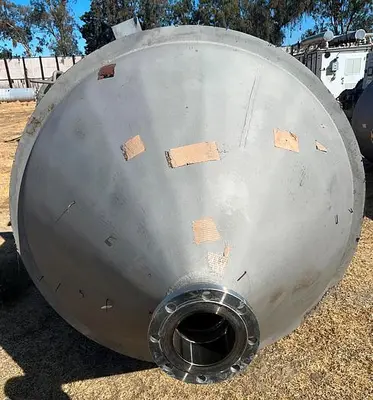

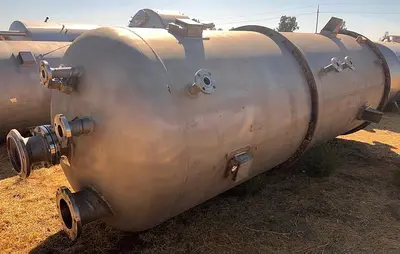

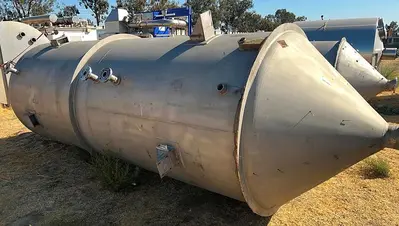

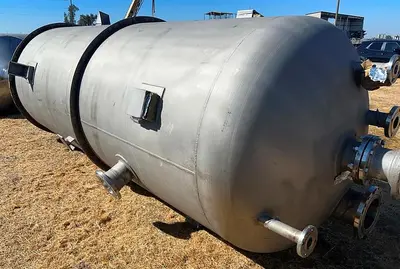

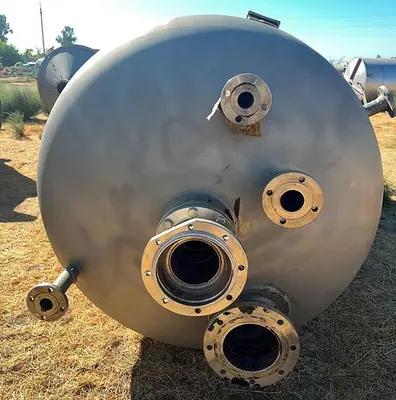

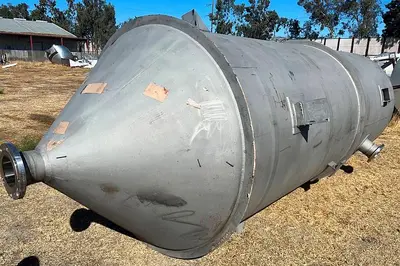

Stainless steel 2,000 gallon Pressure rated tank, measures 5' diameter X 12' straight side with dish top and cone bottom, 304L stainless steel construction previously mezzanine mounted. Vessel is vertical design with dish top and approximately 30-degree cone bottom. Includes 6" diameter center bottom on cone bottom, (1) 6" and (6) 2" openings along straight side, and (1) 8", (1) 6", (1) 3" and (2) 2" flange connections in top head. Rated for 150 PSI at 366 degrees Fahrenheit., MDMT (minimum design metal temperature) of 40 degrees F. @ 150 PSI. Job# CO8111, serial number V3006. New in 2018. Certified by Hahn & Clay (Houston, TX) ASME code rated, National board number 603. Designed as digester tank for making probiotics.
Specifications
Stock Number: S745292
Manufacturer: Hahn & Clay
Year: 2019
Gallons: 2000
Materials of Construction: Stainless Steel
Previous Use: Making Probiotics
Tank Dimensions: 5' Diameter X 12' straight side
Type: Vertical Pressure Vessel
National Board Number: 603
Basis: FOB
