USED 2018 HAHN & CLAY 2000 GAL
Overview
Description

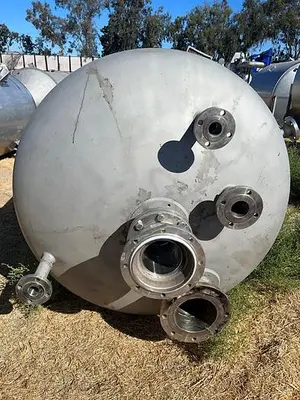

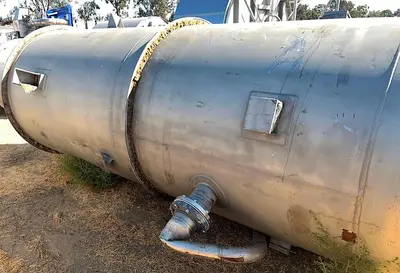

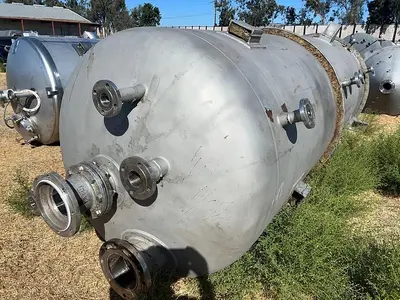

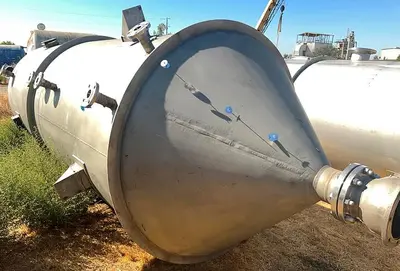

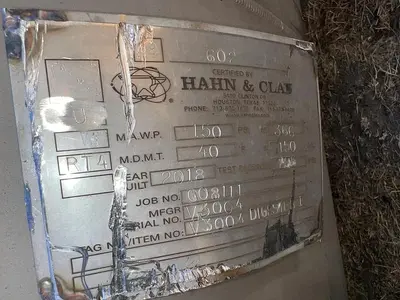

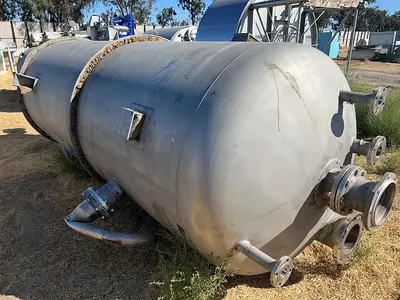

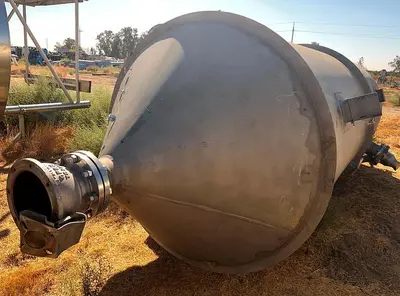

Stainless steel 2,000 gallon Pressure rated tank, measures 5' diameter X 12' straight side with dish top and cone bottom, 304L stainless steel construction previously mezzanine mounted. Vessel is vertical design with dish top and approximately 30-degree cone bottom. Includes 6" diameter center bottom on cone bottom, (1) 6" and (5) 2" openings along straight side, and (1) 8", (1) 6", (1) 3" and (2) 3" flange connections in top head. Rated for 150 PSI at 366 degrees Fahrenheit., MDMT (minimum design metal temperature) of 40 degrees F. @ 150 PSI. Job# CO8111, serial number V3004. New in 2018. Certified by Hahn & Clay (Houston, TX) ASME code rated, National board number 602. Designed as digester tank for making probiotics.
Specifications
Stock Number: S745288
Manufacturer: Hahn & Clay
Model: 2000 GAL
Year: 2018
Gallons: 2000
Materials of Construction: Stainless Steel
Previous Use: Making Probiotics
Tank Dimensions: 5' Diameter X 12' straight side
Type: Vertical Pressure Vessel
National Board Number: 602
Basis: FOB
