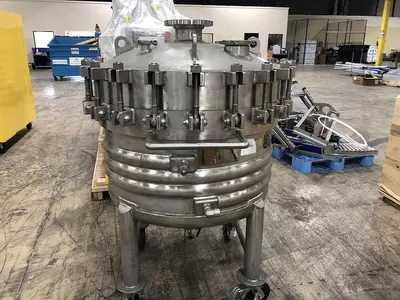

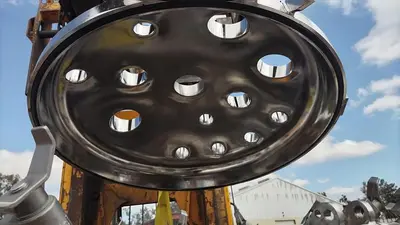

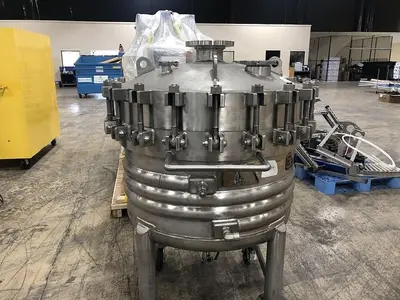

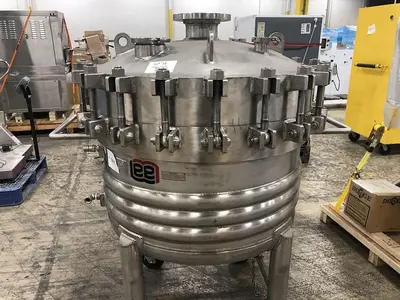

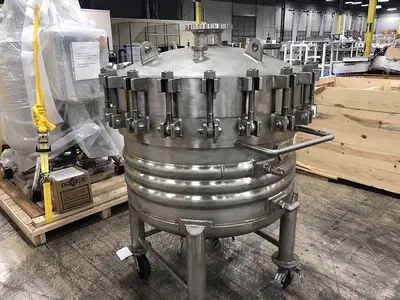

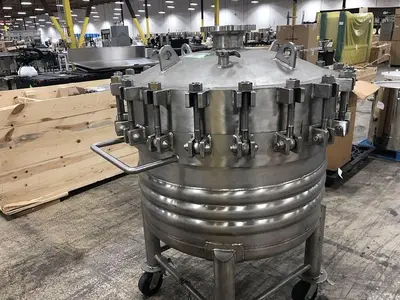

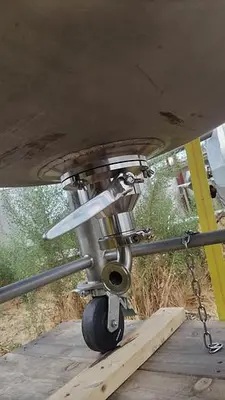

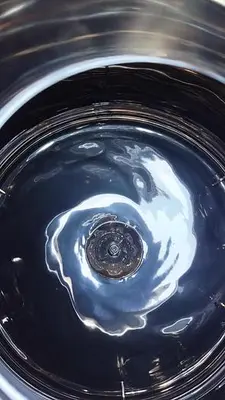

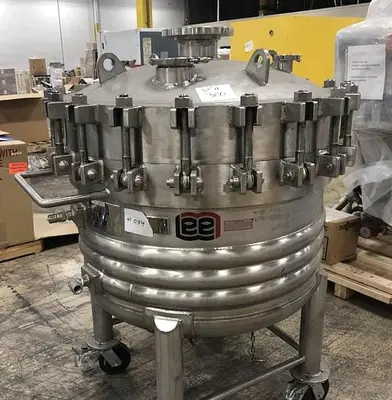

Lee Industries 110-Gallon Stainless Steel Jacketed Reactor Vessel, model 110 U, vessel measures 36" diameter x 30" high, 304 stainless steel. Rated for a maximum allowable working pressure (MAWP) of 150 PSI Full Vacuum at 250 degrees Fahrenheit. The minimum design metal temperature (MDMT) is rated for -20 degrees Fahrenheit at 150 PSI. Includes a Uniflow coil jacket, rated for 150 PSI at 366 degrees Fahrenheit, MDMT of -20 degrees Fahrenheit at 150 PSI. ASME Rated. Dish bottom with center bottom outlet. Mounted on legs with casters. Serial number 76678-2-1. National Board number 12642. Top head has 5" flange center top opening for agitator, (2) 1", (1) 2", and (1) 4" inlets. Top head is removable with bolted clamps and lifting eyes. Bottom head includes 2" diameter center bottom outlet. Previously used at pharmaceutical operation. New in 2013.
Stock Number: S745277
Manufacturer: Lee Industries
Model: 110 U
Year: 2013

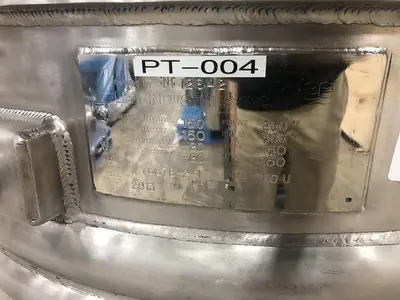

Serial Number: 76678-2-1
Gallons: 110
Materials of Construction: 304 Stainless Steel
Jacket Pressure: 150 PSI @ 366º F
Internal Pressure: 150 PSI @ 250º F
Previous Use: Pharmaceutical Processing
National Board Number: 12642
Basis: FOB
