USED 2019 SHOPSABRE PRO 408

Working Area: 5′ X 8′
X-Axis: 60″
Y-Axis: 100″
Z-Axis Travel: 16″
Gantry Clearance: 12″
Spindle Motor: 4 HP HSD
Maximum Spindle Speed: 18,000 RPM
Spindle Collet: ER25
Rapid Traverse: 1,200 IPM
Cutting Speed: Up To 800 IPM
Drive Motors: Digital Brushless AC Servo
Drive System: Ball Screw X And Z, Dual Ball Screw Y
Linear Guides: 25 MM Precision Linear Guide Rails
Positional Repeatability: +/- 0.001″
Vacuum Zones: 4
Open Flow: 570 CFM
Maximum Vacuum: 10.69″ Hg
Power: 220V, Single Phase
Amperage: 30 Amp
Machine Footprint: Approximately 80″ X 135″ X 95″
Machine Weight: Approximately 3,200-3,600 Lbs.
Equipped With:

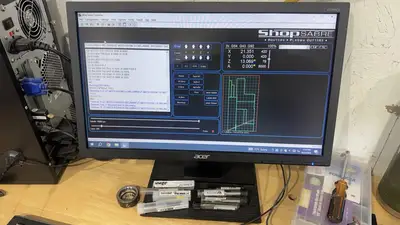

ShopSabre WINCNC Industrial Control
Vectric VCarve Pro CAD/CAM Software
4 HP HSD Manual-Change Spindle
4-Zone F4 Vacuum System
MDF T-Slot Table

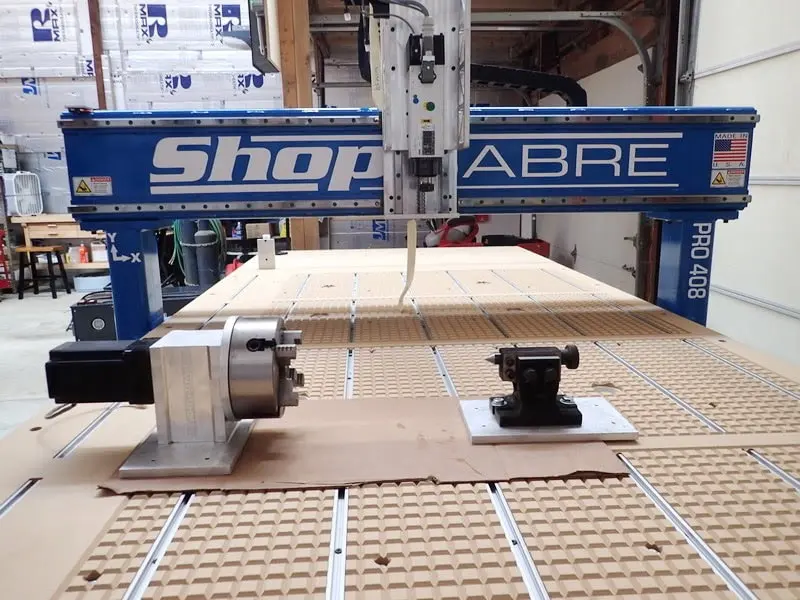

4th Axis Indexing System With 4-Jaw Chuck

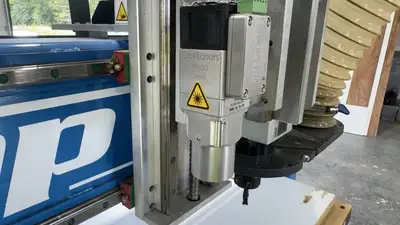

ShopSabre OptLaser Marking And Engraving Attachment
Electronic Z Setter
Automatic Tool Measure Switch
Wireless Handheld Pendant With Jog Wheel
Pop-Up Table Reference Pins
Quick-Release Dust Skirt
ER25 Collets And Collet Wrenches
Assorted Router Tooling
Manuals And Documentation
