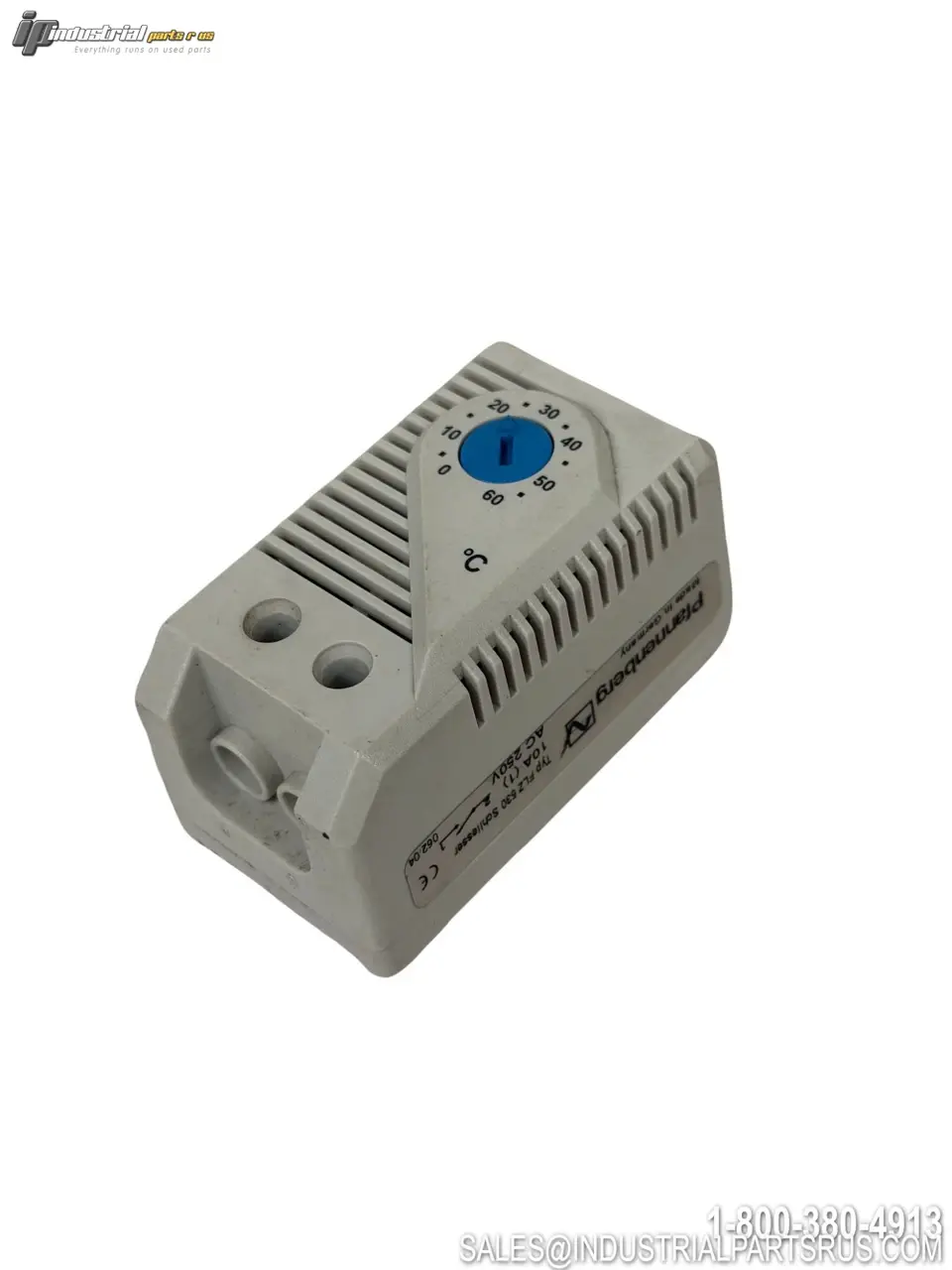

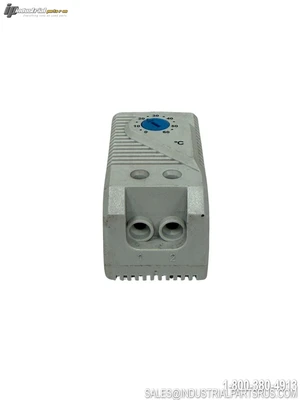

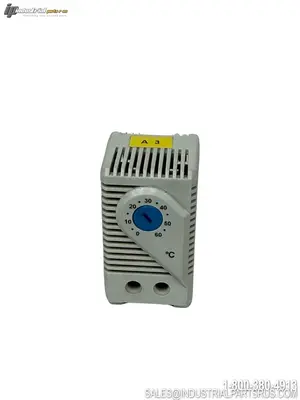

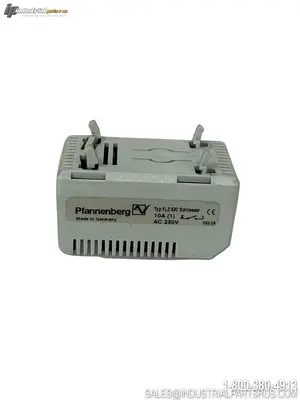

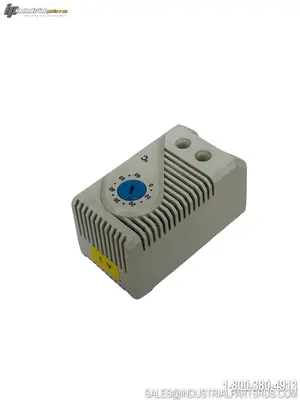

USED PFANNENBERG FLZ 530

The Pfannenberg FLZ 530 is a compact bimetal thermostat designed for temperature control inside electrical control cabinets. Featuring a normally open (N.O.) spring contact, it is used in combination with control cabinet heaters and Filterfans® to regulate internal cabinet temperature and reduce energy consumption. The unit mounts directly or snaps onto a standard DIN rail without tools using the included snap fastener, and is UL Recognized to NITW2 and NITW8 standards for easy integration into UL 508A panels.
Specification
Value
Brand
Pfannenberg
Model / Part Number
FLZ 530
Article Number (°C)
17121000000
Article Number (°F)
17121000010
Type
Temperature Controller / Thermostat
Contact Type
N.O. (Normally Open) with Spring Contact — Form A
Temperature Range
0°C to +60°C (32°F to 140°F)
Switching Point Tolerance
±4 K
Switching Temperature Difference
<7 K
Max Switching Voltage (AC, resistive)
100–250V AC / 5A (resistive); 120V AC / 15A (resistive)
Max Switching Current (inductive, cos φ=0.6)
2A
Max Switching Power (DC)
30W
Rated Voltage
100–250V AC (120–240VAC)
Rated Current
10A
Probe Type
Bimetal
Operating Temperature Range
-20°C to +80°C (-4°F to +179°F)
IP Rating / System of Protection
IP20
Housing Material
ABS High Temperature Plastic
Dimensions (L x W x H)
40mm x 36mm x 72mm
Weight
50g
Mounting Type
DIN Rail or Direct Mount (tool-free snap fastener)
Temperature Scale
Dual scale: °C and °F (universal dial)
UL Recognition
NITW2 and NITW8 (UL 508A Compatible)
Compatible Accessories
Hygrostat (17207000000), Internal Enclosure Fan (18110000000)
Series
FLZ 510–530
We warranty all items for 30 days from date of purchase.
