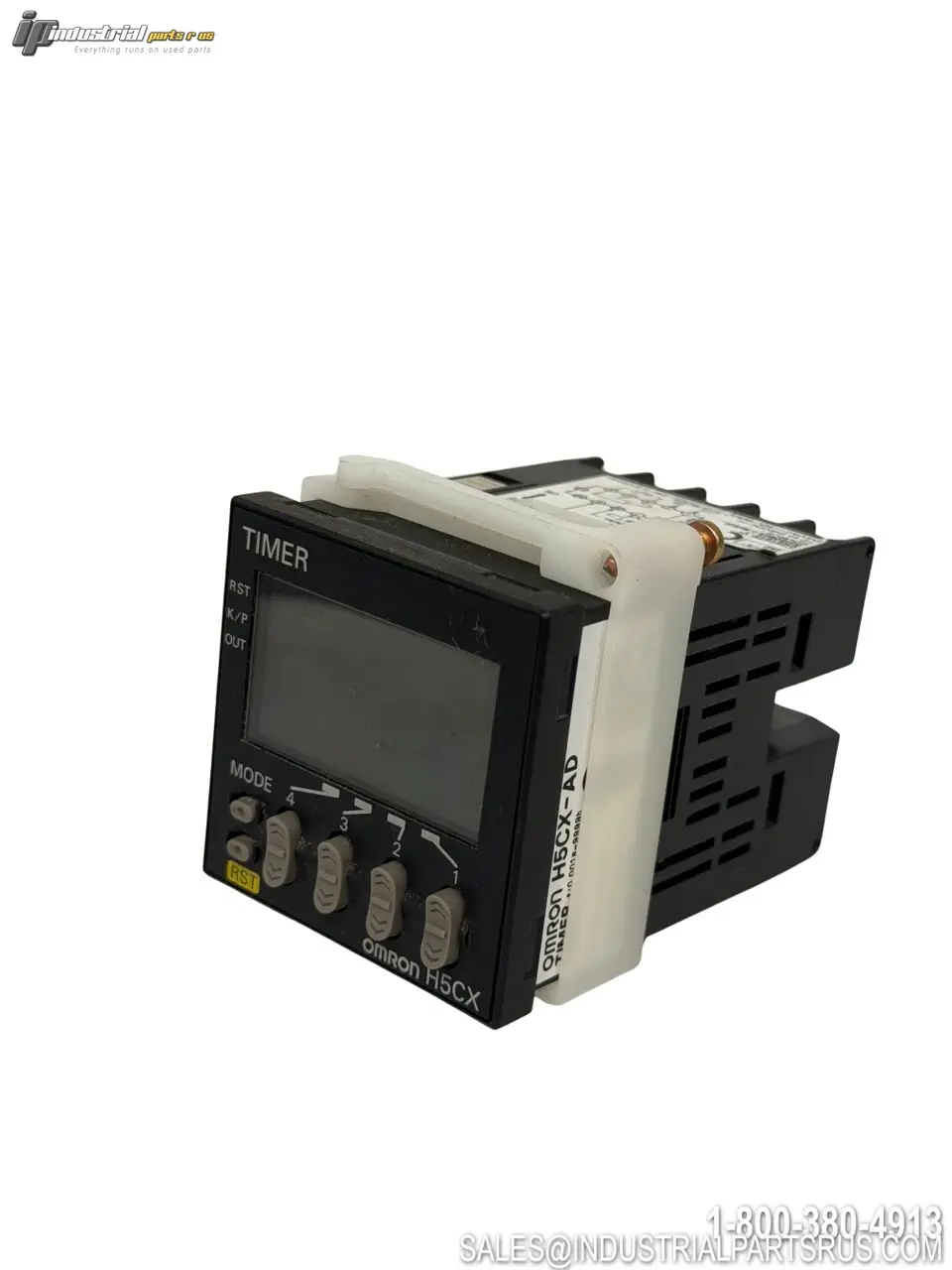

USED OMRON H5CX-AD

The Omron H5CX-AD is a 1/16 DIN (48×48 mm) multifunction digital timer from the H5CX series, designed for panel-mount installation. It accepts a supply voltage of 24 VAC (50/60 Hz) or 12 to 24 VDC and provides a single-stage SPDT relay output rated at 5A/250VAC. The timer features a backlit negative-transmissive 7-segment LCD display with selectable PV color (green/orange/red), EEPROM memory backup, and up to 15 selectable operating modes covering a time range from 0.001 seconds to 9999 hours.
Specification
Value
Brand
Omron
Model / Part Number
H5CX-AD
Product Series
H5CX-N
Product Type
Multifunction Digital Timer
Rated Supply Voltage (AC)
24 VAC (50/60 Hz)
Rated Supply Voltage (DC)
12 to 24 VDC (permissible ripple: 20% p-p max.)
Operating Voltage Range
85% to 110% of rated (90% to 110% at 12–24 VDC)
Power Consumption
Approx. 5.1 VA at 26.4 VAC; approx. 2.4 W at 12 VDC
Output Type
SPDT (Time-limit contact) + NPN open collector, 100 mA at 30 VDC
Contact Rating (AC)
5A at 250 VAC resistive load
Contact Rating (Motor Load)
1/4 HP, 5A, 120 VAC; 1/3 HP, 5A, 240 VAC (NEMA B300 Pilot Duty)
Number of Timer Modes
15 (11 standard + 4 twin/flicker modes)
Timer Modes
Signal-ON Delay I & II, Power-ON Delay I & II, Repeat Cycle 1 & 2, Signal-OFF Delay, Interval, Cumulative, ON/OFF Flicker, Stopwatch, Flicker-OFF/ON Start 1 & 2
Time Range
0.001 s to 9999 h (10 selectable ranges)
Time Ranges Available
9.999 s, 99.99 s, 999.9 s, 9999 s, 99 min 59 s, 999.9 min, 9999 min, 99 h 59 min, 999.9 h, 9999 h
Setting Stages
1-stage (single setpoint)
Display
7-segment negative transmissive LCD, 4 digits, 2 rows
PV Character Height
12 mm (green/orange/red selectable backlight)
SV Character Height
6 mm (green backlight)
Input Method
No-voltage (NPN) / Voltage (PNP) input — selectable
Input Signal Width
1 ms or 20 ms (Start, Gate, Reset)
Memory
EEPROM (non-volatile, up to 100,000 re-writes)
Reset Types
Power reset, External reset, Manual reset, Automatic reset
Panel Cutout Size (DIN)
48 mm H × 48 mm W (1/16 DIN)
Depth (Body)
64 mm (2.52 in) behind panel
Terminal / Wiring Type
Screw terminals (finger-safe)
Mounting Type
Panel mount (flush)
Degree of Protection (Front)
IP66 / NEMA 4X / UL Type 4X (with Y92S-29 packing)
Timing Accuracy — Power-ON Start
±0.01% ±50 ms max.
Timing Accuracy — Signal Start
±0.005% ±30 ms max.
Weight (Approx.)
Approx. 115 g
Safety / Approvals
UL, CSA, CE (EMC EN 61326)
Key Protection
Key-protect switch (front panel lockout)
DIP Switch Configuration
Yes — for basic operation settings
Obsolescence Status
Obsolete / Discontinued (replaced by H5CC-AD)
We warranty all items for 30 days from date of purchase.
