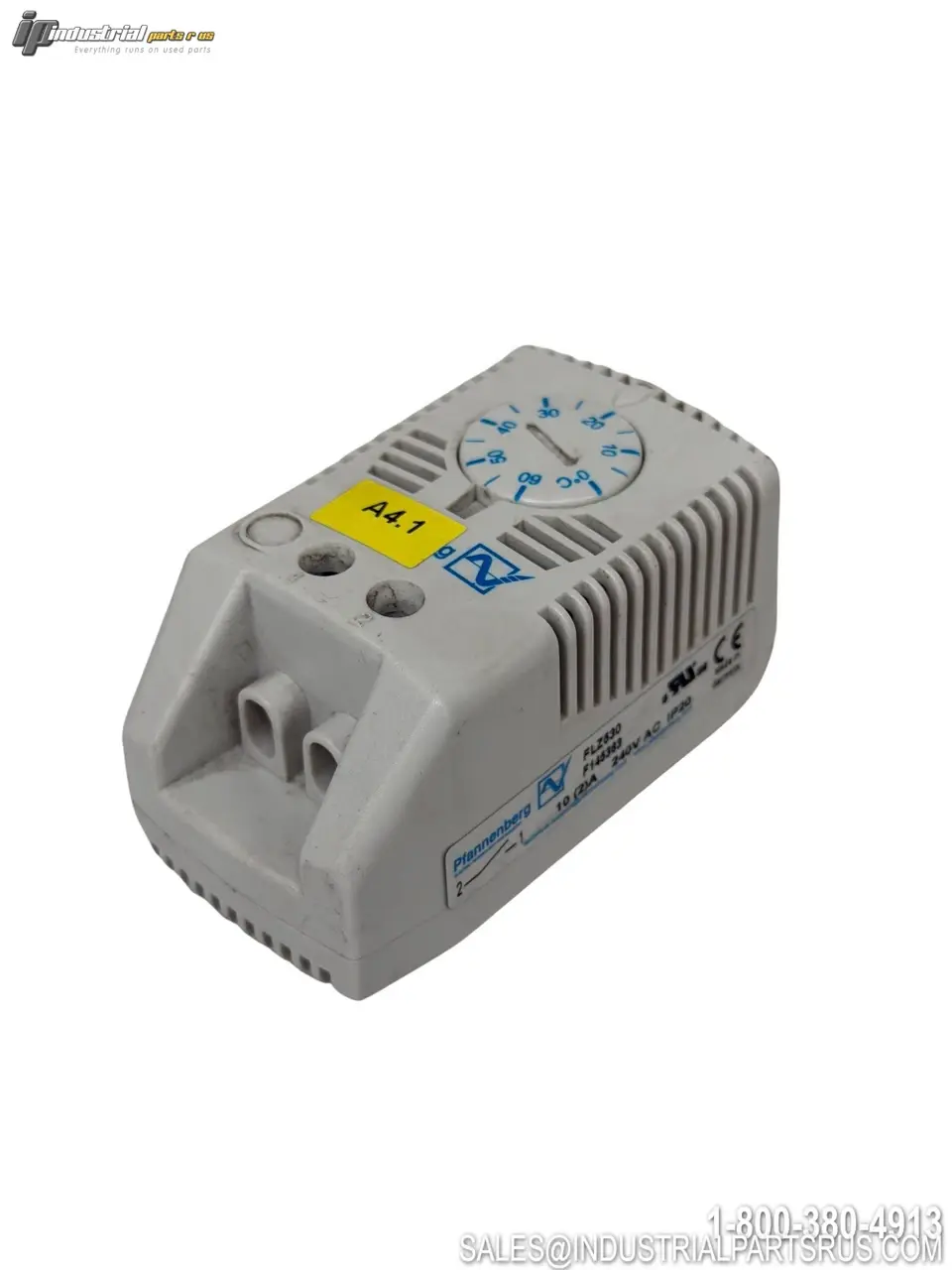

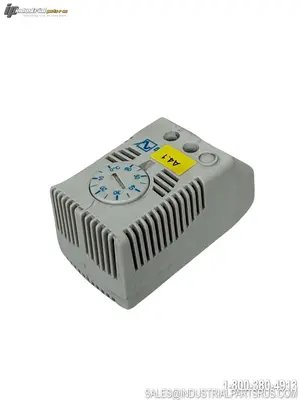

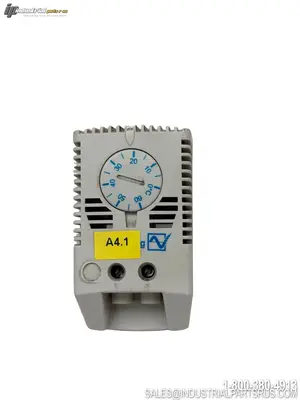

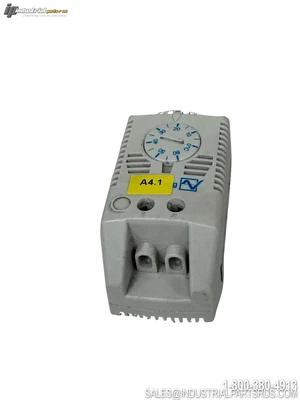

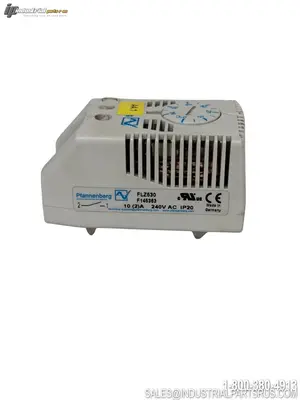

USED PFANNENBERG FLZ 530

The Pfannenberg FLZ 530 is a compact bimetal thermostat designed for temperature control inside electrical control cabinets. It features a normally open (N.O.) spring contact and is used in combination with control cabinet heaters and Filterfans® to regulate internal enclosure temperature. The unit mounts directly or snaps onto a standard DIN rail without tools and features a universal temperature control dial with both Fahrenheit and Celsius ranges.
Specification
Value
Brand
Pfannenberg
Model / Part Number
FLZ 530
Article Number (°C range)
17121000000
Article Number (°F range)
17121000010
Product Type
Thermostat / Temperature Controller
Contact Type
N.O. (Normally Open) with spring contact
Temperature Range
0°C – 60°C (32°F – 140°F)
Switching Point Tolerance
±4 K
Switching Temperature Difference
<7 K
Max Switching Current (Resistive) – AC
100–250V AC / 5A (resistive); 120V AC / 15A (resistive)
Max Switching Current (Inductive, cos φ=0.6)
2A
Max Switching Power (DC)
30 W
Voltage Rating
100–250V AC
Amperage
10A
Probe Type
Bimetal
Enclosure / Protection Rating
IP20
Operating Temperature Range
-20°C to +80°C (-4°F to +179°F)
Housing Material
ABS high temperature plastic
Mounting Type
DIN rail (snap-on, tool-free) or direct mount
Dimensions (L x W x H)
40 mm x 36 mm x 72 mm
Weight
50 g
Temperature Scale
Dual (°F and °C)
UL Recognition
NITW2 and NITW8 (UL 508A panel compatible)
Compatible Accessories
Hygrostat (17207000000), Internal Enclosure Fan (18110000000)
Series
FLZ 510–530
We warranty all items for 30 days from date of purchase.
