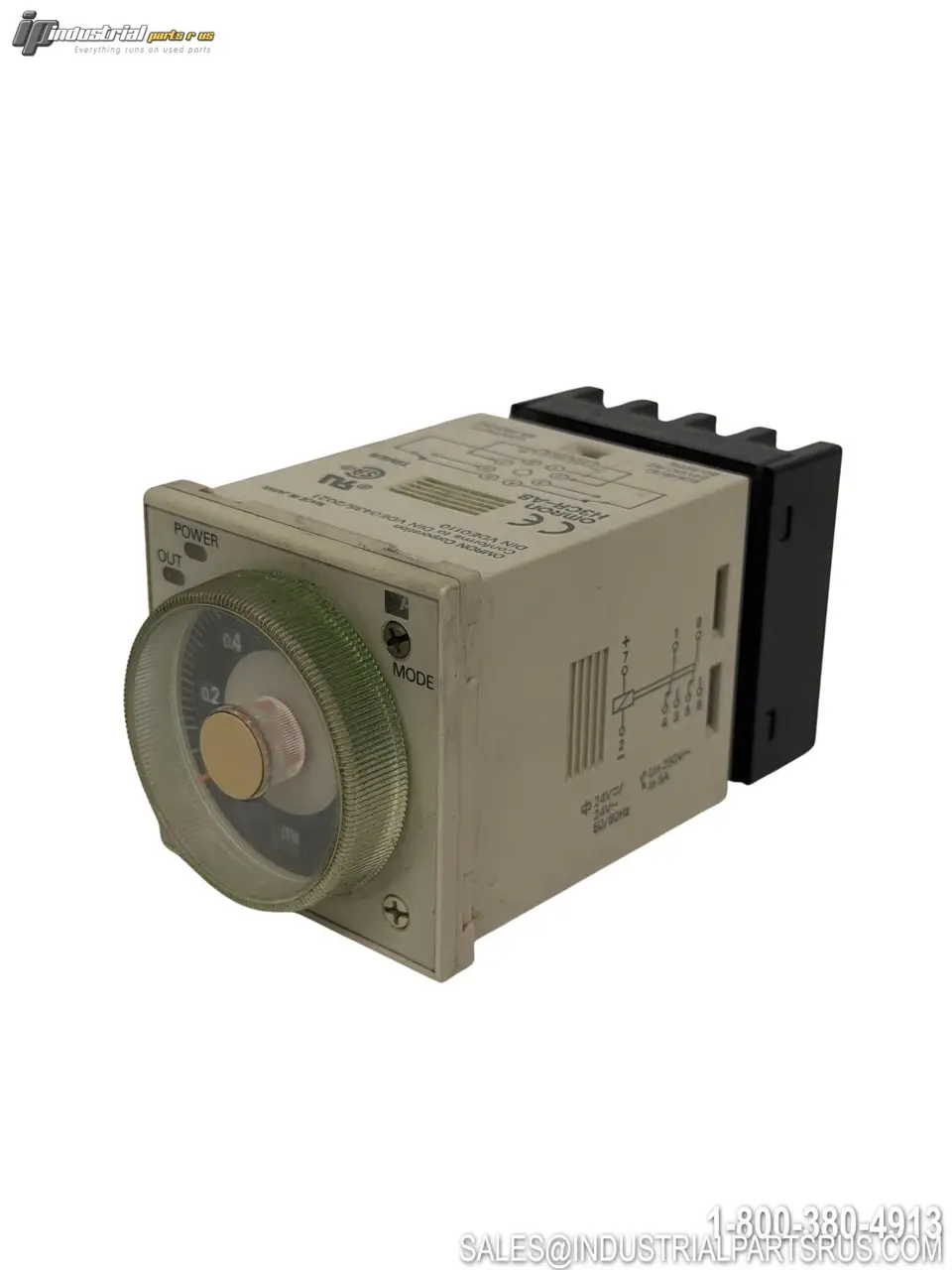

USED OMRON H3CR-A8

The Omron H3CR-A8 is a solid-state multifunction timer in a compact 1/16 DIN (48 x 48 mm) plug-in housing. It features an 8-pin terminal configuration with DPDT (double-pole, double-throw) relay output rated at 5A, supporting four selectable operating modes: ON-delay, Repeat Cycle ON, Interval, and One-Shot delay. The H3CR-A8 accepts a wide supply voltage range of 100–240 VAC or 100–125 VDC, covering nine field-selectable time ranges spanning 0.05 seconds to 300 hours with high repeat accuracy and reduced power consumption.
Specification
Value
Brand
Omron
Model / Part Number
H3CR-A8
Series
H3CR-A
Product Type
Solid-State Multifunction Timer
Supply Voltage (AC)
100 to 240 VAC, 50/60 Hz
Supply Voltage (DC)
100 to 125 VDC
Operating Voltage Range (AC)
85% to 110% of rated supply voltage
Operating Voltage Range (DC)
90% to 110% of rated supply voltage
Power Consumption (AC)
10 VA max (AC); 1.5 VA (AC/DC mode)
Power Consumption (DC)
1.3 W
Output Contact Type
DPDT (Double-Pole Double-Throw)
Contact Rating (Max Load)
5A, 250 VAC (resistive, p.f.=1)
Minimum Load
10 mA, 5 VDC
Number of Pins / Terminals
8-pin plug-in
Timing Range
0.05 seconds to 300 hours
Number of Timing Ranges
9
Operating Modes
ON-delay (A), Repeat Cycle ON (B), Interval (E), One-Shot/Flicker (J) — 4 modes (8-pin)
No Input Function
H3CR-A8 does not have external start/reset/gate input terminals
Panel Cutout Size
45 mm H x 45 mm W
Housing / DIN Size
1/16 DIN — 48 mm x 48 mm
Panel Depth (with socket)
80 mm max
Mounting Direction
No restrictions
Compatible Sockets
PF083A, P2CF-08, PL08
Connection / Termination
Plug-in
Repeat Accuracy
±0.5% FS max (±1% FS for ranges ≤ 1.2 s)
Influence of Temperature
±1% FS max
Dielectric Strength
2,000 VAC, 50/60 Hz for 1 min (between power and output terminals)
Impulse Withstand Voltage
3 kV (between power terminals) for 100–240 VAC/100–125 VDC
Mechanical Life
20,000,000 operations min (no load, 1,800 ops/hour)
Approx. Weight
Approx. 90 g
Approvals / Certifications
UL, CSA, NK (Lloyds), LR, EN 61812-1, CE, IEC 60664-1
LED Indication
Power ON and output contact status
Time Setting Method
Front-panel rotary dial (field-selectable time range and mode)
