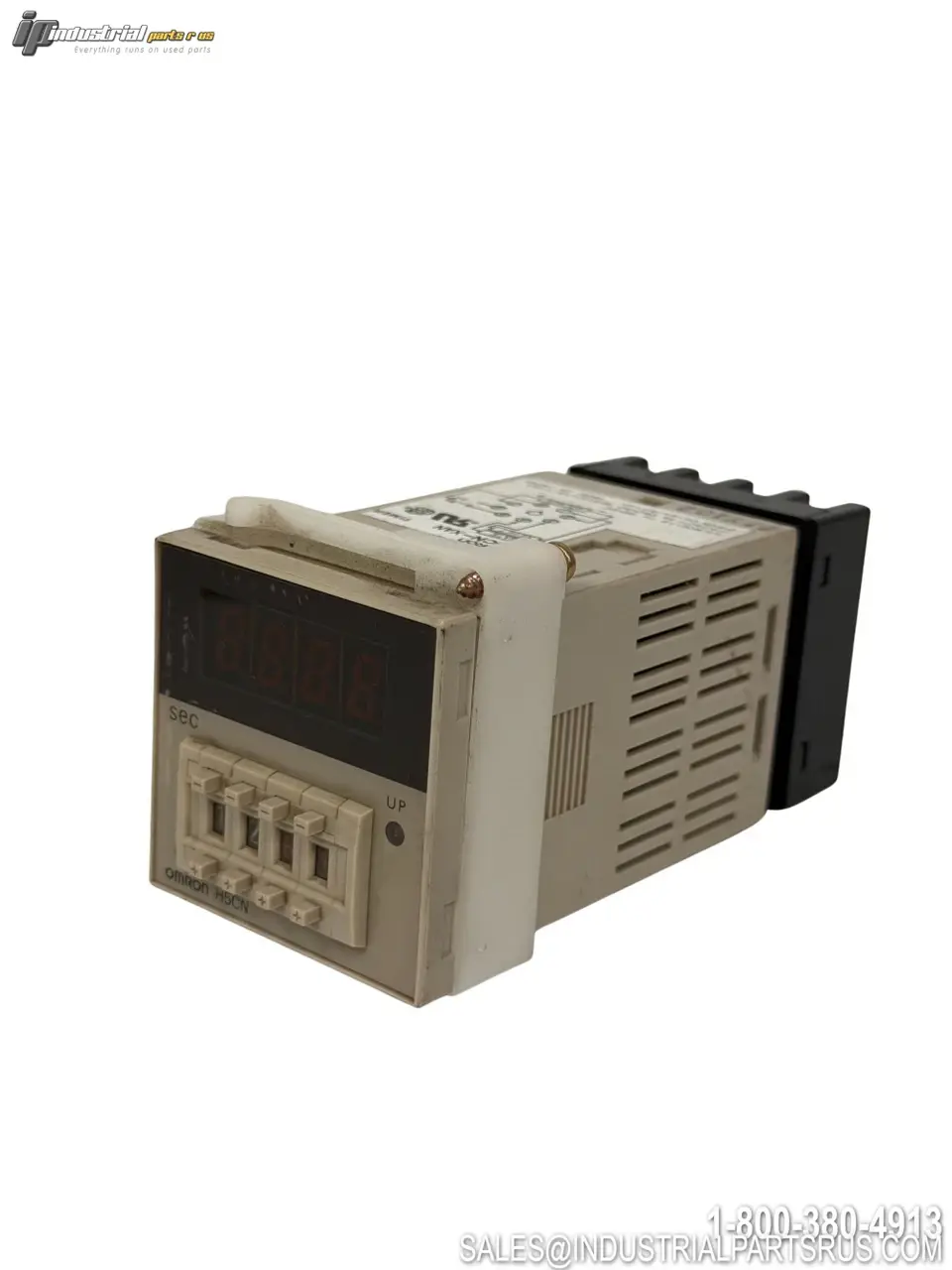

USED OMRON H5CN-XAN

The Omron H5CN-XAN is a miniature 1/16 DIN (48×48mm) quartz digital timer from the H5CN series, designed for Power ON-delay (mode N) operation with a count-UP display that increments from zero to the set time. It features a single SPDT contact output rated at 3A @ 250VAC and accepts both AC (100–240VAC) and DC (12–48VDC) supply voltage. The H5CN-XAN is socketable via an 8-pin round socket (P2CF-08 or P3G-08 sold separately) and supports both flush and surface panel mounting.
Specification
Value
Brand
Omron
Model / Part Number
H5CN-XAN
Series
H5CN
Product Type
Timer (Digital Quartz)
Operating Mode
Power ON-Delay (Mode N)
Time Range
0.001 to 99.99 seconds
Display Type
Count-UP (increments from 0 to set time)
Display
1 row x 4-digit, 7-segment red LEDs, 10mm character height
Output Type
Contact Output — SPDT (1 Form C), Time-limit operation
Contact Rating
3A @ 250VAC (resistive load)
Supply Voltage (AC variant)
100 to 240 VAC, 50/60 Hz
Supply Voltage (DC variant)
12 to 48 VDC (ripple 20% max.)
Supply Voltage Range
85 to 110% of rated supply voltage
Power Consumption (AC)
Approx. 12 VA at 240 VAC
Power Consumption (DC)
Approx. 2.5 W at 48 VDC
Reset Time (Min. Input Width)
0.02 s
Mounting Type
Flush or Surface panel mounting; Plug-in (socketable)
Panel Size / DIN Format
1/16 DIN — 48 x 48 mm
Panel Cutout
45 x 45 mm
Panel Thickness
1 to 5 mm
Socket / Connection Type
8-pin round socket (P2CF-08 front / P3G-08 back — sold separately)
Setting Method
1 thumbwheel switch per digit
Number of Time Ranges
1 (single range)
Color
Light gray (Munsell 5Y7/1)
Memory Backup
Not provided (see H5CN-XANM for memory backup variant)
RoHS Compliant
Yes
Certifications
UL, CSA
Compatible Sockets (Optional)
P2CF-08 (front), P3G-08 (back), Y92F-30 flush adapter
We warranty all items for 30 days from date of purchase.
