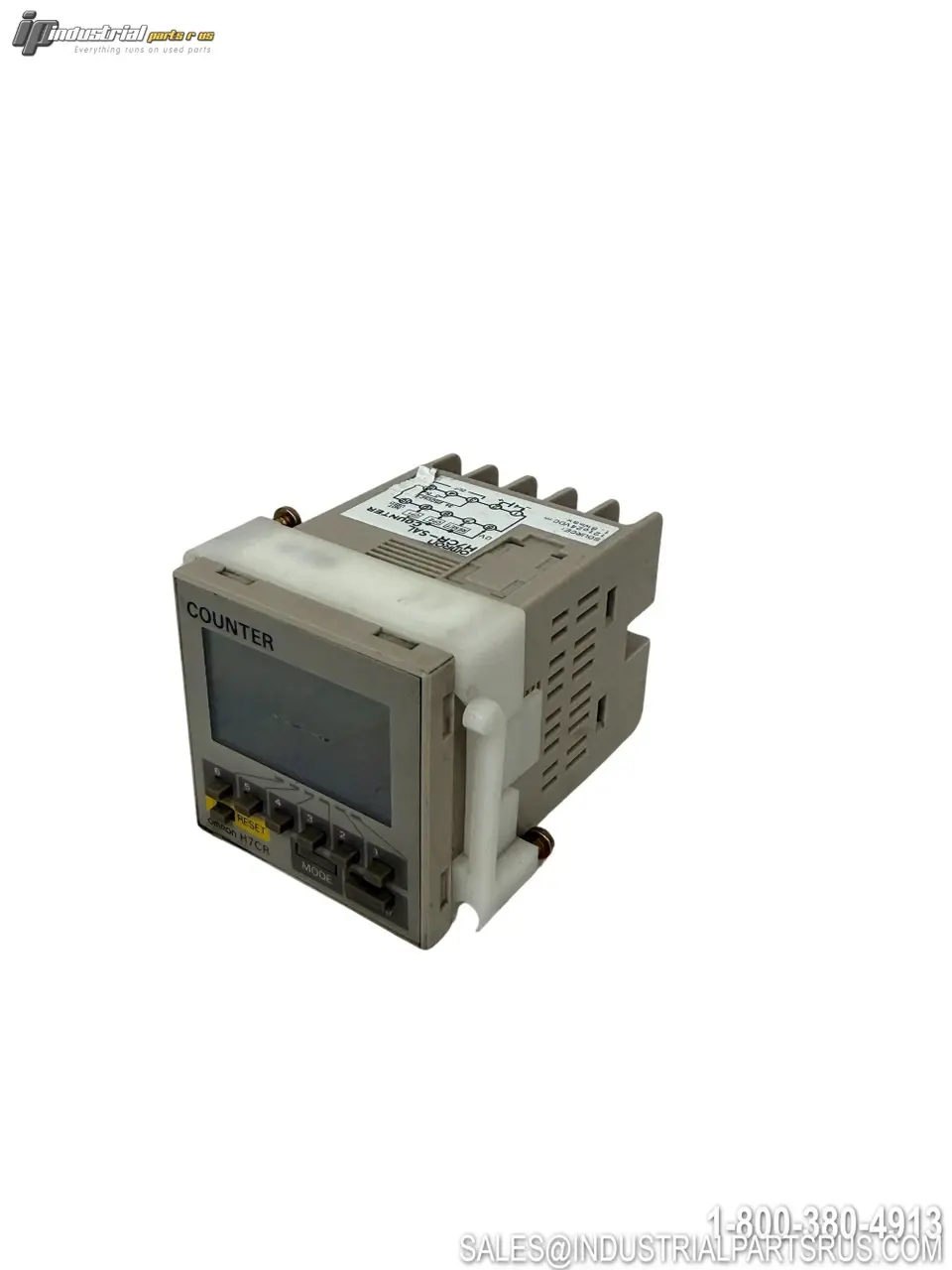

USED OMRON H7CR-SAL

The Omron H7CR-SAL is a compact 1/16 DIN (48×48mm) digital preset counter featuring a 6-digit LCD display and short-body (64mm depth) design for space-constrained panel installations. It accepts a 12–24VDC supply voltage with no-voltage (NPN) count input and provides a relay contact output rated at 3A, 250VAC. The H7CR series supports up, down, and reversible counting modes with external and manual reset, and includes non-replaceable lithium battery backup for memory retention of approximately 10 years at 20°C. Housing is constructed from Polycarbonate (PC) / ABS material, and the Y92F-30 panel mounting adaptor is included.
Specification
Value
Brand
Omron
Model / Part Number
H7CR-SAL
Product Type
Digital Preset Counter
Series
H7CR
Supply Voltage
12–24VDC
Contact Rating (Output)
3A, 250VAC
Output Type
Relay (SPST-NO contact)
Input Type
No-voltage (NPN transistor)
Display Type
6-Digit LCD (7-segment, non-backlit)
Display Range
0 to 999,999
Number of Presets
1 (Economy/Single Preset)
Max Counting Speed
30 / 1,000 / 5,000 cps (selectable)
Input Modes
Up, Down, Reversible A (command), Reversible B (individual), Reversible C (phase difference)
Output Modes
N, F
Reset System
External and manual reset
Body / Depth
Short body — 64mm deep
Panel Cutout / DIN Size
48 x 48mm (1/16 DIN)
Mounting Type
Flush panel mount
External Connections
Screw terminals
Enclosure Rating
IP54 (panel surface)
Operating Voltage Range
85% to 110% of rated voltage
Memory Backup
Approx. 10 years at 20°C (non-replaceable lithium battery)
Approvals / Standards
UL508, CSA C22.2 No.14, conforms to EN61010-1 / IEC1010-1, EMC
Approx. Weight
Approx. 120g (H7CR-S type)
Panel Mounting Adaptor
Y92F-30 (included)
We warranty all items for 30 days from date of purchase.
